Chapter4 Basic Operation of SD Manager 3
F3SG-SR
User’s Manual
Setting with SD Manager 3

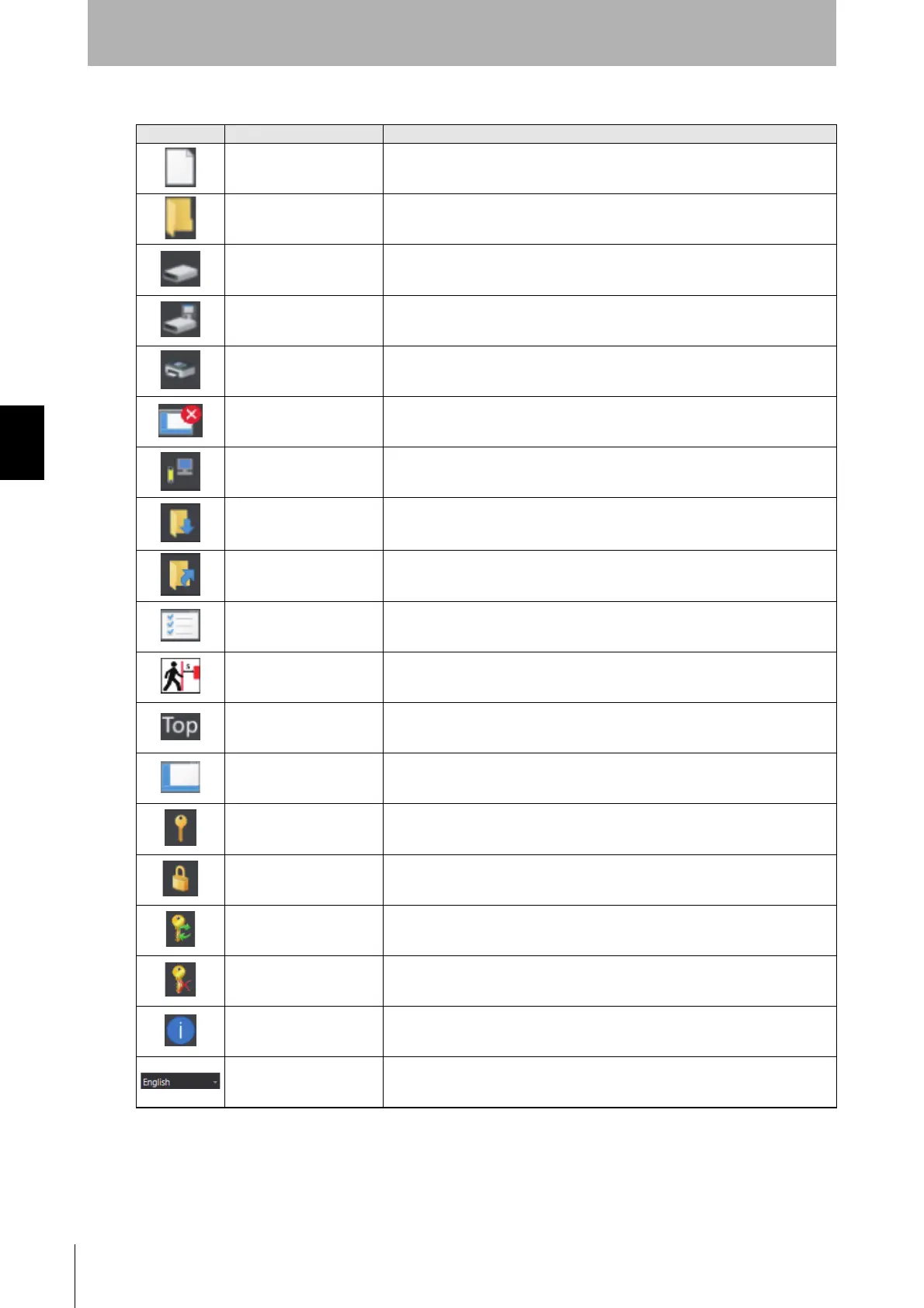

[Descriptions of buttons]
Button Function Description
New Creates a new configuration file.
This is available only when running offline.
Open Opens a configuration file.
Save Saves or overrites configuration file.
Save As Saves configuration file as another file name.
Print muting configuration Prints muting settings.
Exit Exits SD Manager 3.
Monitor Switches the operating state from [Setting state] to [Operating].
Read configuration Reads the configuration data of the Intelligent Tap.
Pressing this button switches the safety outputs to the OFF state and the
operating state to [Setting state].
Write configuration Writes the configuration data into the Intelligent Tap.
Configuration List Shows a list of parameters.
Safety distance calculation Starts the safety distance calculation screen.
Top Page Returns to the top page from each screen.
Load Default Layout Brings the changed layout back to the initial state.
Login Starts the login screen.
Logout Logs out.
Changes the access level from administrator to operator
Change Password Starts the change password screen.
Clear Password Starts the clear password screen.
About Starts the version information confirmation screen of SD Manager 3.
Select Language The operator selects a language.
Select a language used from the dropdown list.
To Next Page
