F3SG-SR
User’s Manual
Chapter4 Monitoring with SD Manager 3
Setting with SD Manager 3
E

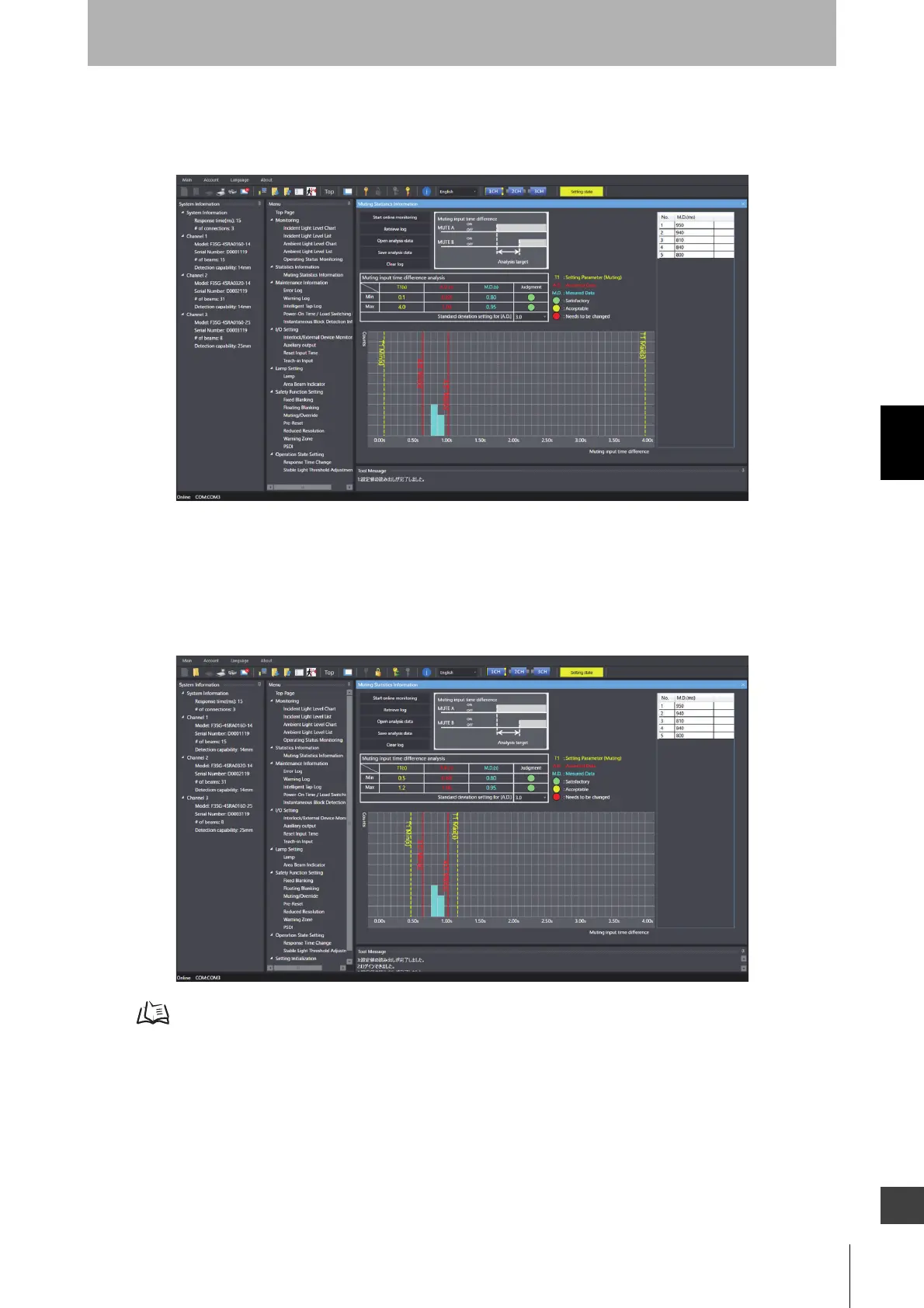

When the optimization result below is obtained as a result of the flowchart above, there is a big
difference between T1 Max and A.D. Max, and between T1 Min and A.D. Min.shown in the chart
below.
㻺㼛㼣㻘 㼏㼔㼍㼚㼓㼑 㼠㼔㼑 㼀㻝 㻹㼕㼚 㼍㼚㼐 㼀㻝 㻹㼍㼤 㼟㼑㼠㼠㼕㼚㼓㼟 㼠㼛 㻜㻚㻡 㼟 㼍㼚㼐 㻝㻚㻜㻙㻝㻚㻞 㼟 㼛㼚 㼠㼔㼑 㼙㼡㼠㼕㼚㼓 㼠㼕㼙㼑 㼕㼚㼒㼛㼞㼙㼍㼠㼕㼛㼚 㼟㼑㼠㼠㼕㼚㼓
㼟㼏㼞㼑㼑㼚㻚
8. When setup is completed, execute writing into F3SG-SR.
The deviation of T1 Min and Max from the A.D. Min and Max has been reduced, resulting in improved
safety, as shown below.
For more information on muting time information settings, refer to 4-3-4-3. Muting/Override.
