251
F3SG-SR
User’s Manual
Chapter5 Installation Considerations
Wiring and Installation
E

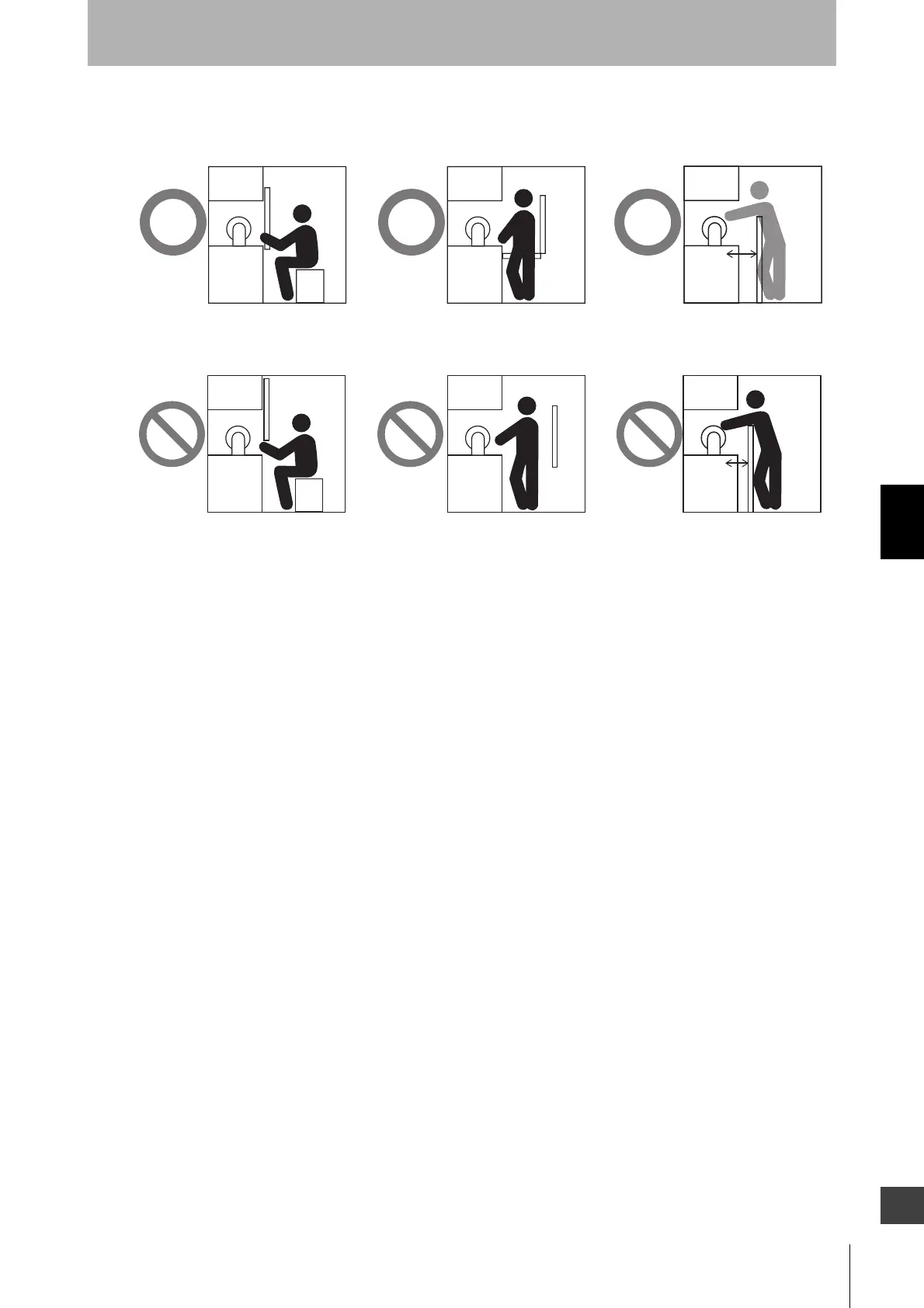

Correct installation
Incorrect installation
The hazardous zone of a machine can be reached
only by passing through the sensor's detection zone.
While working, a person is inside
the sensor's detection zone.
Safety distance reflects the possible access to the
hazardous zone by reaching over the detection zone.
It is possible to reach the hazardous zone of a machine
without passing through the sensor's detection zone.
A person is between the sensor's detection
zone and the hazardous zone of a machine.
It is possible to access the hazardous zone
by reaching over the detection zone.
