281
F3SG-SR
User’s Manual
Chapter5 Mounting
Wiring and Installation
E

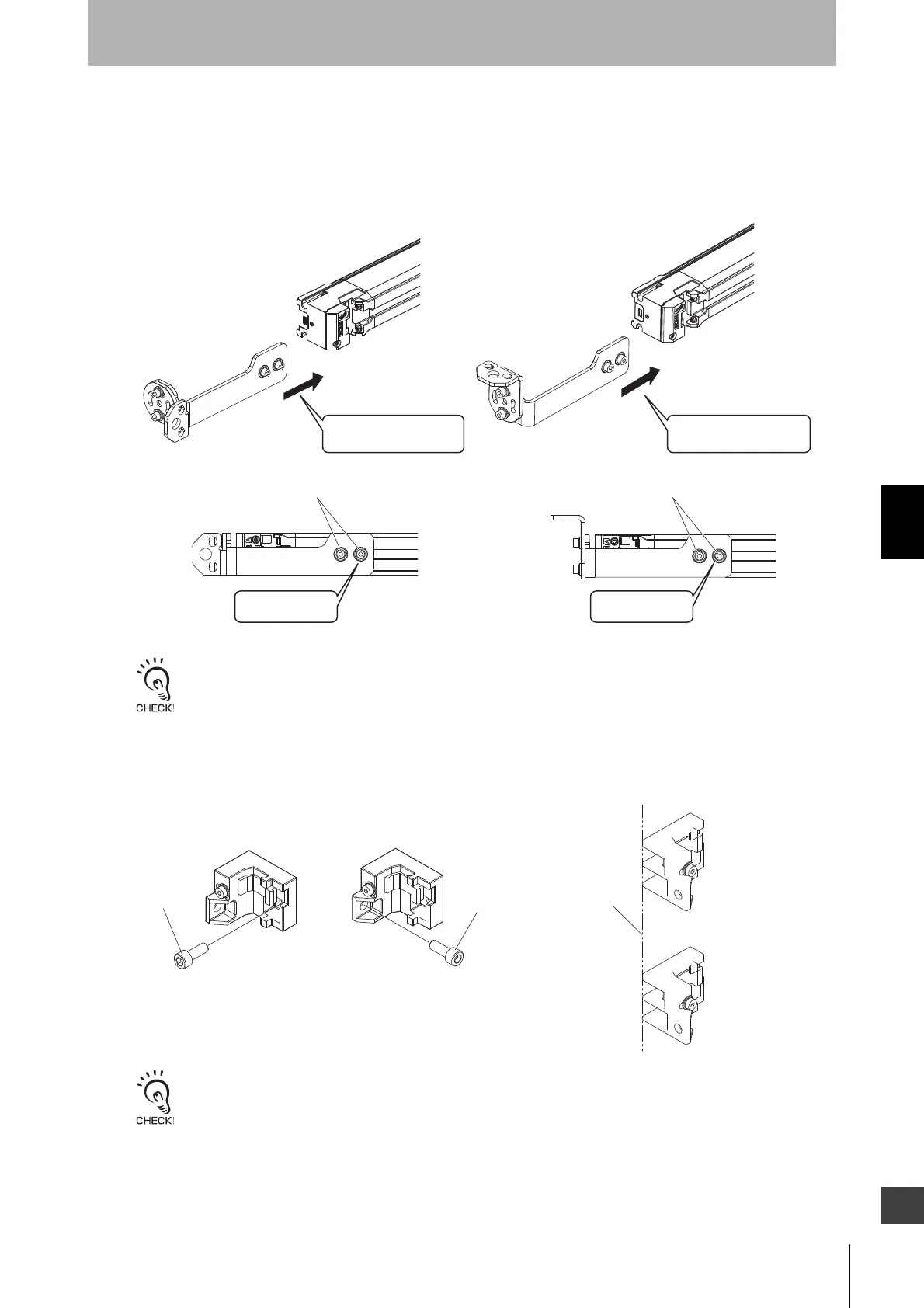

2. Slide the Top/Bottom Bracket (1) in the grooves of the sensor housing. Adjust the Top/Bottom Bracket
to the mounting position of the wall surface. Make sure to contact the whole body of the Top/Bottom
Bracket (1) with the groove of the yellow area of the housing. Securely tighten the Mounting Screws to
fix the Top/Bottom Bracket to the housing of the sensor. The recommended torque to tighten the
Mounting Screws of the Top/Bottom Bracket is 3.0 N•m. (Fig. 2)
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
3. Securely tighten screws to fix the Side-Mount Bracket to the mounting position of the wall surface.
When using more than one Side-Mount Brackets, align them in the same line using the sides of the
brackets that do not face the wall, before attaching the brackets to the sensor. (Fig. 3)
Screws to mount the brackets to the wall are not included.
Fig. 2
<Backside mounting>
<Side mounting>
Mounting Screw Mounting Screw
Slide into the backside
of the housing
Slide into the backside
of the housing
Securely tighten Securely tighten
<Backside mounting>
<Side mounting>
Align in the
same line
Fig. 3
M5/M6
M5/M6
To Next Page
