Chapter2 Mutual Interference Prevention
System Operation and Functions
E
Setting with End Cap
Scan code can be set as code A or B by changing the termination cap. The termination cap for
functional setting is attached on the TOP side. To change the scan code, replace the terminal cap
before installing F3SG-SR. Replace the termination cap after turning OFF the power. In the Wired
Synchronization*, selecting a scan code is unnecessary. When using the F3SG-SR in cascade
connection, make sure to attach the End Cap to the secondary sensor farthest from its power supply.
* In the Wired Synchronization, F3SG-SR can prevent mutual interference in up to 3 sets.
Loosen the fixing screws (at 2 locations) of the End Cap connected near the "TOP" mark of the F3SG-
SR and remove the End Cap as shown below. Connect the replacing End Cap to the F3SG-SR and
tighten the fixing screws to fix the End Cap. The recommended torque to tighten the Mounting Screws
is 0.35 N·m.
- Do not remove the insulating rubber attached to the End Cap. Failure to do so may cause deterioration of the protective
functions.
- When attaching the End Cap, tightly fasten the screw (M2.5, recommended torque: 0.35 N·m). Failure to do so may
cause the End Cap to come loose, leading to deterioration of the protective functions.
- The insulating rubber attached to connector of the End Cap may come off when removing the End Cap. If the rubber
comes off, place it back to the groove of the connector and insert the connector to the sensor body.
Setting with SD Manager 3
The user cannot make any changes to the settings of this function by the SD Manager 3.

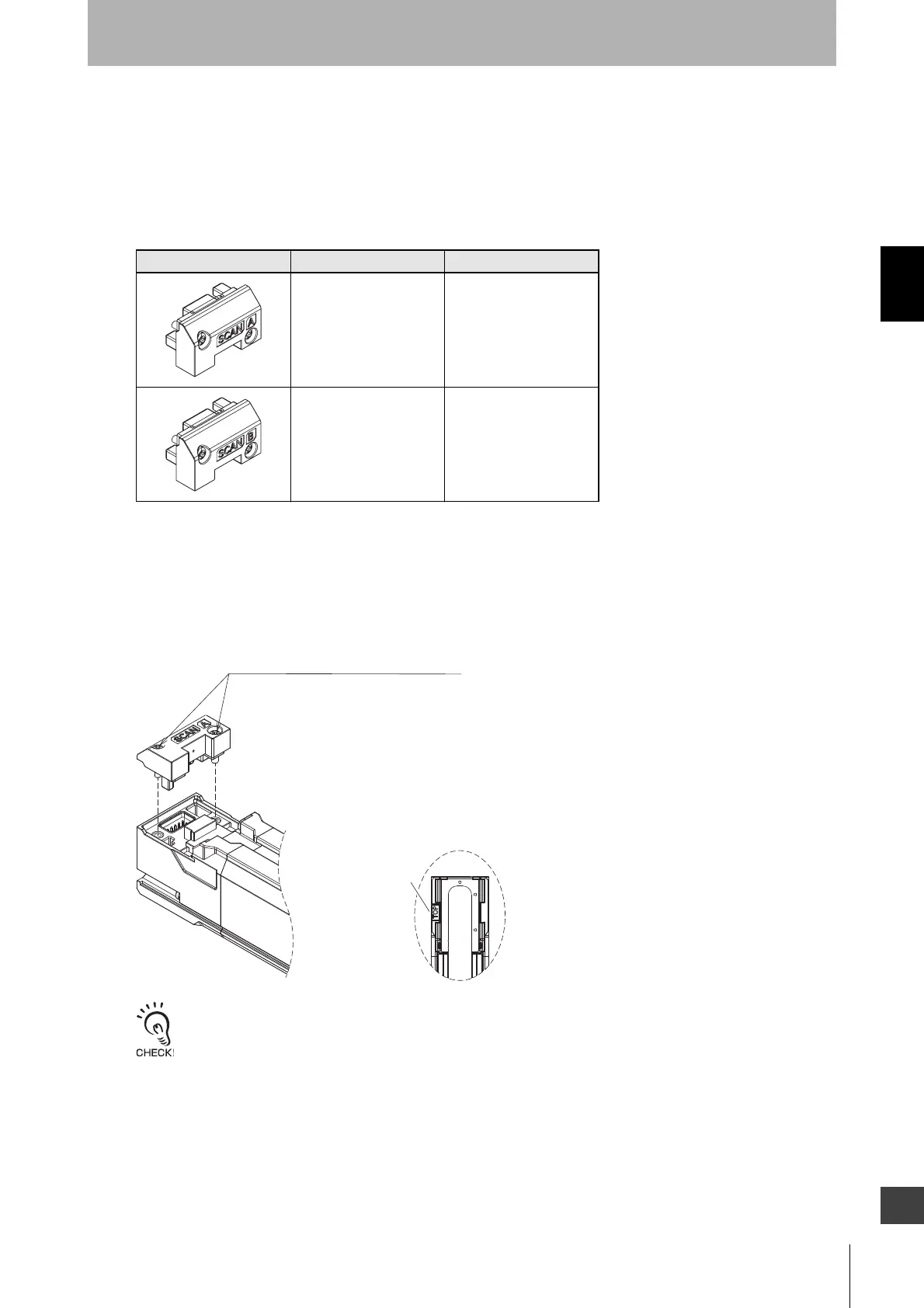

End Cap Description Color
Scan Code A (factory
default setting)
Black
Scan Code B White
Marking on plastic part
End Cap fixing screw (at 2 locations)
M2.5 screw (Tightening torque: 0.35 N・m)
"TOP" mark
