Panasonic FP Series User Manual

Program execution control instructions
1008
Part III FP Instructions

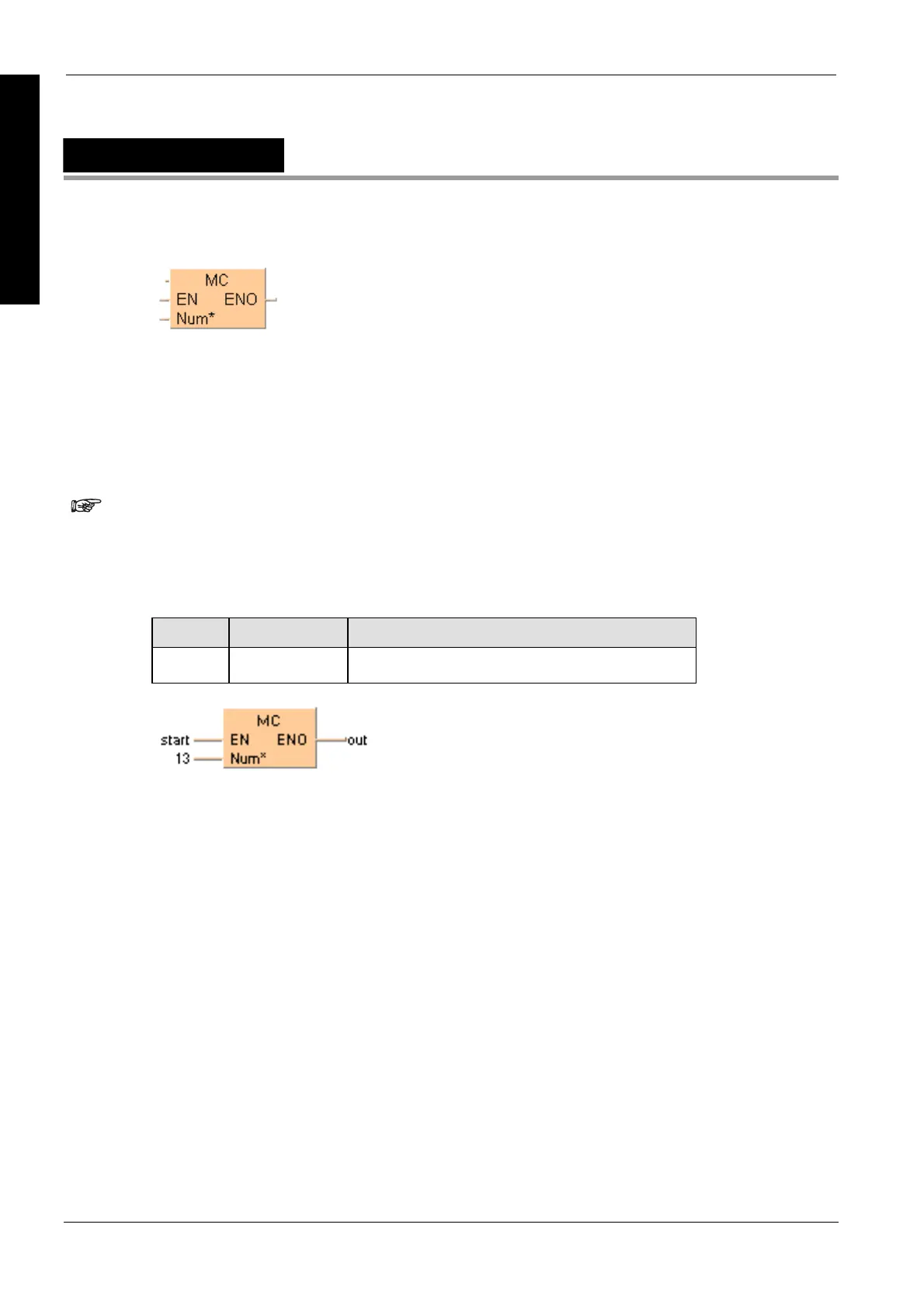

MC
Master control relay
When the predetermined trigger EN is in the OFF state, the program between the master control
relay MC and master control relay end MCE instructions is not executed.
A master control instruction (MC and MCE) pair may also be programmed in between another pair
of master control instructions. This construction is called "nesting".
The constant number Num* that must correspond to MC number, both of which delimit a "nested"
program that is not executed.
 It is not possible to use this function in a function block POU.
 The maximum possible value that can be assigned to Num* depends
on the PLC type.
PLC types
Availability of MC (see page 1328)
Variable Data type Function
Num* constant Constant number that must correspond to MCE number,
both of which delimit a "nested" program that is not executed
Description
Executes the program between the master control relay MC and master control relay end MCE
(see page 1008) instructions of the same number Num* only if the trigger EN is in the ON-s
tate
Data types
Example
LD

Panasonic FP Series Specifications

General

Mounting	DIN rail
Type	PLC
Communication Interface	RS-232, RS-485, Ethernet (depending on model)
Input Voltage	100-240V AC or 24V DC (depending on model)
Output Type	Relay, Transistor
I/O Points	Varies by model
Operating Temperature	0°C to 55°C
Dimensions	Varies by model
Weight	Varies by model
