HscInfo_IsResetInput
Disabled
Checks if reset input is disabled
See also:
Tool instructions: overview of high-speed counter instructions
HscControl_ResetInputEnable (see page 1151)
HscControl_Re
setInputDisable (see page 1149)
FP instructions
Enabling/disabling the reset input (hardware reset) (see page
891)
PLC types see page 1327
Variable Data type Function
iChannel INT High-speed counter channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Output variable BOOL TRUE if the reset input of the channel specified by iChannel is
disabled
Description
This instruction returns TRUE if the reset input of the channel specified by iChannel has been
disabled.
Data types
Example

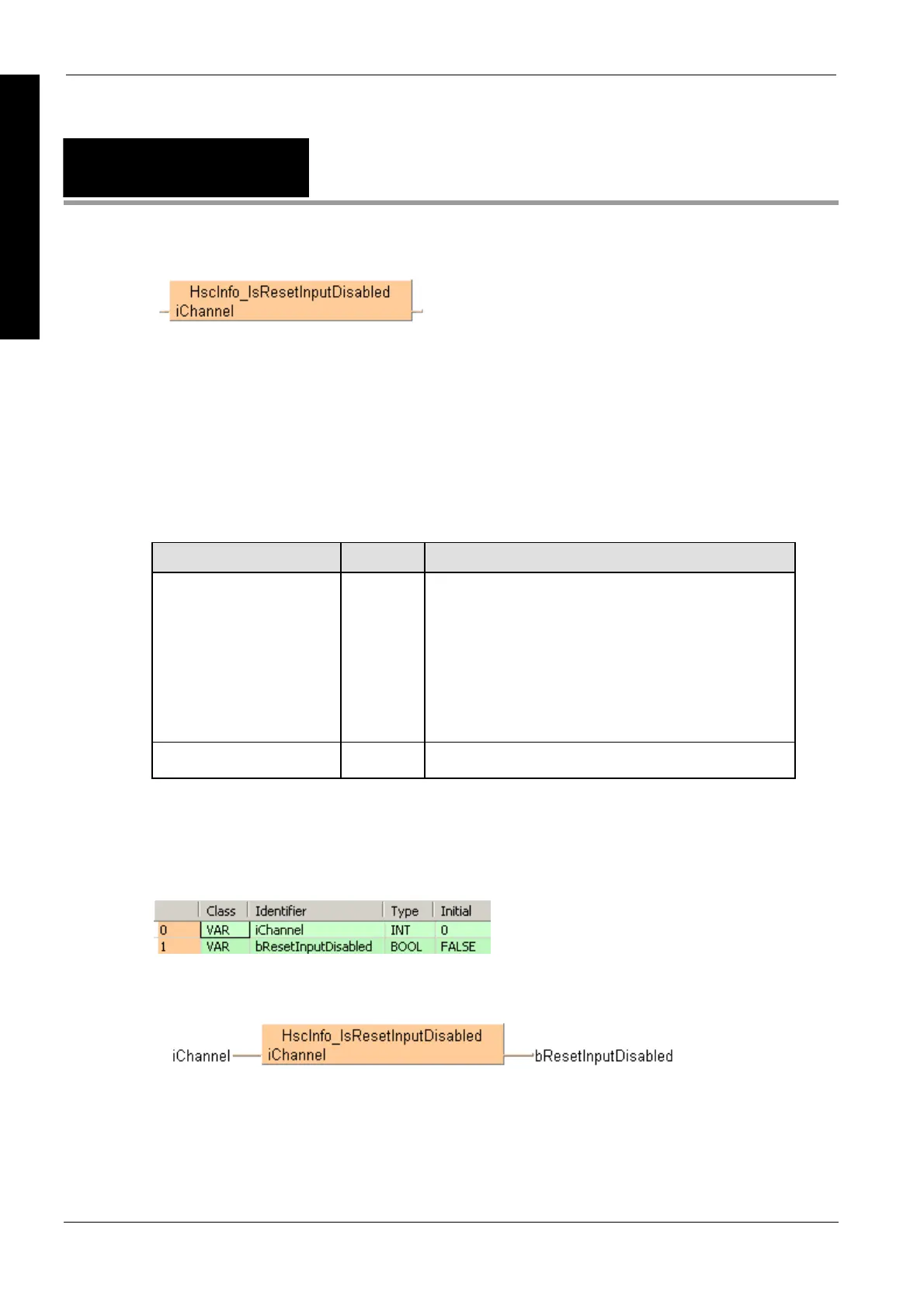

In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
LD
ST
When programming with structured text, enter the following:
if (bResetInput_Check) then
bResetInputDisabled := HscInfo_IsResetInputDisabled(iChannel :=
iChannel);
end_if;
