Arithmetic instructions
360
Part III FP Instructions

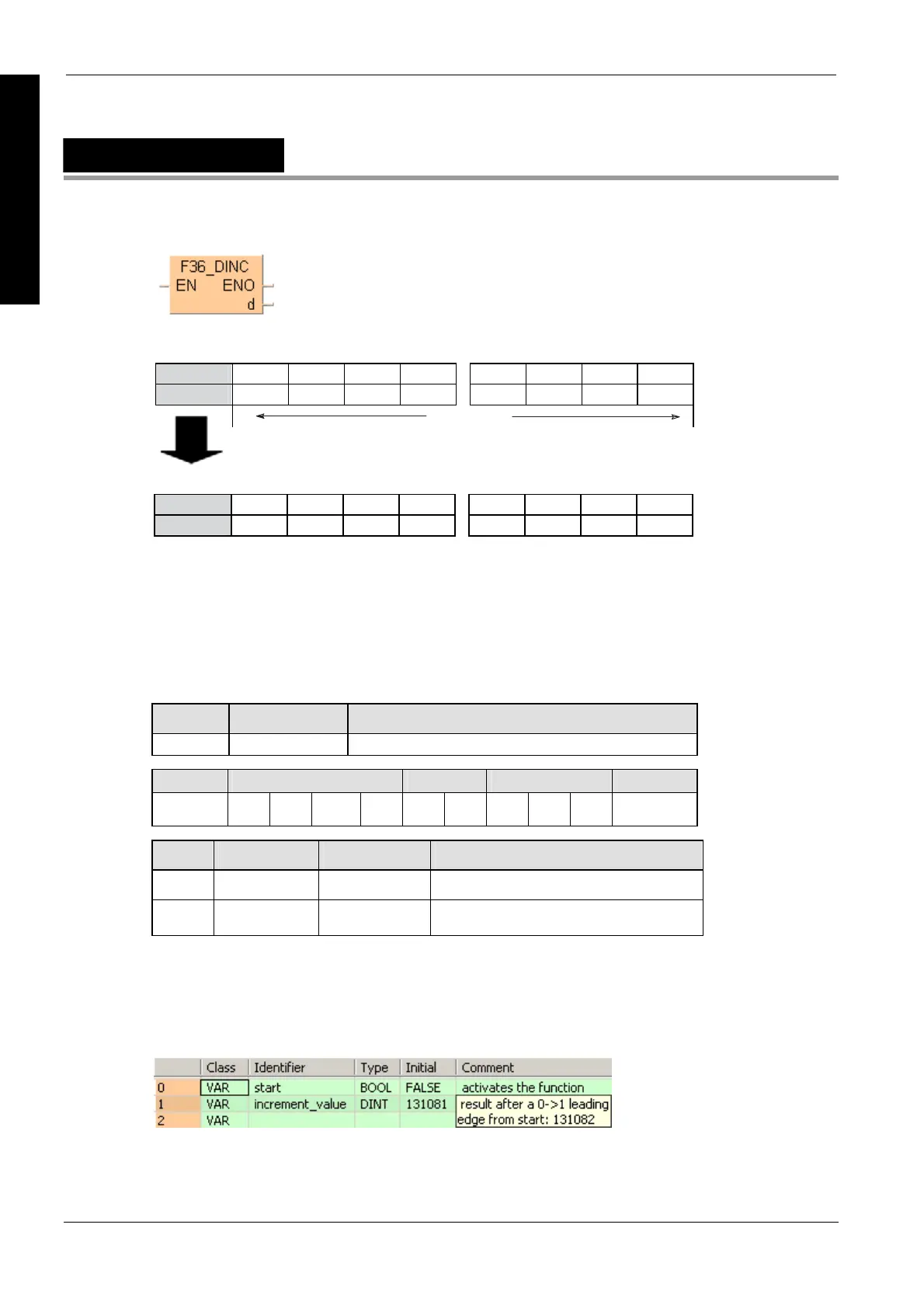

F36_DINC
32-bit increment
31 . . 28 27 . . 24 23 . . 20 19 . . 16
15 . . 12 10 . . 8 7 . . 4 3 . . 0
d
0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1
31 . . 28 27 . . 24 23 . . 20 19 . . 16
15 . . 12 10 . . 8 7 . . 4 3 . . 0
d
0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
1 0 0 0 0 0 0 0 0 0 0 0 1 0 1 0
32-bit area
Bit
Result value 131082 if trigger is ON
Bit
Example value 131081
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F36_DINC (see page 1325)
Variable Data type Function
d ANY32 32-bit area to be increased by 1
For Relay T/C Register Constant
d - DWY DWR DWL DSV DEV DDT DLD DFL -
No. IEC address Set If
R900B %MX0.900.11 for an instant the calculated result is 0.
R9009 %MX0.900.9 for an instant the result exceeds the range of 32-bit
data (overflow).
Description
Adds "1" to the 32-bit data specified by d if the trigger EN is in the ON-state. The result is stored in
d.
Data types
Operands
Error flags
Example
In this example the function has been programmed in ladder diagram (LD) and structured text
(ST).The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable start changes from FALSE to TRUE, the function is carried out.
