Bitwise Boolean instructions
530
Part III FP Instructions

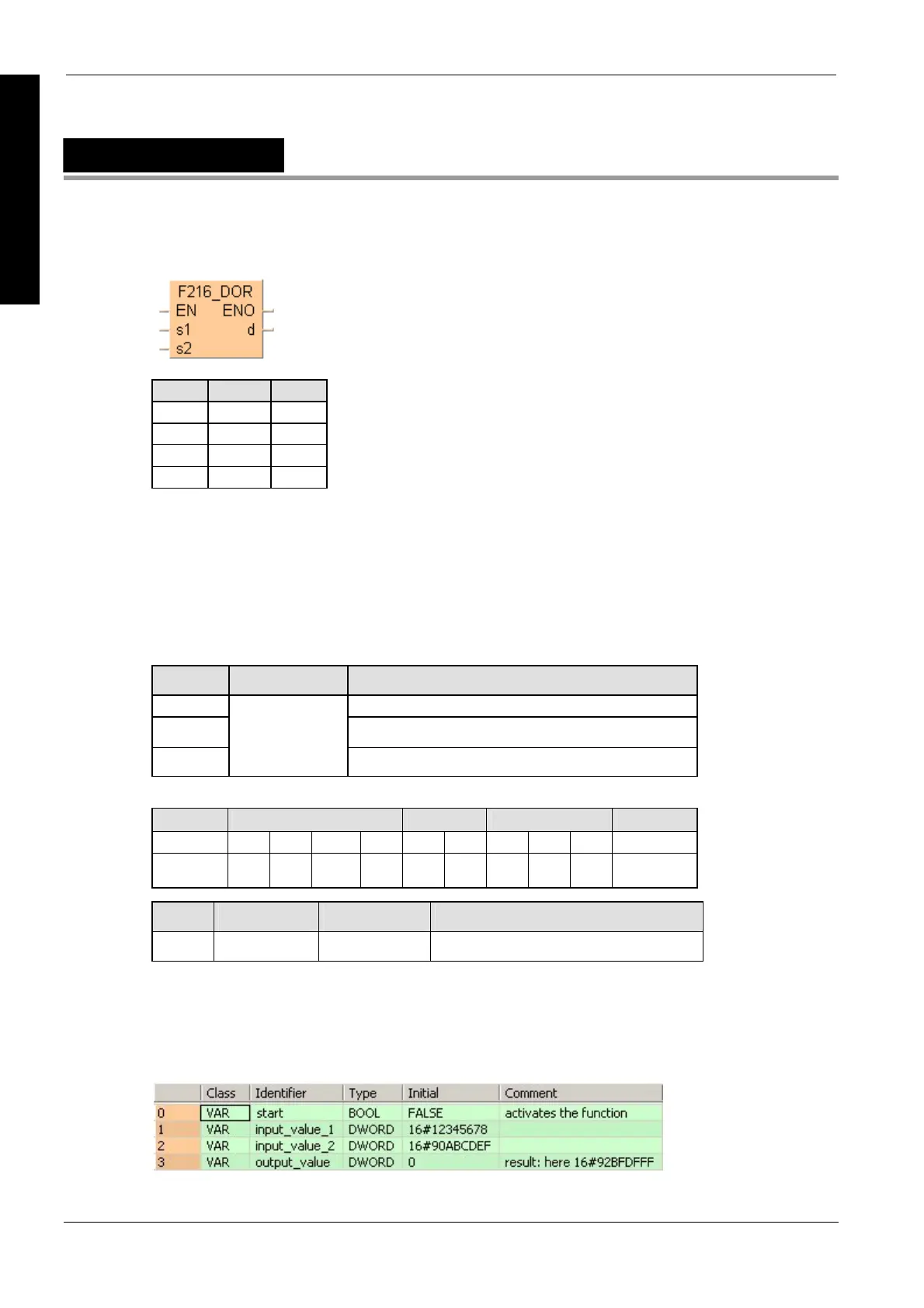

F216_DOR
32-bit data OR
Description
s1 s2 d
0 0 0
0 1 1
1 0 1
1 1 1
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F216_DOR (see page 1323)
Variable Data type Function
s1 32-bit equivalent constant or 32-bit area
s2 32-bit equivalent constant or 32-bit area
d
ANY32
32-bit area for storing OR operation result
The variables s1, s2 and d have to be of the same data type.
For Relay T/C Register Constant
s1, s2 DWX DWY DWR DWL DSV DEV DDT DLD DFL dec. or hex.
d - DWY DWR DWL DSV DEV DDT DLD DFL -
No. IEC address Set If
R900B %MX0.900.11 for an instant the result calculated (output d) is 0.
In this example the input variables input_value_1 and input_value _2 are declared. However, you
The function performs a bit-wise OR operation on two 32-bit data items at inputs s1 and s2. The
result of the function is returned at output d.
Truth
Table:
Data types
Operands
Error flags
Example
In this example, the same POU header is used for all programming languages. For an example
using IL (instruction list), please refer to the online help.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
