Panasonic FP Series User Manual

Pulse output instructions
1212
Part IV Tool Instructions

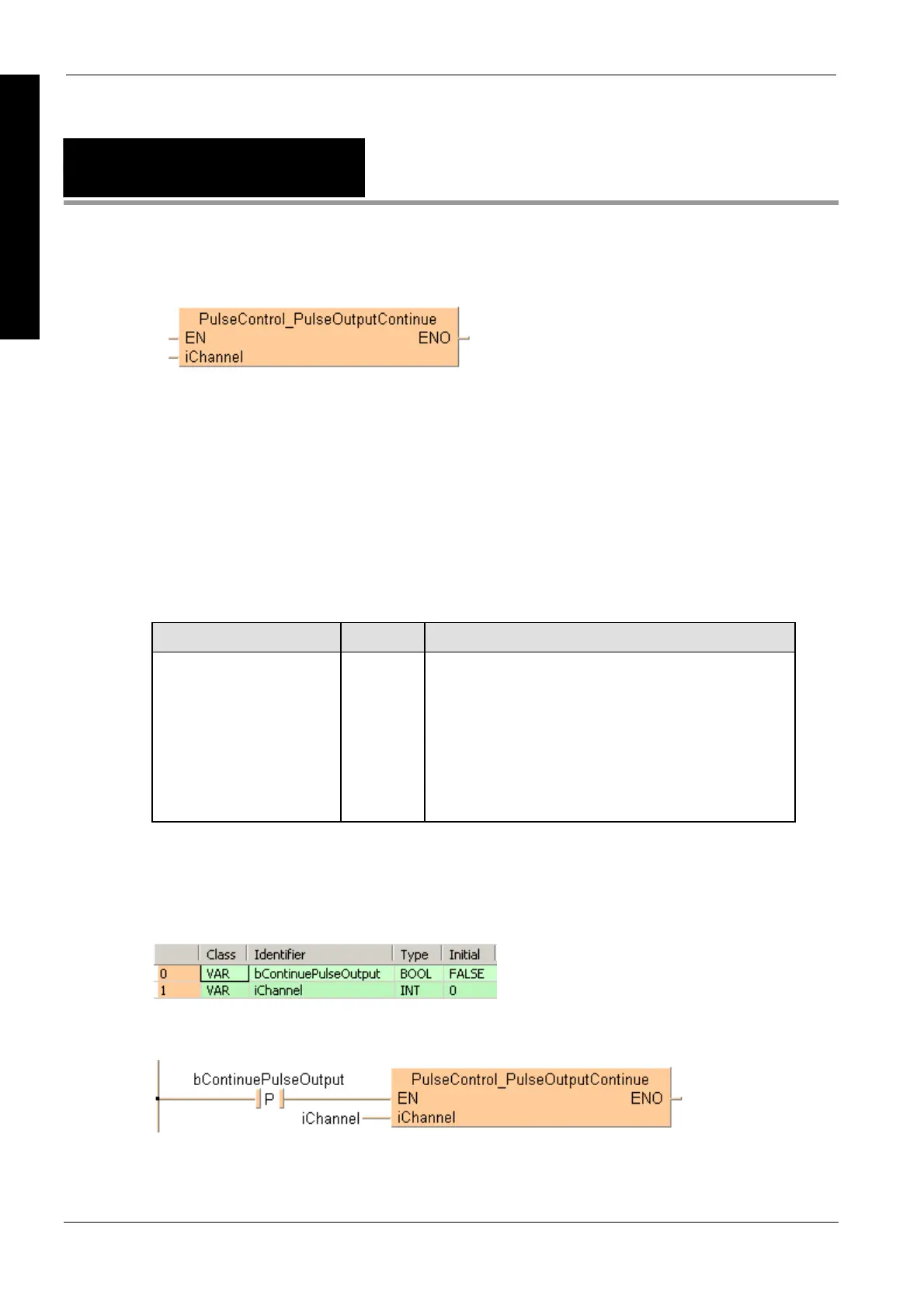

PulseControl_PulseOutput
Continue
Continues pulse output
See also:
 Pulse output tool instructions in the online help
 PulseControl_PulseOutputStop (see page 1213)
 PulseInfo_IsPulse
OutputStopped (see page 1228)
To add an enable inp
ut and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types see page 1329
Variable Data type Function
iChannel INT Pulse output channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Description
This instruction continues pulse output at the channel specified by iChannel after pulse output has
been stopped using PulseControl_PulseOutputStop (see page 1213). Bit 3 of the pulse output
control code (see page 1021) is
set to FALSE.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
LD
