Bistable instructions
306
Part II IEC Instructions

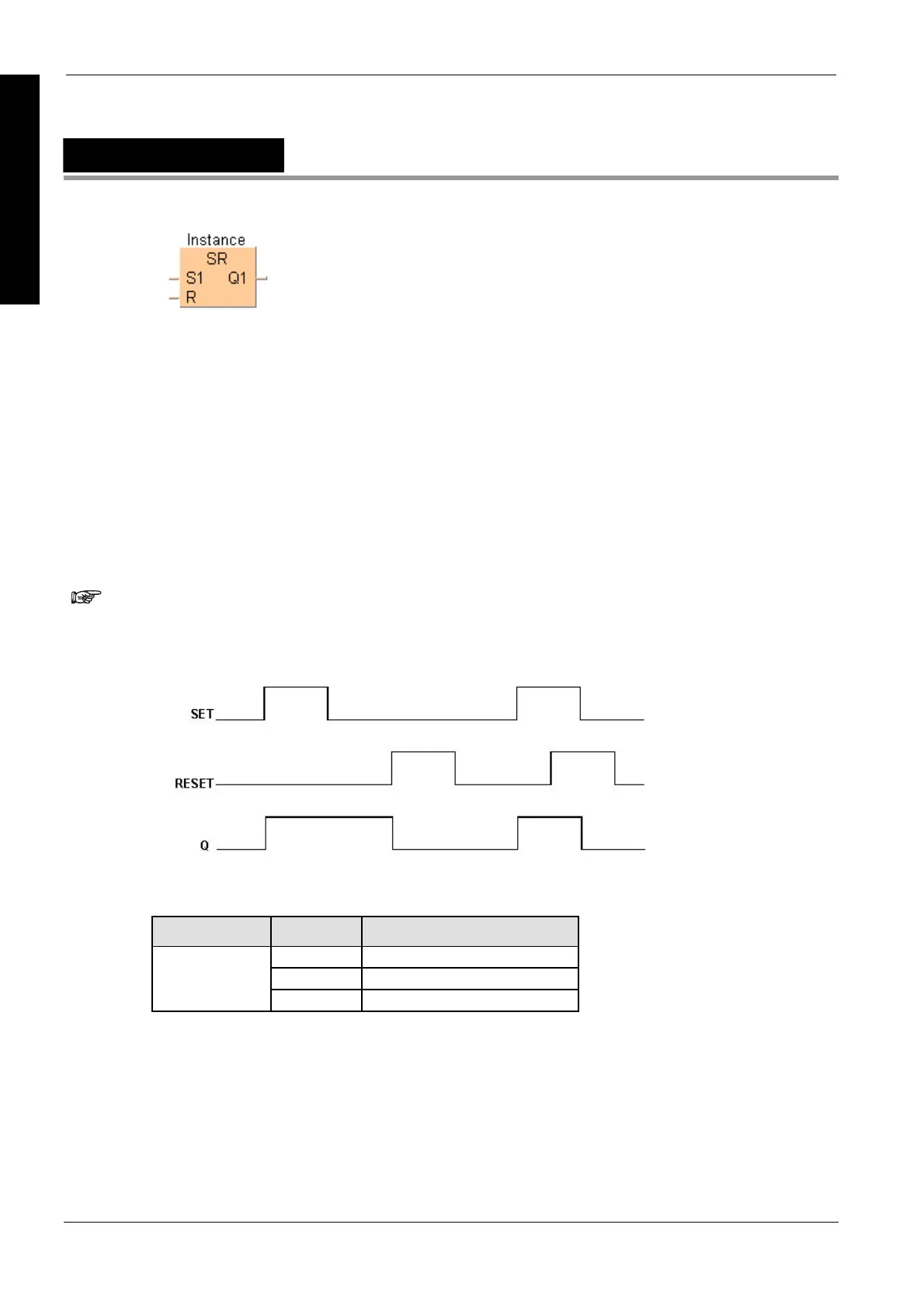

SR
Set/reset
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
For SR declare the following:
SET (S1) Set
The output Q is set for each rising edge at SET
RESET (R) reset
The output Q is reset for each rising edge detected at RESET, except
when SET is set (see time chart)
Q (Q1) signal output
is set if a rising edge is detected at SET; is reset if a rising edge is
detected at RESET if SET is not set.
 The names in brackets are the valid parameter names of the ST-editor.
 Q is set if a rising edge is detected at both inputs (Set and Reset).
 Upon initialising, Q always has the status zero (reset).
Time chart
PLC types Availability of SR (see page 1331)
Data type I/O Function
1st input Set
2nd input reset
BOOL
output set or reset depending on inputs
Description
The function block SR (set/reset) allows you to both set and reset an output.
Data types
Example
In this example, the same POU header is used for all programming languages. For an example
using IL (instruction list), please refer to the online help.
