Panasonic FP Series User Manual

Pulse output instructions
1214
Part IV Tool Instructions

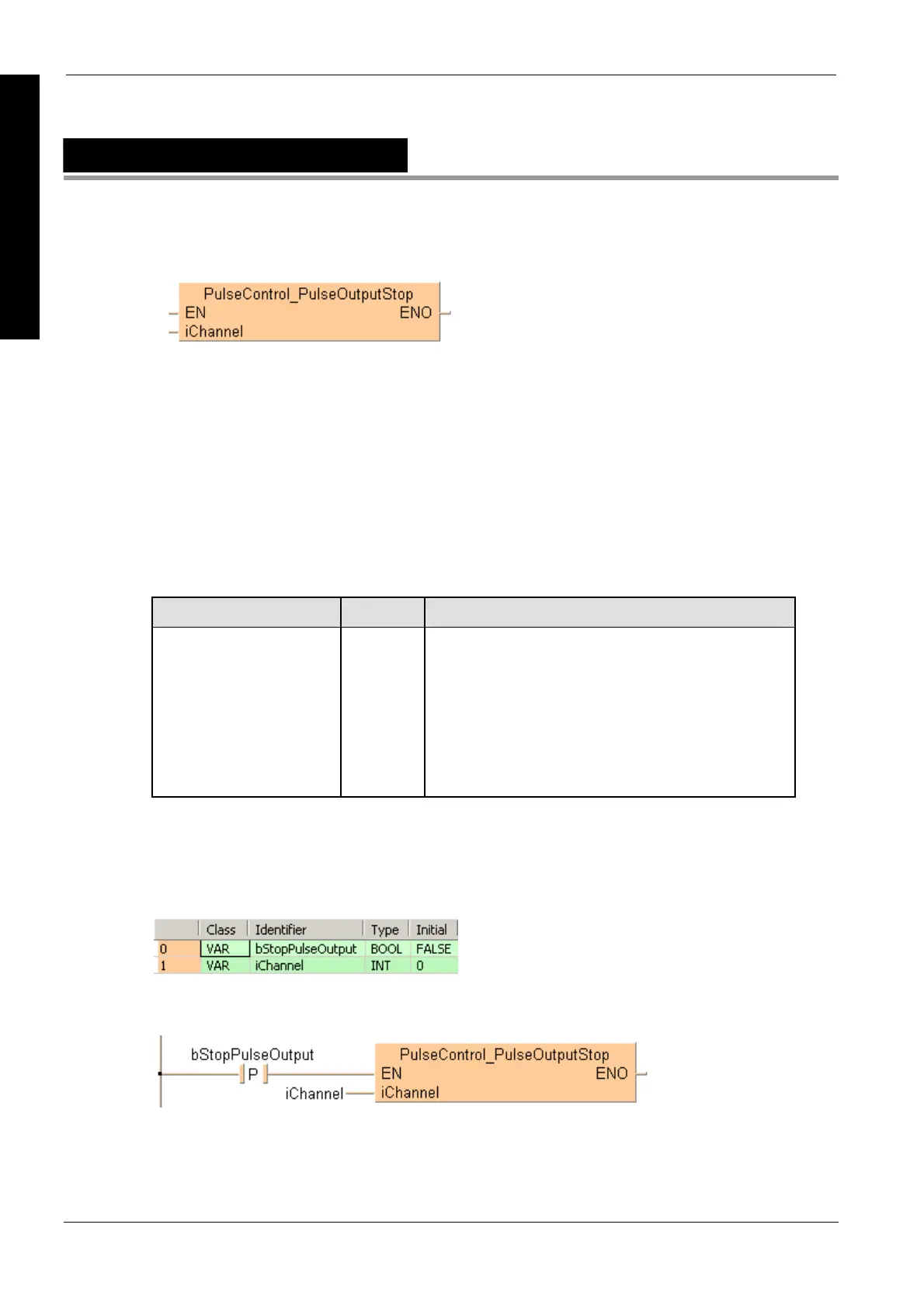

PulseControl_PulseOutputStop
Stops pulse output
See also:
 PulseInfo_IsPulseOutputStopped (see page 1228)
 PulseCo
ntrol_PulseOutputContinue (see page 1211)
 Stopping pulse output
To add a
n enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types see page 1329
Variable Data type Function
iChannel INT Pulse output channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Description
This instruction stops the pulse output on the channel specified by iChannel by setting bit 3 of the
pulse output control code (see page 1021) to TRUE. Use PulseControl_PulseOutputCo
ntinue (see
page 1211) to continue pulse output after the interrupt.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
LD
ST
