Panasonic FP Series

Pulse output instructions
1199
Part IV Tool Instructions

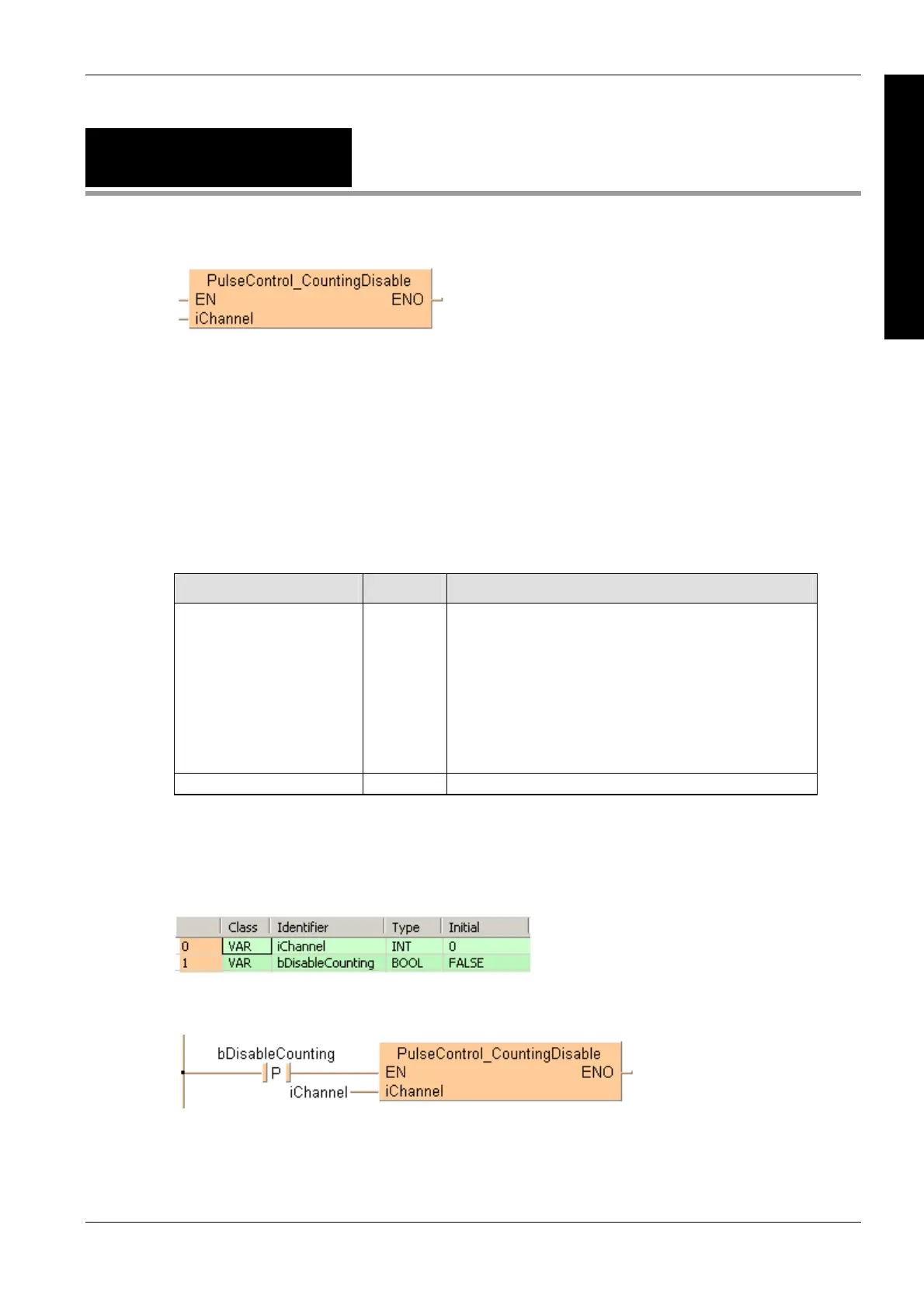

PulseControl_Counting
Disable
Disables counting on a pulse output channel
See also:
 Pulse output tool instructions in the online help
 PulseInfo_IsCountingDisabled (see page 1225)
 PulseCo
ntrol_CountingEnable (see page 1200)
To add an enable inp
ut and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types see page 1329
Variable Data type Function
iChannel INT Pulse output channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Output variable BOOL TRUE if pulse counting has been disabled
Description
This instruction disables counting on the channel specified by iChannel. Bit 1 of the pulse output
control code (see page 1021) is set to TRUE.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
LD
