Panasonic FP Series User Manual

Conversion instructions
251
Part II IEC Instructions
STRING_TO_ETLAN
ADDR_STEPSAVER
STRING (IP-address format 00a.0bb.0cc.ddd) to ETLAN Address
The function uses for approx. 50 steps of generated code the basic instruction F76_A2BIN (see
page 637). The instruction expects that each octet consists of three cha
racters with leading zeros.
Otherwise the PLC delivers an operation error.
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.

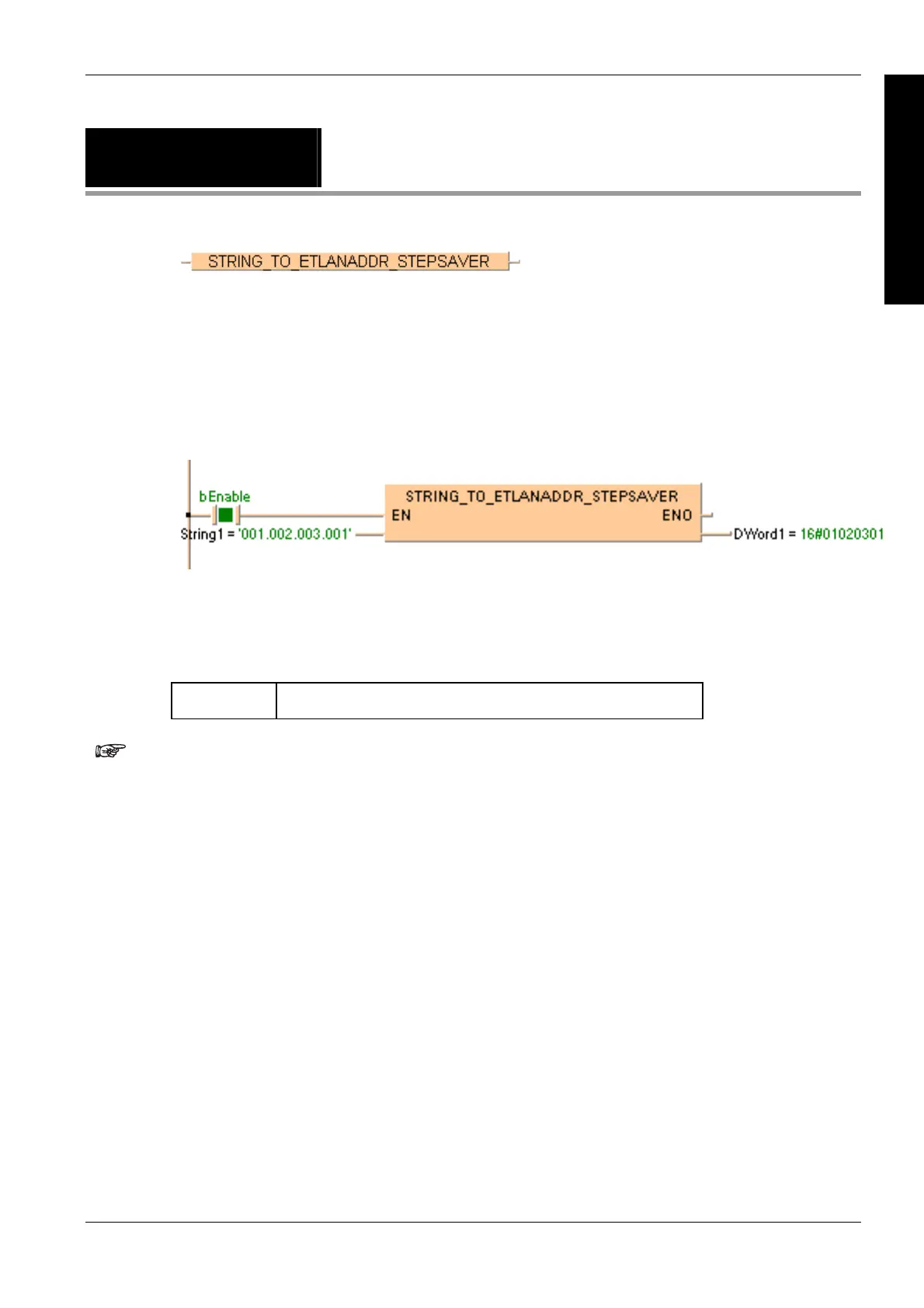

Example:
Permissible format:
'Octet1.Octet2.Octet3.Octet4[Space]', e.g.: ' [192.168.206.4] '
Permissible characters:
Octets 1-4 Decimal numbers "0“-"9“, maximal 3 positions, with or without leading
zeros in the range 0-255
If the format is wrong the result is 0.
The conversion is such that the highest byte of the ET-LAN address
represents the first octet and lowest byte of the IP address the fourth
octet. This format for ET-LAN addresses is used, for example, by the FP
Serie's ET-LAN modules.
Description
This function converts a STRING in IP address format into a value of the data type DWORD.
