Panasonic FP Series User Manual

High-speed counter instructions
1142
Part IV Tool Instructions

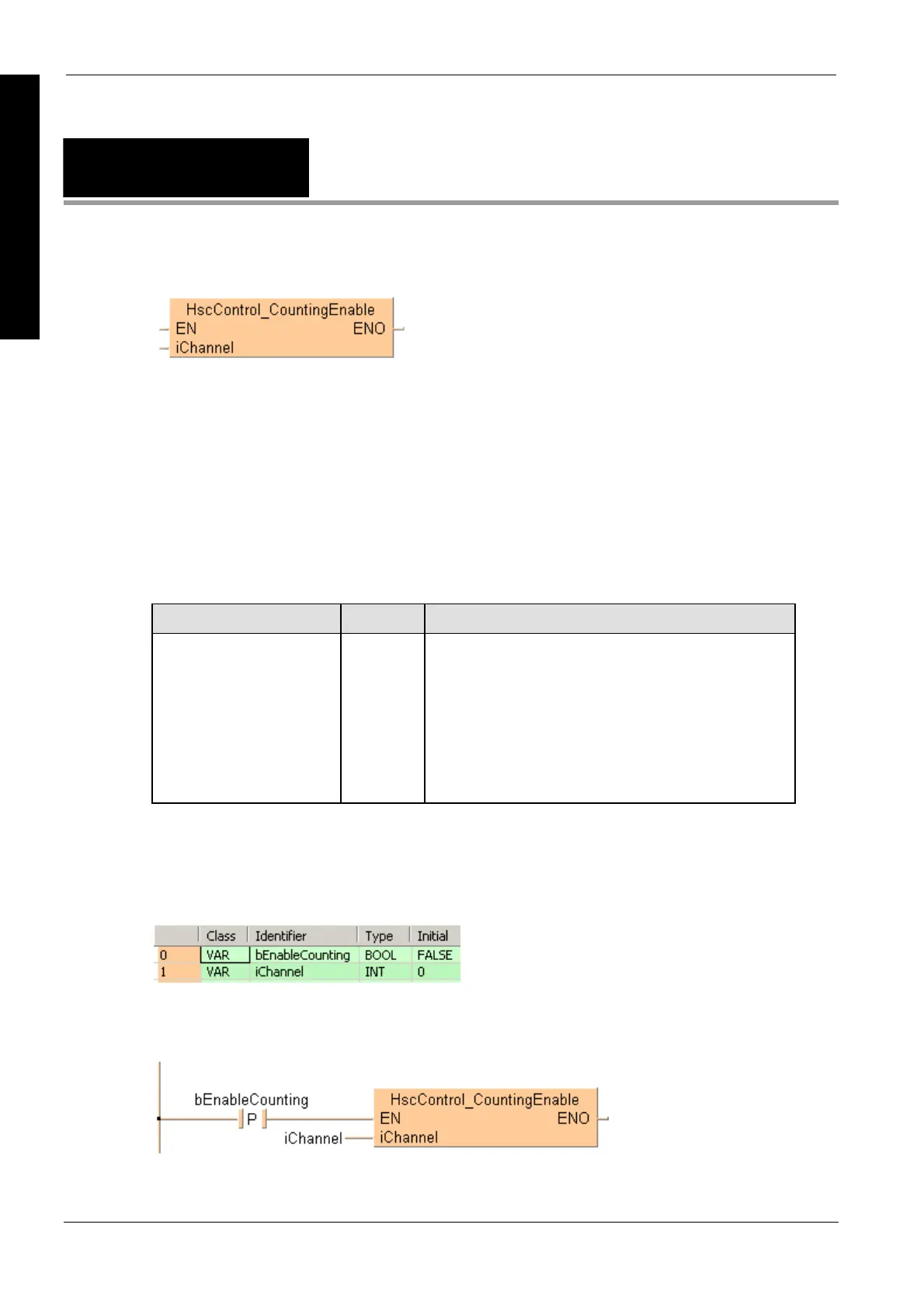

HscControl_Counting
Enable
Enables counting on a high-speed counter channel
See also:
 Tool instructions: overview of high-speed counter instructions
 HscControl_CountingDisable (see page 1139)
 HscInfo_IsCountingD
isabled (see page 1159)
To add an enable inp
ut and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types see page 1327
Variable Data type Function
iChannel INT High-speed counter channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Description
This instruction enables counting on the high-speed counter channel specified by iChannel after
counting has been disabled with HscControl_CountingDisable (see page 1139). Bit 1 of the
high-speed counter
control code (see page 891) is set to FALSE.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable bEnableCounting changes from FALSE to TRUE, counting on the channel
specified by iChannel is enabled.
LD
