SUB_TOD_TIME
Subtracts a TIME value from the time of day
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types Availability of SUB_TOD_TIME (see page 1331)
Data type I/O Function
TIME_OF_DAY 1st input minuend
TIME 2nd
input
subtrahend
TIME_OF_DAY output result
Description
SUB_TOD_TIME subtracts a TIME value from a value of the data type TIME_OF_DAY. The result
is stored in the output variable of the data type TIME_OF_DAY.
Data types
Example

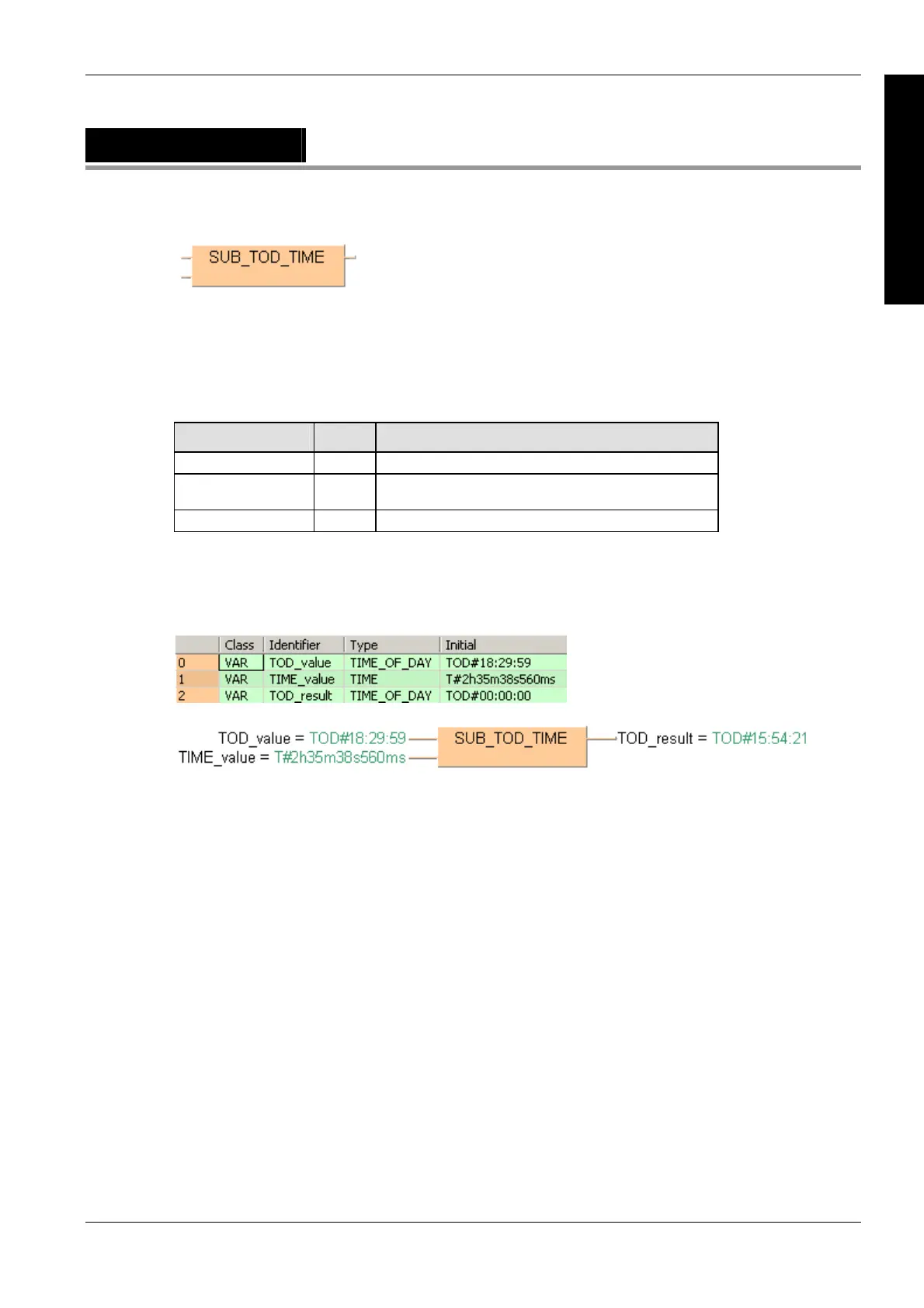

In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
ST
When programming with structured text, enter the following:
TOD_result := SUB_TOD_TIME(TOD_value, TIME_value);
