Panasonic FP Series User Manual

Timer instructions
932
Part III FP Instructions

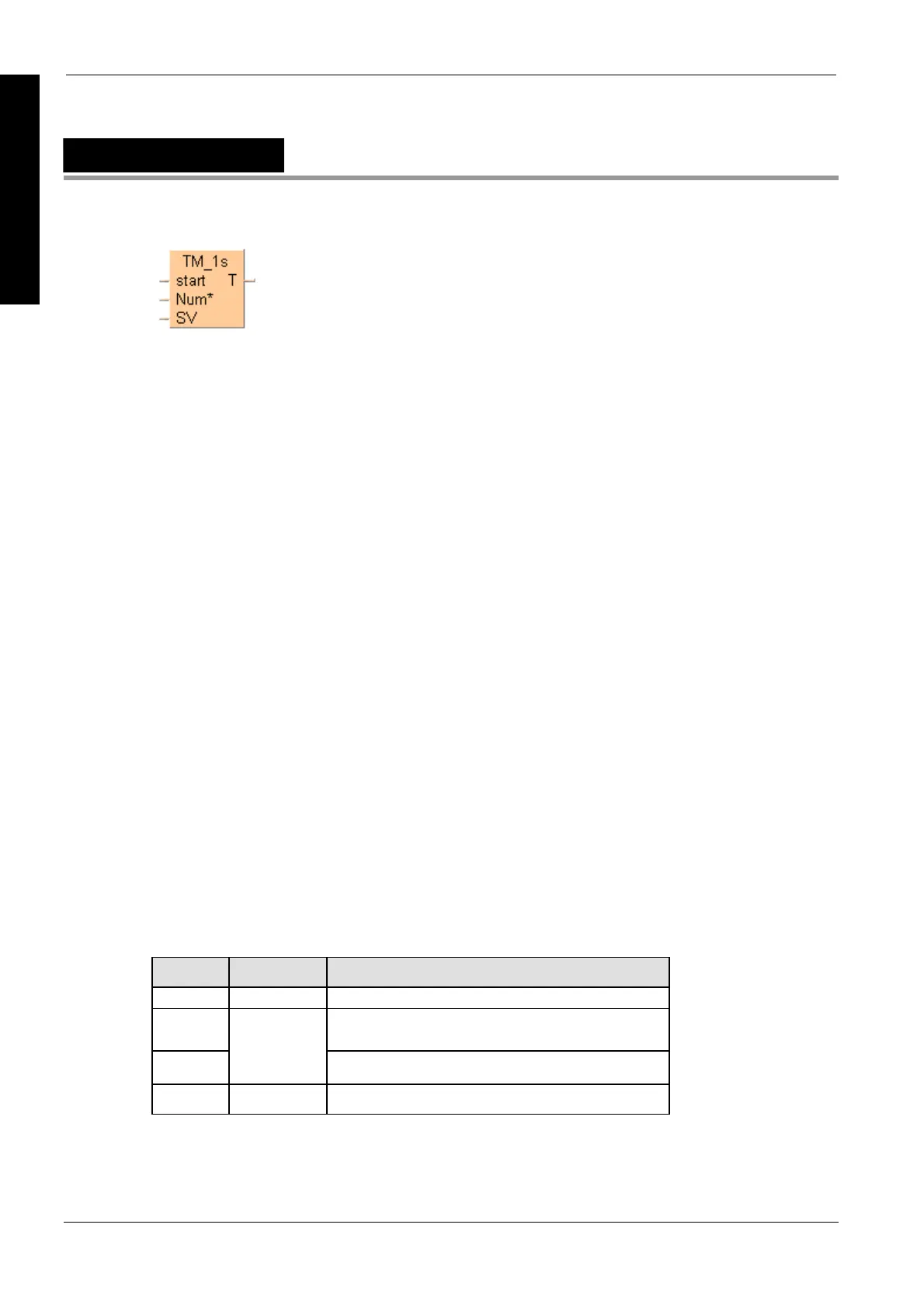

TM_1s
Timer for 1s intervals (0 to 32767s)
Instead of using this FP instruction, we recommend using the related IEC instruction TM_1s_FB
(see page 922).
Please refer also to Advantages of the IEC instructio
ns in the online help.
The area used for the instruction are:
 Preset (Set) value area: SV
 Count (Elapsed) value area: EV
When the mode is set to RUN mode, the Preset (Set) value is transferred to the SV. If the trigger of
the timer instruction start is in the ON-state, the Preset (Set) value is transferred to the EV from the
SV.
During the timing operation, the time is subtracted from the EV.
The scan time is also subtracted from the EV in the next scan.
The timer contact T turns ON, when the EV becomes 0.
Calculation of the timing operation:
timing operation = time set value - 0 to 1/4 of units (250ms) + scan time
Example:
150s time set value and 8ms PLC scan time
Upper limit = 150000 - 0 + 8 = 150008ms
Lower limit = 150000 -250 +8 = 149758ms
The result is a timing operation from 149758ms to 158ms.
PLC types
Availability of TM_1s (see page 1332)
Variable Data type Function
start BOOL starts timer
Num* timer address in system registers 5 and 6
Must be a constant
SV
ANY16
set value
T BOOL timer contact
Description
The TM_1s instruction sets the ON-delay timer for 1s units (0 to 32767s).
Data types

Panasonic FP Series Specifications

General

Mounting	DIN rail
Type	PLC
Communication Interface	RS-232, RS-485, Ethernet (depending on model)
Input Voltage	100-240V AC or 24V DC (depending on model)
Output Type	Relay, Transistor
I/O Points	Varies by model
Operating Temperature	0°C to 55°C
Dimensions	Varies by model
Weight	Varies by model
