Panasonic FP Series User Manual

Conversion instructions
159
Part II IEC Instructions

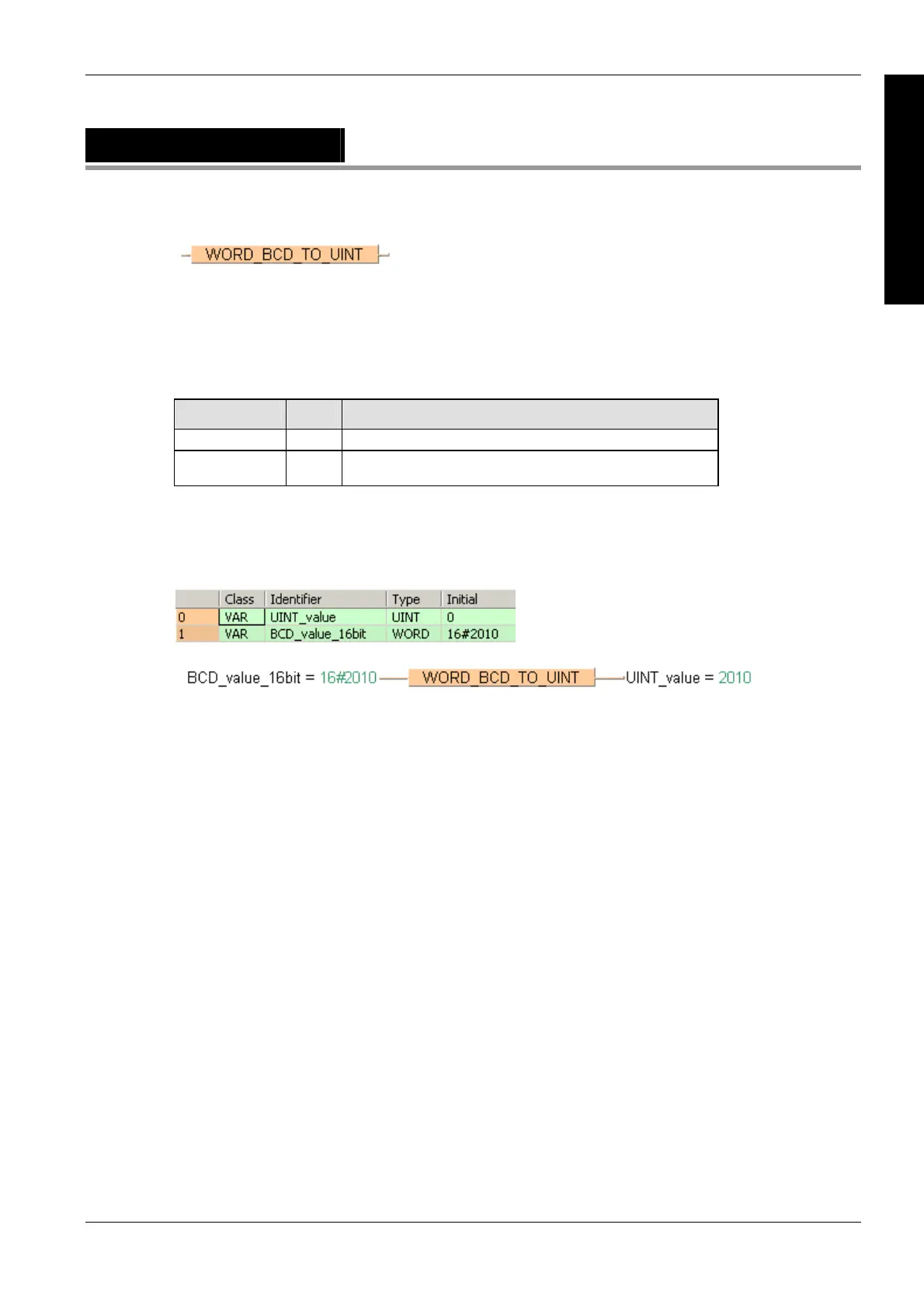

WORD_BCD_TO_UINT
Binary coded WORD value in Unsigned INTEGER
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types
Availability of WORD_BCD_TO_UINT (see page 1333)
Data type I/O Function
WORD_BCD Input input data type
UINT Output conversion result
Description
WORD_BCD_TO_UINT converts a binary coded value of the data type WORD into a value of the
data type Unsigned INTEGER.
Data types
Example
In this example the function is programmed in ladder diagram (LD).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
