Panasonic FP Series User Manual

Data transfer within the PLC
823
Part III FP Instructions

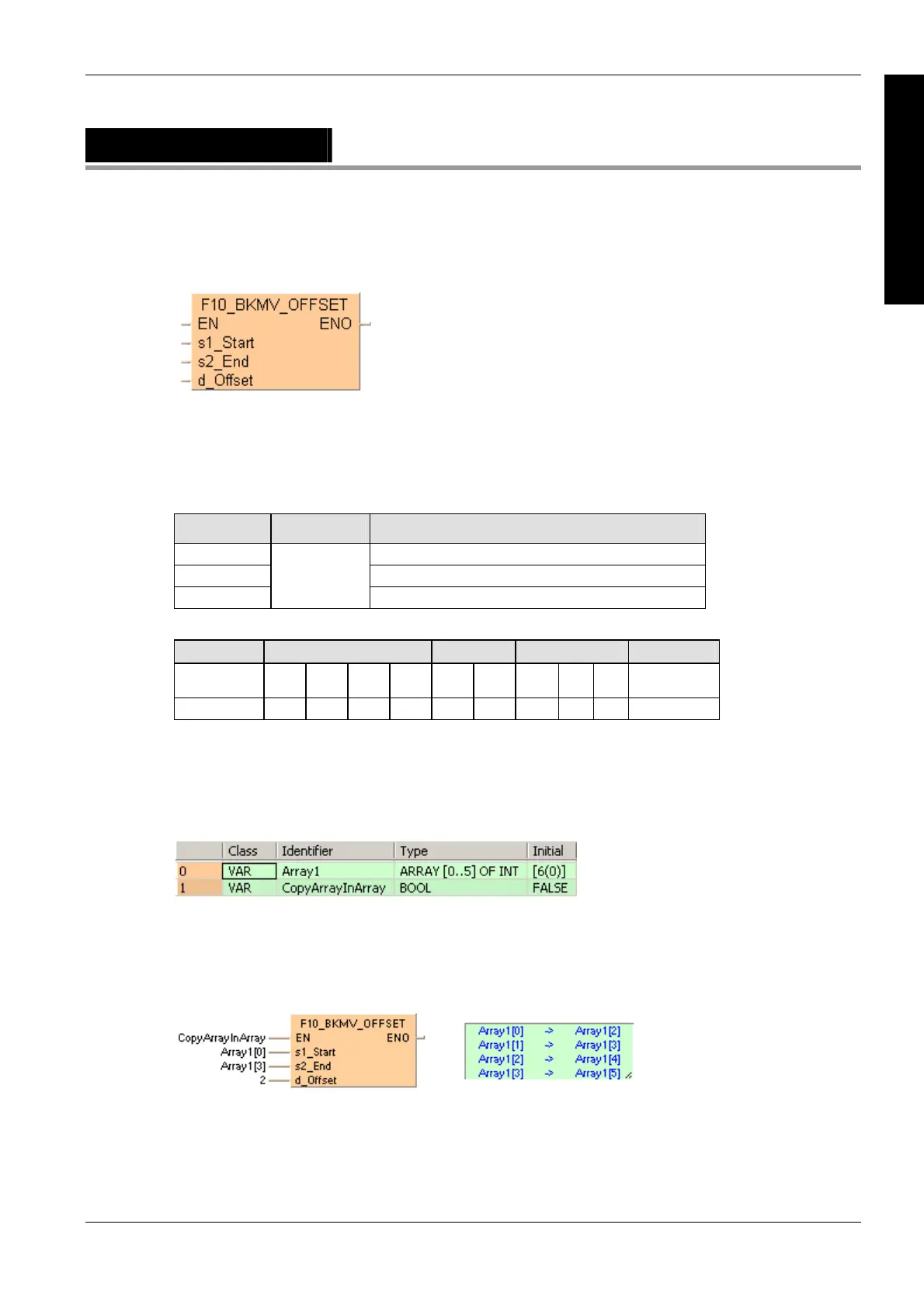

F10_BKMV_OFFSET
Block move to an offset from source
This instruction is a modification of the F10_BKMV (see page 819) generated by the compiler.
Whenever s1_Start and s2_End are in the same data area:
 d_Offset = 0: data will be recopied to the same data area.
PLC types
Availability of F10_BKMV_OFFSET (see page 1320)
Variable Data type Function
s1_Start starting 16-bit area, source
s2_End ending 16-bit area, source
d_Offset
ANY16
offset from s1_Start, destination
The variables s1_Start, s2_End and d_Offset have to be of the same data type.
For Relay T/C Register Constant
s1_Start,
s2_End
WX WY WR WL SV EV DT LD FL -
d_Offset - WY WR WL SV EV DT LD FL dec. or hex.
Description
The data block specified by the 16-bit starting area specified by s1_Start and 16-bit ending area
specified by s2_End are copied to the block starting from the 16-bit area specified by the offset
d_Offset from s1_Start if the trigger EN is in the ON-state.
Data types
Operands
Example
In this example the function is programmed in ladder diagram (LD). The same POU header is used
for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable CopyArrayInArray changes from FALSE to TRUE, the function is carried out. It
copies the data block starting at the 16-bit area specified by s1_Start and 16-bit ending area
specified by s2_End to the block starting from the 16-bit area specified by the offset d_Offset from
s1_Start.
LD
