Panasonic FP Series User Manual

Analog unit instructions
1119
Part IV Tool Instructions
Unit_AnalogInOut_
FPG_A44
Reads data from the FPG-A44 unit
PLC types see page 1335

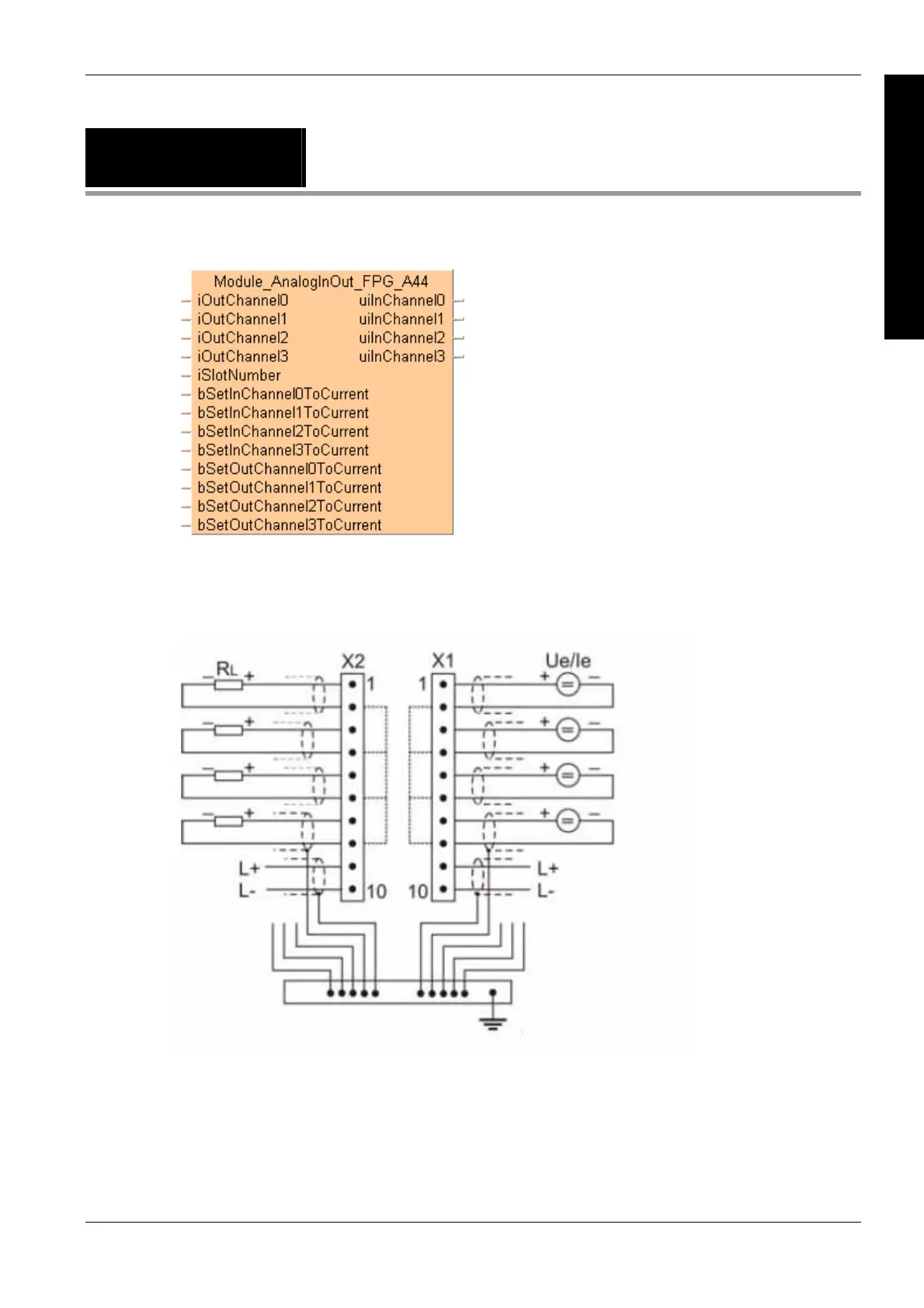

Wiring diagram
EMC shield bar in proximity to the plug module.
Description
This function block reads data from the FPG-A44 unit. The unit converts analog input data (0-10 V
DC and 0-20 mA DC) into 16-bit word digital output values.
