Panasonic FP Series User Manual

Conversion instructions
183
Part II IEC Instructions

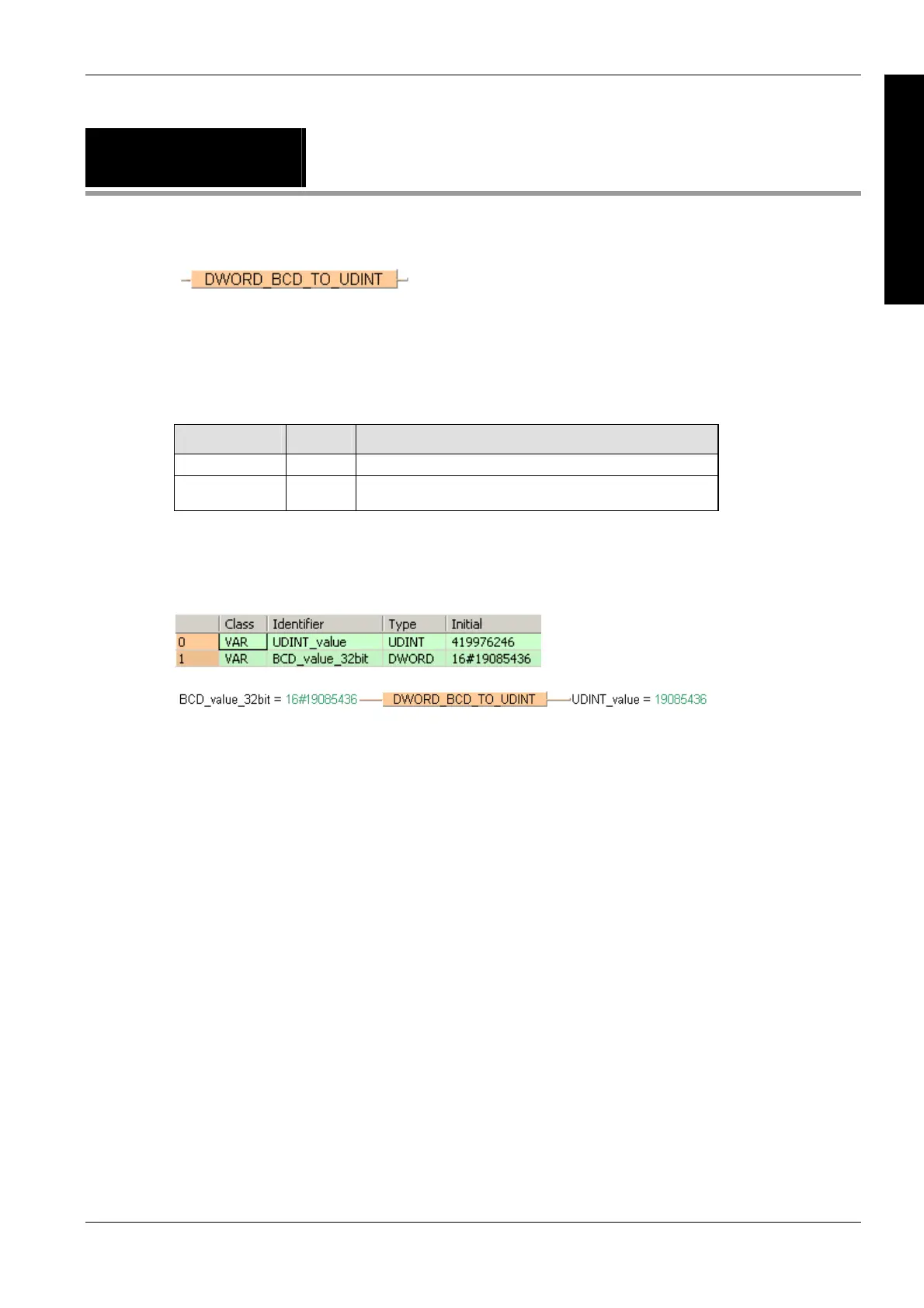

DWORD_BCD_TO_
UDINT
Binary value of DOUBLE WORD in Unsigned INTEGER
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types
Availability of DWORD_BCD_TO_UDINT (see page 1319)
Data type I/O Function
DWORD_BCD Input input data type
UDINT Output conversion result
Description
DWORD_BCD_TO_UDINT converts a binary value of the data type DWORD into a value of the
data type Unsigned DOUBLE INTEGER.
Data types
Example
In this example the function is programmed in ladder diagram (LD).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
