Panasonic FP Series User Manual

Conversion instructions
246
Part II IEC Instructions

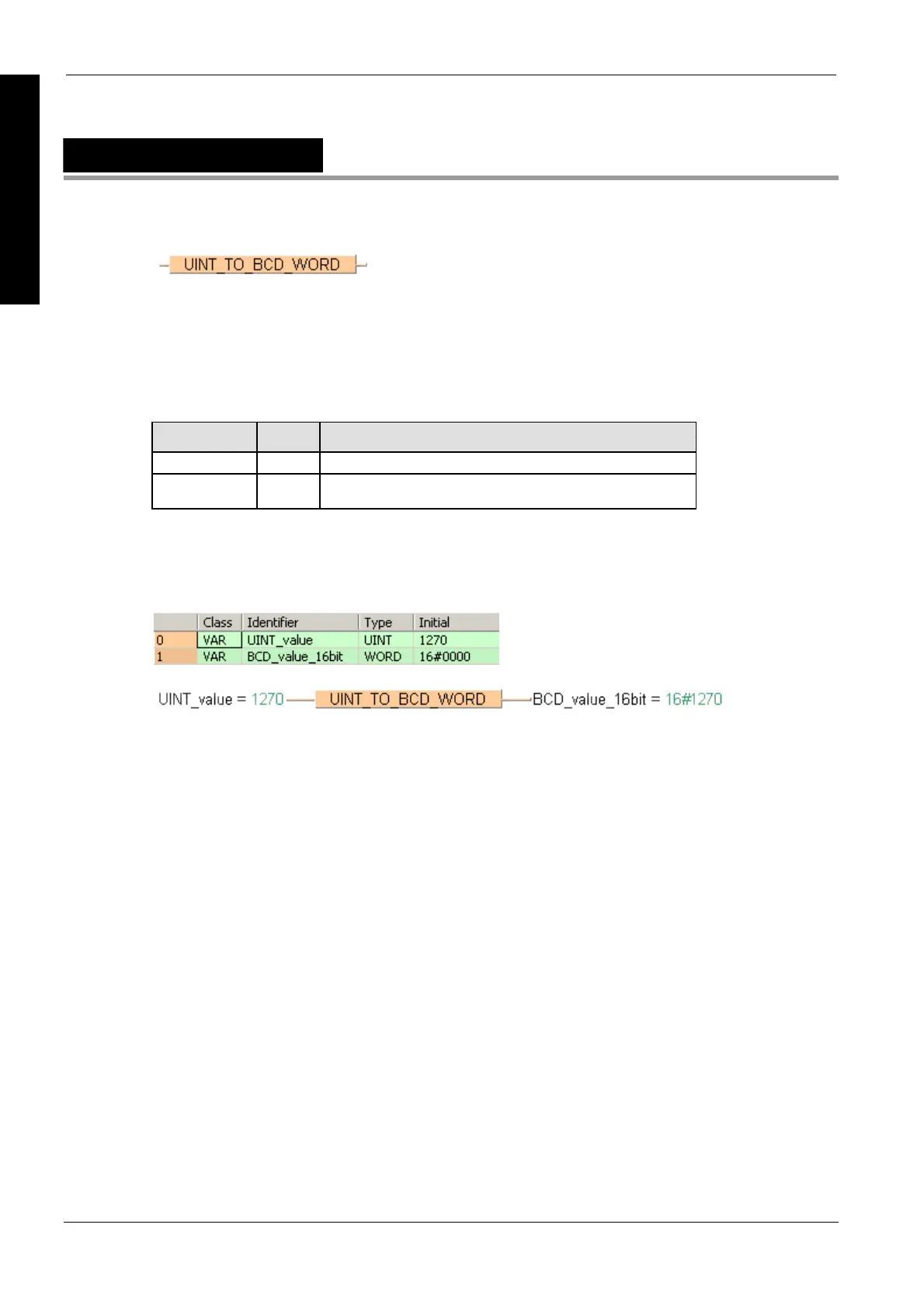

UINT_TO_BCD_WORD
Unsigned INTEGER into BCD value of WORD
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types
Availability of UINT_TO_BCD_WORD (see page 1332)
Data type I/O Function
UINT Input input data type
BCD_WORD Output conversion result
Description
UINT_TO_BCD_WORD converts a value of the data type Unsigned INTEGER into a BCD value of
the data type WORD.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
ST
BCD_value_16bit:=UINT_TO_BCD_WORD(UINT_value);
