Panasonic FP Series User Manual

Conversion instructions
182
Part II IEC Instructions

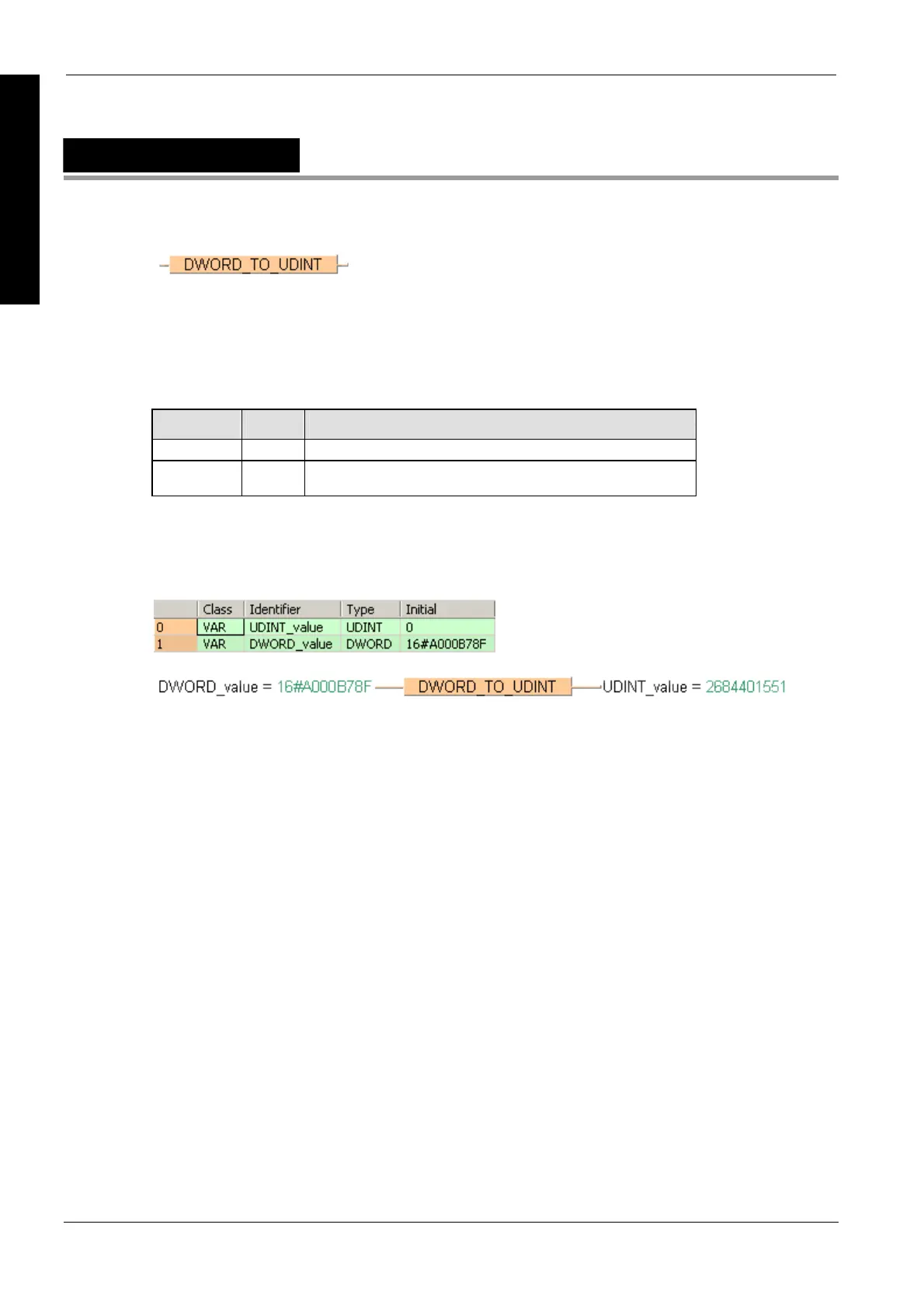

DWORD_TO_UDINT
DOUBLE WORD in Unsigned DOUBLE INTEGER
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types
Availability of DWORD_TO_UDINT (see page 1319)
Data type I/O Function
DWORD Input input data type
UDINT Output conversion result
Description
DWORD_TO_UDINT converts a value of the data type DWORD into a value of the data type
Unsigned DOUBLE INTEGER.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
ST
When programming with structured text, enter the following:
UDINT_value := DWORD_TO_UDINT(DWORD_value);
