Part III FP Instructions

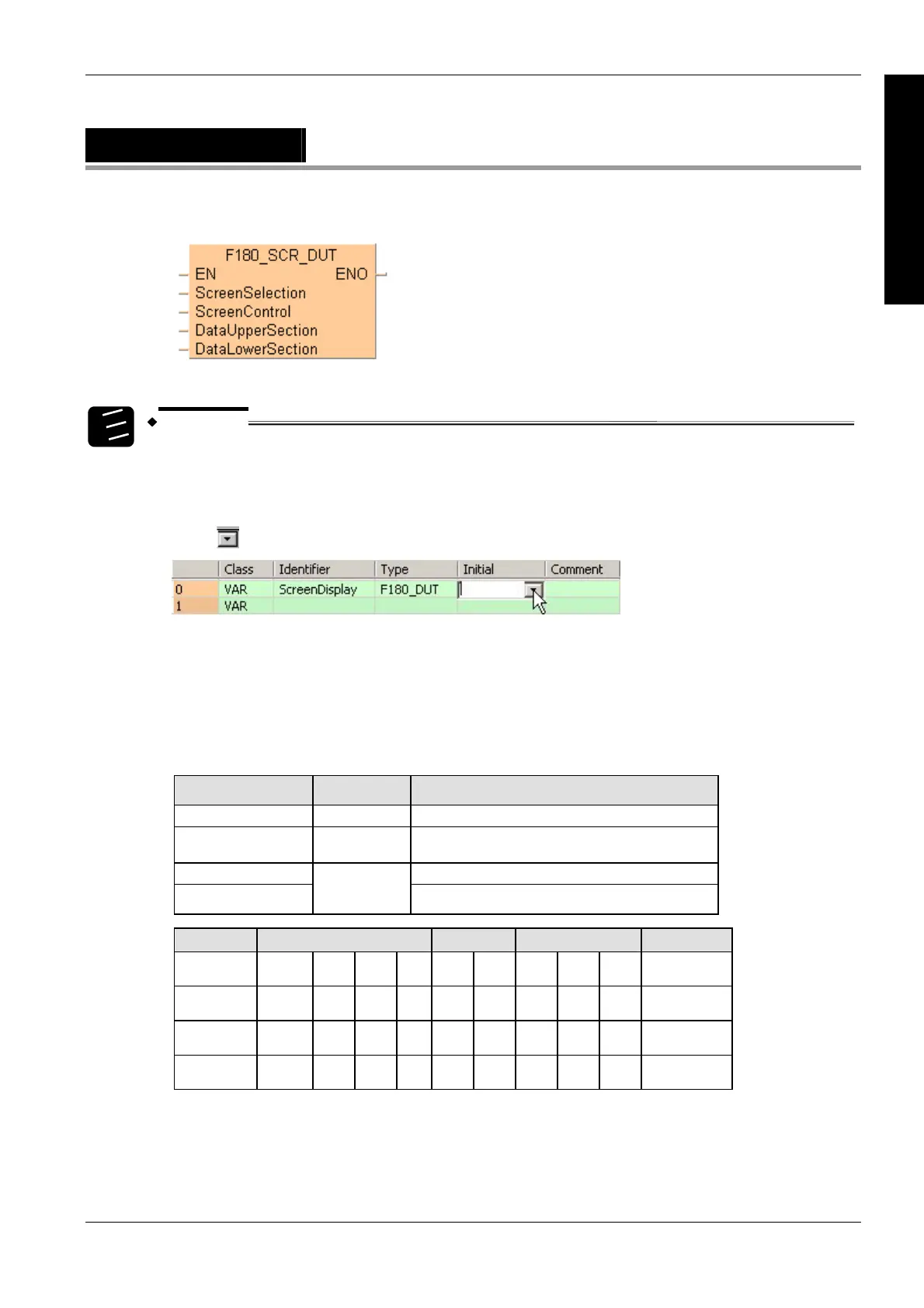

F180_SCR_DUT
Configuring the Display of the FP-e
Using a convenient dialog, the control code for the screen display is configured.
1.
2.
3.
Procedure
1. Assigning a DUT
2. Select F180_DUT in the header of the declaration under "Type"
3. Click
in the “Initial” field
The configuration dialog opens.
4. Make desired settings
5. [OK]
PLC types Availability of F180_SCR_DUT (see page 1322)
Variable Data type Function
ScreenSelection ANY16 Display mode
ScreenControl F180_DUT Data unit type for the control data of the screen
display.
DataUpperSection Value in the upper display area
DataLowerSection
ANY16
Value in the lower display area
For Relays T/C Registers Constant
Screen
Selection
WX WY WR - SV EV DT IX IY dec. or hex.
Screen
Control
- - - - - - - - - -
DataUpper
Section
WX WY WR - SV EV DT IX IY -
DataLower
Section
- WY WR - SV EV DT IX IY -
Description
This instruction allows you to configure the screen display of the FP-e for N mode (normal mode)
and S mode (switch mode).
Data types
Operands
