Data transfer within the PLC
808
Part III FP Instructions

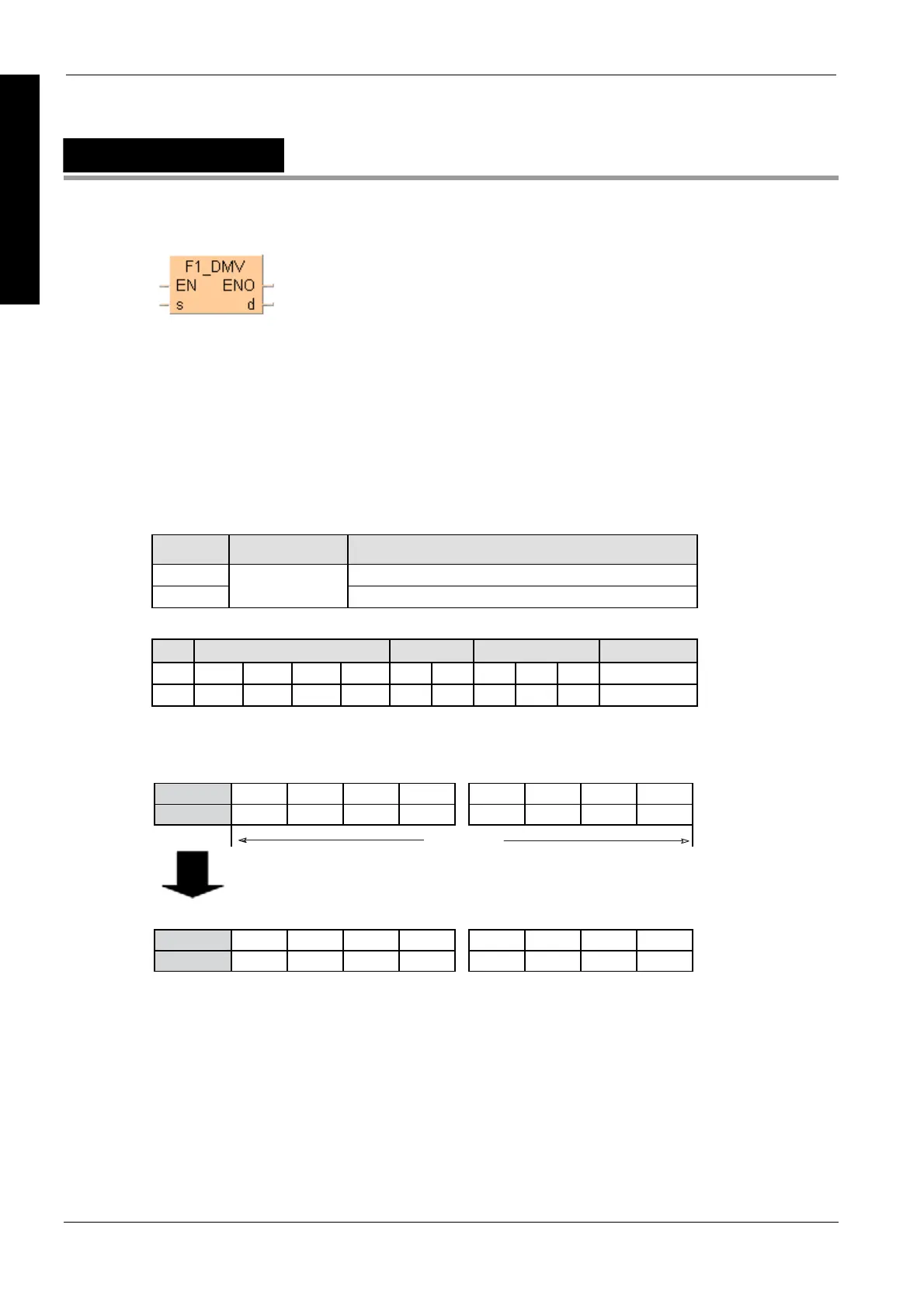

F1_DMV
32-bit data move
Instead of using this FP instruction, we recommend using the related IEC instruction MOVE (see
page 59). Please refer also to Advantages of the IEC instructions in the online help.
This instruction also exists as a P instru
ction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F1_DMV (see page 1320)
Variable Data type Function
s source 32-bit area
d
ANY32
destination 32-bit area
The variables s and d have to be of the same data type.
For Relay T/C Register Constant
s DWX DWY DWR DWL DSV DEV DDT DLD DFL dec. or hex.
d - DWY DWR DWL DSV DEV DDT DLD DFL -
Explanation with example value 16#ACAEE486
31 . . 28 27 . . 24 23 . . 20 19 . .16 15 . . 12 10 . . 8 7 . . 4 3 . . 0
s
1 0 1 0 1 1 0 0 1 0 1 0 1 1 1 0 1 1 1 0 0 1 0 0 1 0 0 0 0 1 1 0
31 . . 28 27 . . 24 23 . . 20 19 . .16 15 . . 12 10 . . 8 7 . . 4 3 . . 0
d
1 0 1 0 1 1 0 0 1 0 1 0 1 1 1 0 1 1 1 0 0 1 0 0 1 0 0 0 0 1 1 0
bit
source
destination
bit
32-bit area
bit
Destination value in this example: 16#ACAEE486
Description
The 32-bit data or 32-bit equivalent constant specified by s is copied to the 32-bit area specified by
d, if the trigger EN is in the ON-state.
Data types
Operands
