Data transfer via communication ports
757
Part III FP Instructions
Variable Data type Function
s_Port Specification of slot number (high byte) and port number (low byte)
of the MCU to which the data is transmitted.
16#xx01: COM1 on MCU in slot 16#xx
16#xx02: COM2 on MCU in slot 16#xx
d1_Start Starting address of the receive buffer
d2_End
ANY16
Ending address of the receive buffer
For Relay T/C Register Constant
s_Port WX WY WR WL SV EV DT LD FL dec. or hex.
d1_Start - WY WR WL SV EV DT LD FL -
d2_End - WY WR WL SV EV DT LD FL -
No. IEC address Set If
R9007
%MX0.900.7 permanently
R9008
%MX0.900.8 for an instant
 the specified address using the index
modifier exceeds a limit
 the MCU unit does not exist in the
specified slot
 the specified communication port does
not exist
22.4.3 Flag operation in program controlled communication
Program controlled communication provides for half duplex communication, i.e. communication is possible in
both directions, but not simultaneously. Sending can be controlled by the "transmission done" flag. Reception
can be controlled by the "reception done" flag or by directly evaluating the receive buffer.
The flags are special internal relays which turn to TRUE or to FALSE under specific conditions. They can be
evaluated using special functions or system variables.
Data types
Operands
Error flags
Example

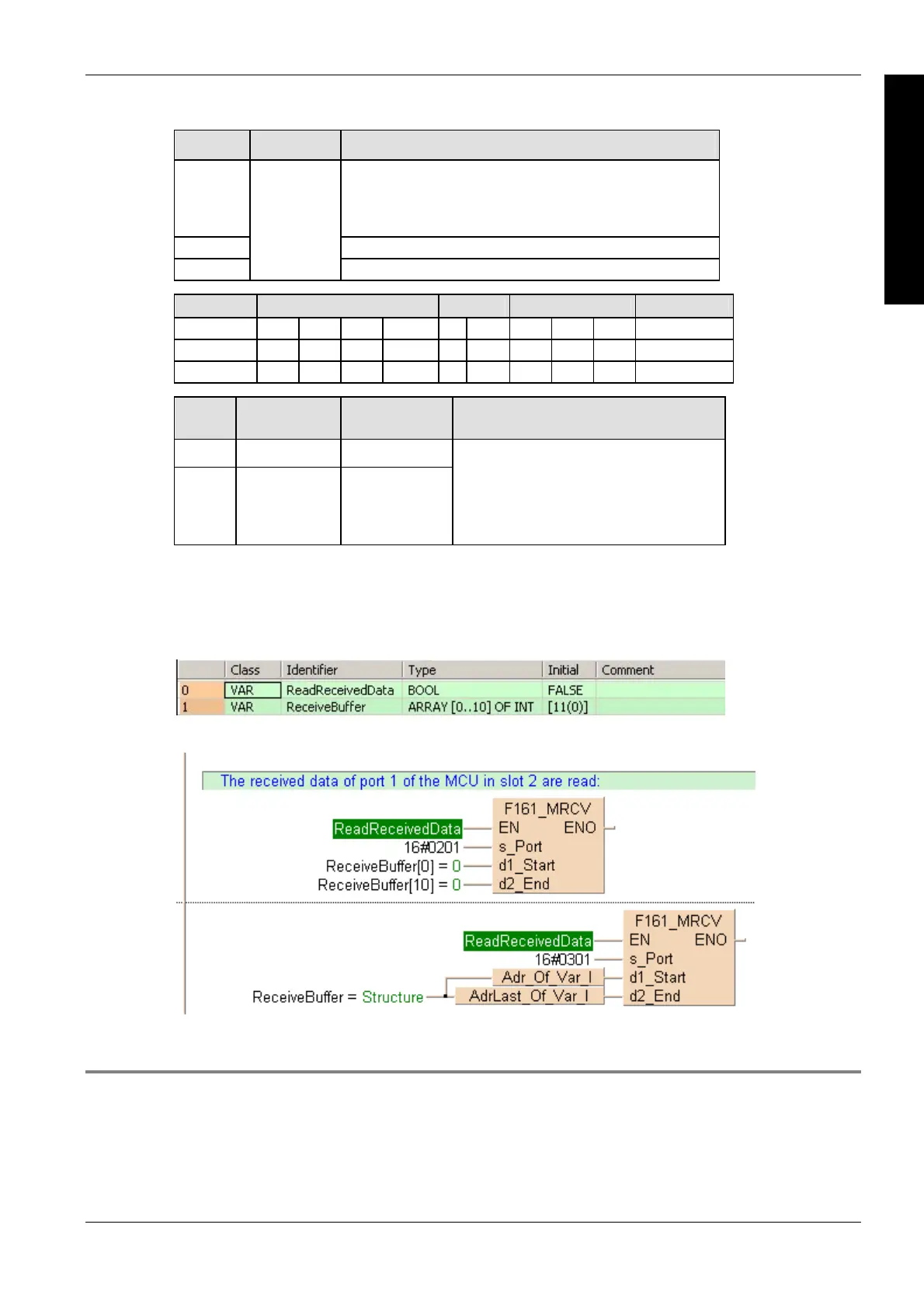

In this example the function is programmed in ladder diagram (LD). The same POU header is used
for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
