Bit-shift instructions
568
Part III FP Instructions

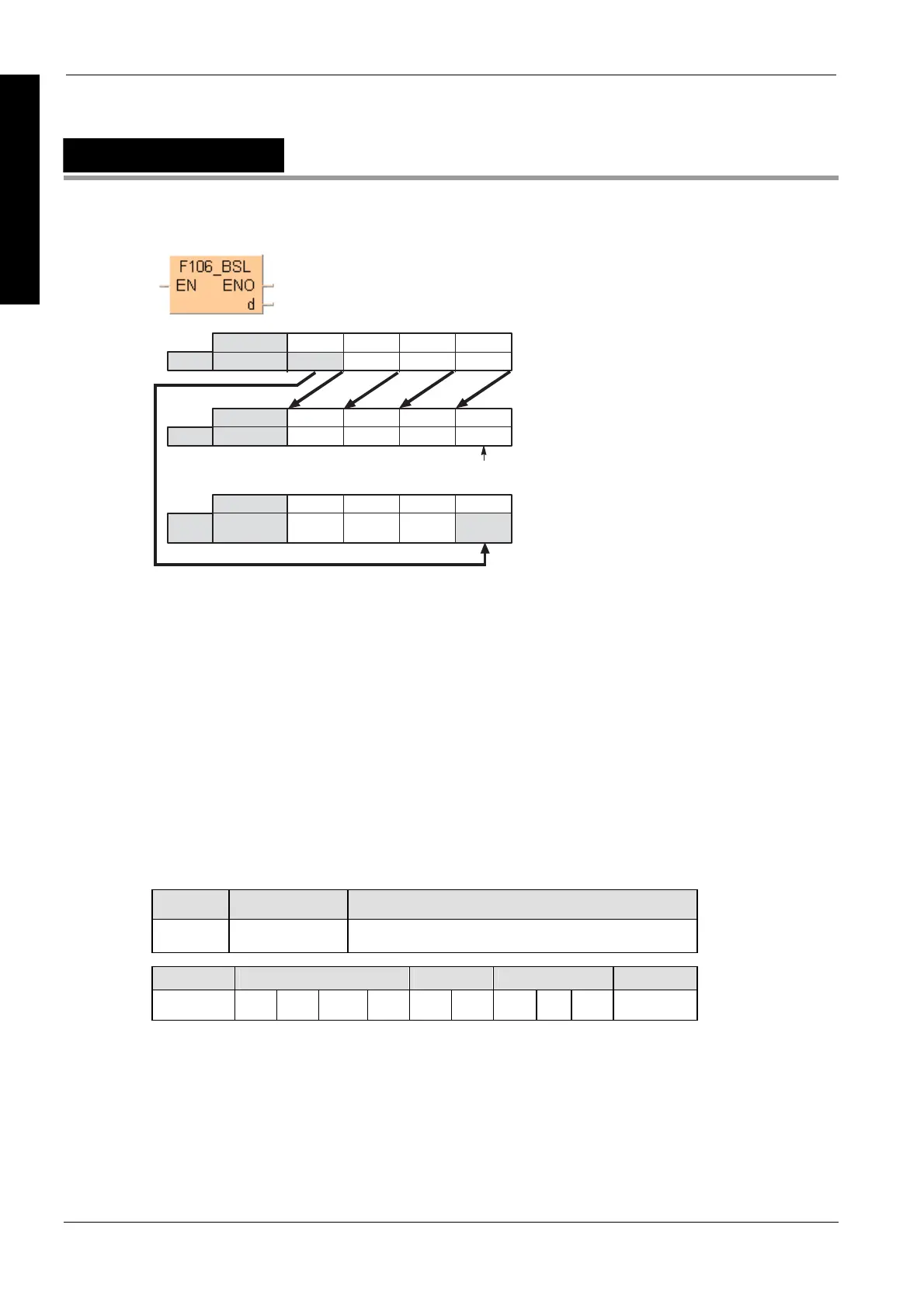

F106_BSL
Left shift of one hexadecimal digit (4 bits) of 16-bit data
·········
15 1211 8 7 4 3 0
d
·· ·· ·· ··
15 1211 8 7 4 3 0
0
d
·········
15 1211 8 7 4 3 0
000
DT9014/
DT90014
Bit position
Bit position
Bit position
Hexadecimal
Hexadecimal
Hexadecimal
This hexadecimal digit
position becomes 0.
Digit 4
Digit 4
Digit 3
Digit 3
Digit 2
Digit 2
Digit 1
Digit 1
When one hexadecimal digit (4 bits) is shifted to the left,
hexadecimal digit position 3 (bit position 12 to 15) of the data specified by d is
shifted out and is transferred to the lower digit (bit position 0 to 3) of special data
register DT9014 (DT90014 for FP2/2SH and FP10/10S/10SH).
hexadecimal digit position 0 (bit position 0 to 3) of the 16-bit area specified by d
becomes 0.
This instruction is useful when the hexadecimal or BCD data is handled.
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F106_BSL (see page 1320)
Variable Data type Function
d ANY16 16-bit area to be shifted to the left
For Relay T/C Register Constant
d - WY WR WL SV EV DT LD FL -
Description
Shifts one hexadecimal digit (4 bits) of the 16-bit area specified by d to the left (to the higher digit
position) if the trigger EN is in the ON-state.
Data types
Operands
Example
In this example, the same POU header is used for all programming languages. For an example
using IL (instruction list), please refer to the online help.
POU header
