Data transfer within the PLC
833
Part III FP Instructions

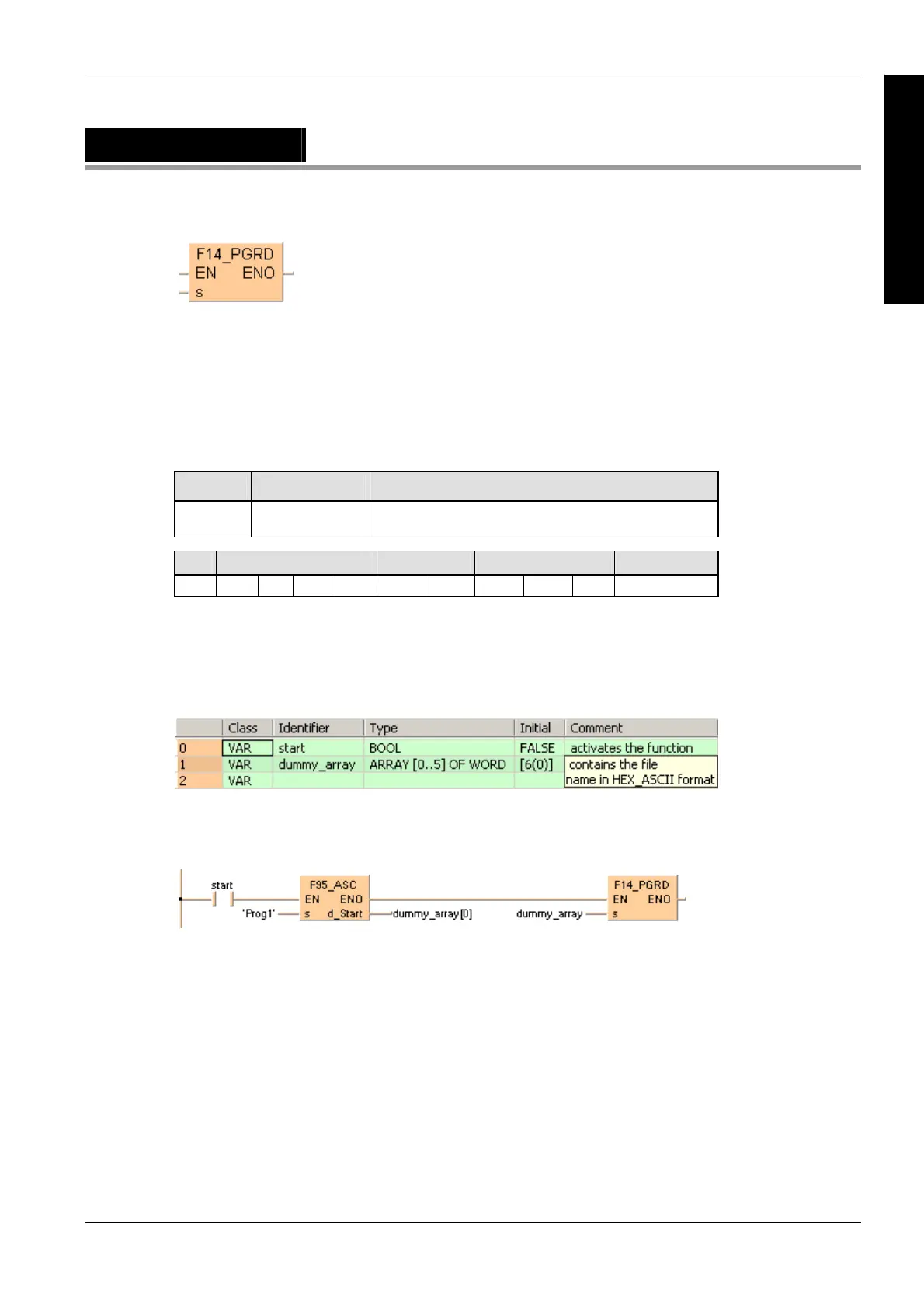

F14_PGRD
Program Read from IC card
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F14_PGRD (see page 1321)
Variable Data type Function
s ARRAY [0..5] of
WORD
starting address of area storing program
For Relay T/C Register Constant
s WX WY WR WL SV EV DT LD FL -
Description
When the execution criterion of F/P14_PGRD is turned ON, the execution proceeds until the END.
The program subsequently switches to the program specified by s.
Data types
Operands
Example
In this example, the same POU header is used for all programming languages. For an example
using IL (instruction list), please refer to the online help.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable start is set to TRUE, the function is carried out. The instruction reads the
program Prog1 from the IC card and executes it.
LD
ST
When programming with structured text, enter the following:
IF start THEN
F95_ASC( s:= 'Prog1',
d_Start=> dummy_array[0]);
F14_PGRD( dummy_array );
END_IF;
