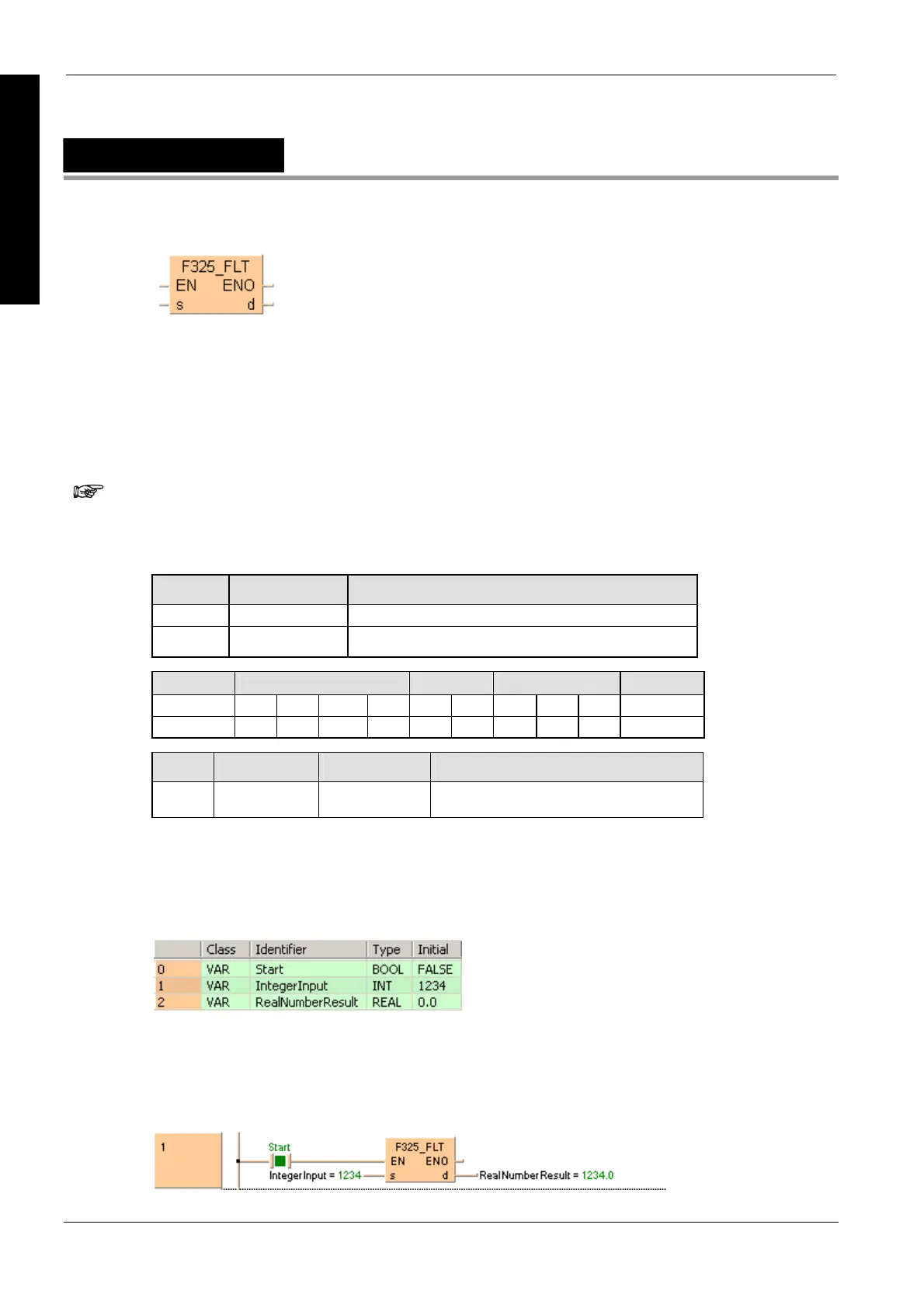

F325_FLT
16-Bit Integer Data to Floating Point Data Conversion
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F325_FLT (see page 1324)
F325_FLT cannot be programmed in the interrupt program.
Instead of using F325_FLT, you can use variables of the type REAL
with the more flexible instruction INT_TO_REAL (see page 193).
Variable Data type Function
s INT 16-bit integer data (source).
d REAL Floating point real number data for result (destination).
For Relay T/C Register Constant
s WX WY WR WL SV EV DT LD FL dec. or hex.
d - DWY DWR DWL DSV DEV DDT DLD DFL -
No. IEC address Set If
R900B %MX0.900.11 for an instant the result of processing is recognized as
"0".
Description
Converts the 16-bit integer data with sign specified by s to real number data. The converted data is
stored in d.
Data types
Operands
Error flags
Example
In this example, the same POU header is used for all programming languages. For an example
using IL (instruction list), please refer to the online help.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable Start is set to TRUE, the integer value entered for the variable IntegerInput is
converted to floating point data, and the result is stored at the address assigned by the compiler to
the variable RealNumberResult. The monitor value icon is activated for both the LD and IL bodies.
