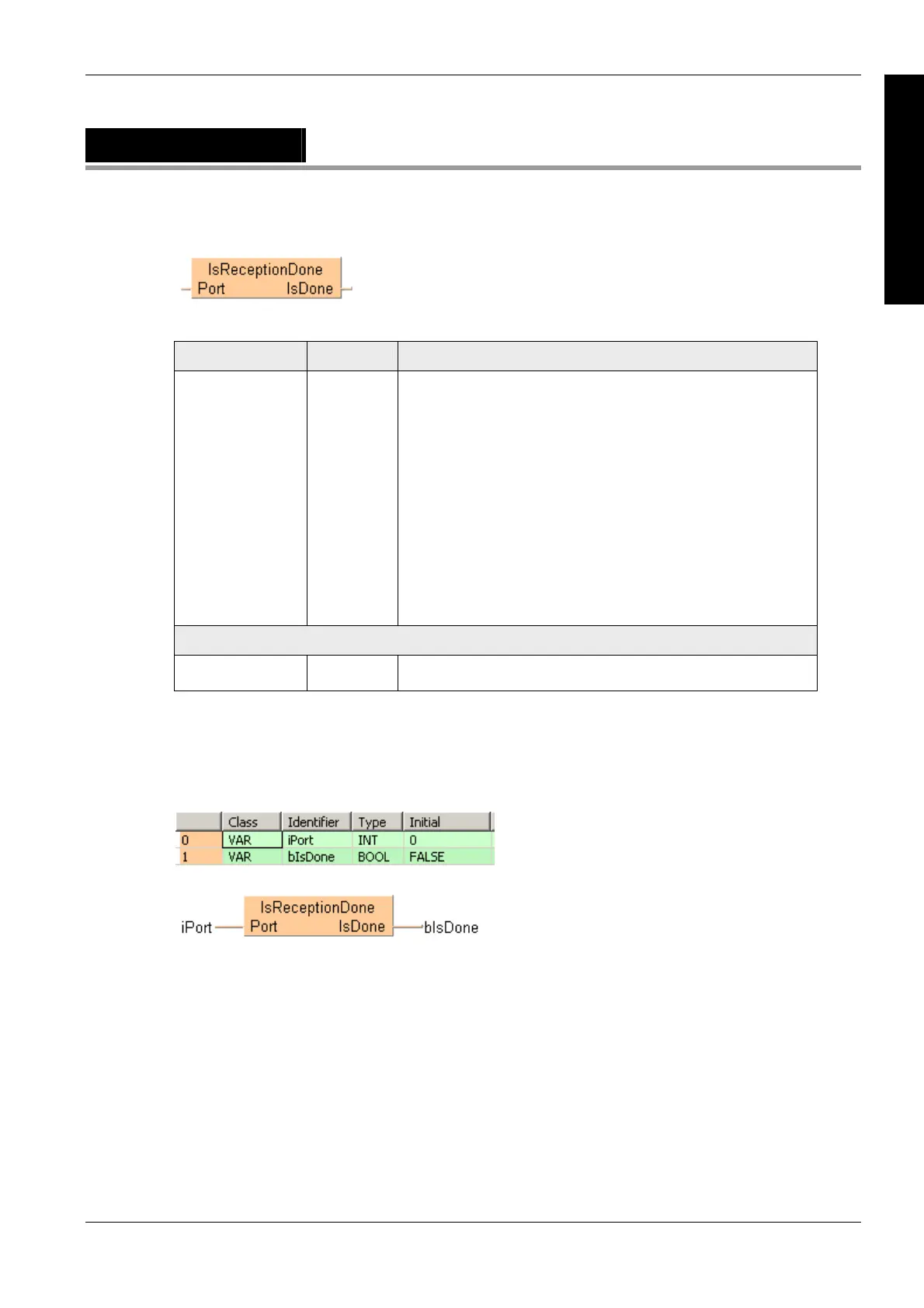

Data transfer via communication ports
761
Part III FP Instructions
IsReceptionDone
Evaluation of "reception done" flag for all ports
See also:
IsReceptionDoneByTimeOut (see page 761)
Input variable Data type Function
Port ANY16 Communication port
Must be a constant
FP-X, FP and FP2, FP2SH (V1.4 or later):
PLC communication ports:
Value: SYS_COM1_PORT or SYS_COM2_PORT or
SYS_TOOL_PORT
MCU communication port:
Value: 16#xx01 (COM1), 16#xx02 (COM2)
xx = slot number (hexadecimal) of the MCU (e.g. 16#0001: COM1 in slot
0, 16#0A02: COM2 in slot 10, 16#1401: COM1 in slot 20)
Other PLCs:
The command will be compiled to F144_TRNS, which works on the COM
port of the CPU (the parameter d_Port will be ignored)
Output variable
IsDone BOOL set to TRUE, if the end code has been received. The end code is
specified in the corresponding system register under COM port settings.
Description
This function returns the value of the "reception done" flag. The "reception done" flag is TRUE if
the end code has been received at the assigned communication port of the PLC.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text
(ST).The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
ST
bIsDone:=IsReceptionDone(Port := iPort);
