Panasonic FP Series User Manual

High-speed counter instructions
1150
Part IV Tool Instructions

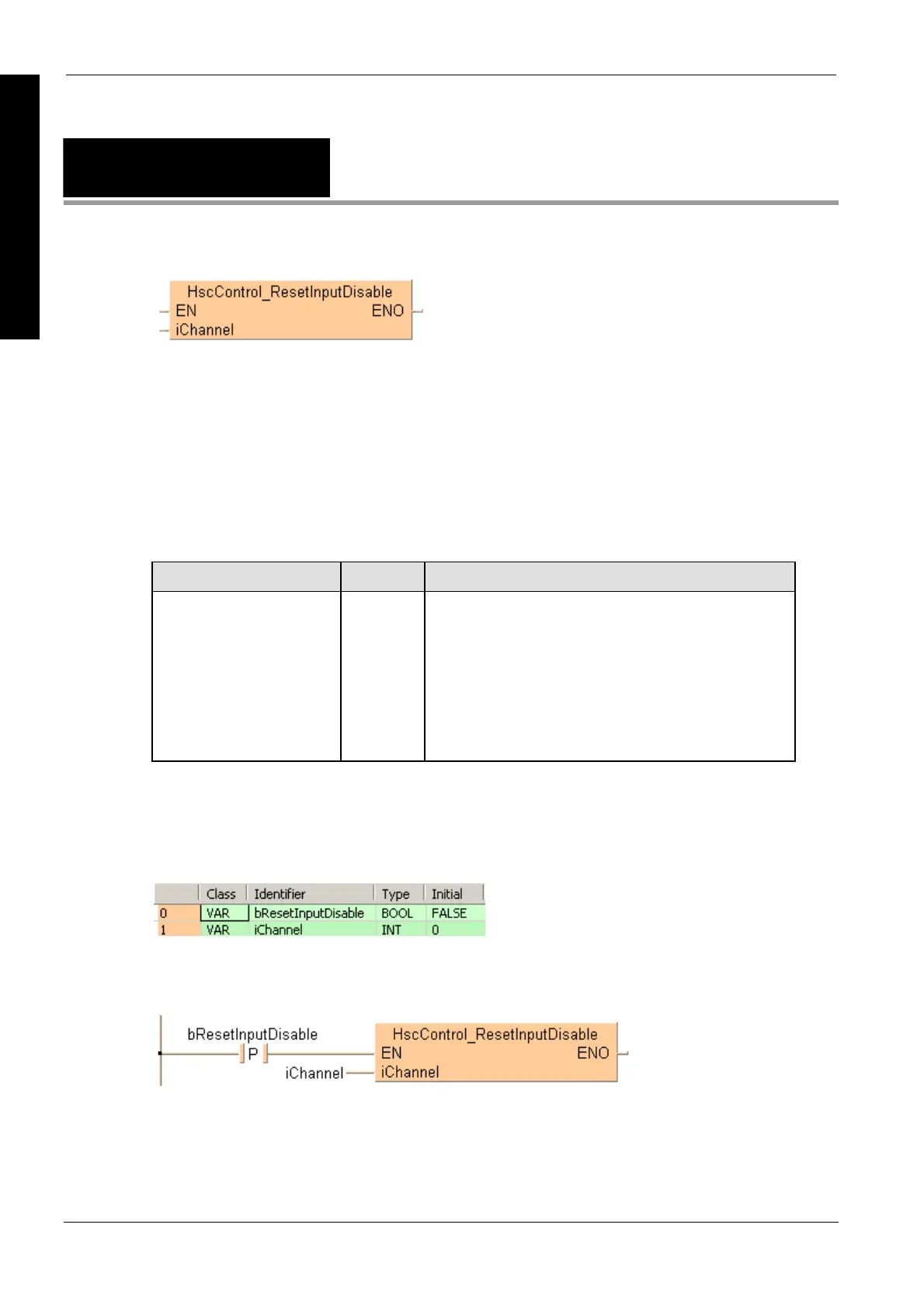

HscControl_ResetInput
Disable
Disables reset input
See also:
 Tool instructions: overview of high-speed counter instructions
 HscInfo_IsResetInputDisabled (see page 1161)
To add an enable inp
ut and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types see page 1327
Variable Data type Function
iChannel INT High-speed counter channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Description
This instruction disables the reset input of the high-speed counter channel specified by iChannel.
Bit 2 of the high-speed counter control code (see page 891) is set to TRUE.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable bResetInputDisable changes from FALSE to TRUE, the reset input of the
channel specified by iChannel is disabled.
LD
ST
When programming with structured text, enter the following:
if DF(bResetInputDisable) then
HscControl_ResetInputDisable(iChannel := iChannel);
end_if;
