Panasonic FP Series User Manual

Conversion instructions
157
Part II IEC Instructions

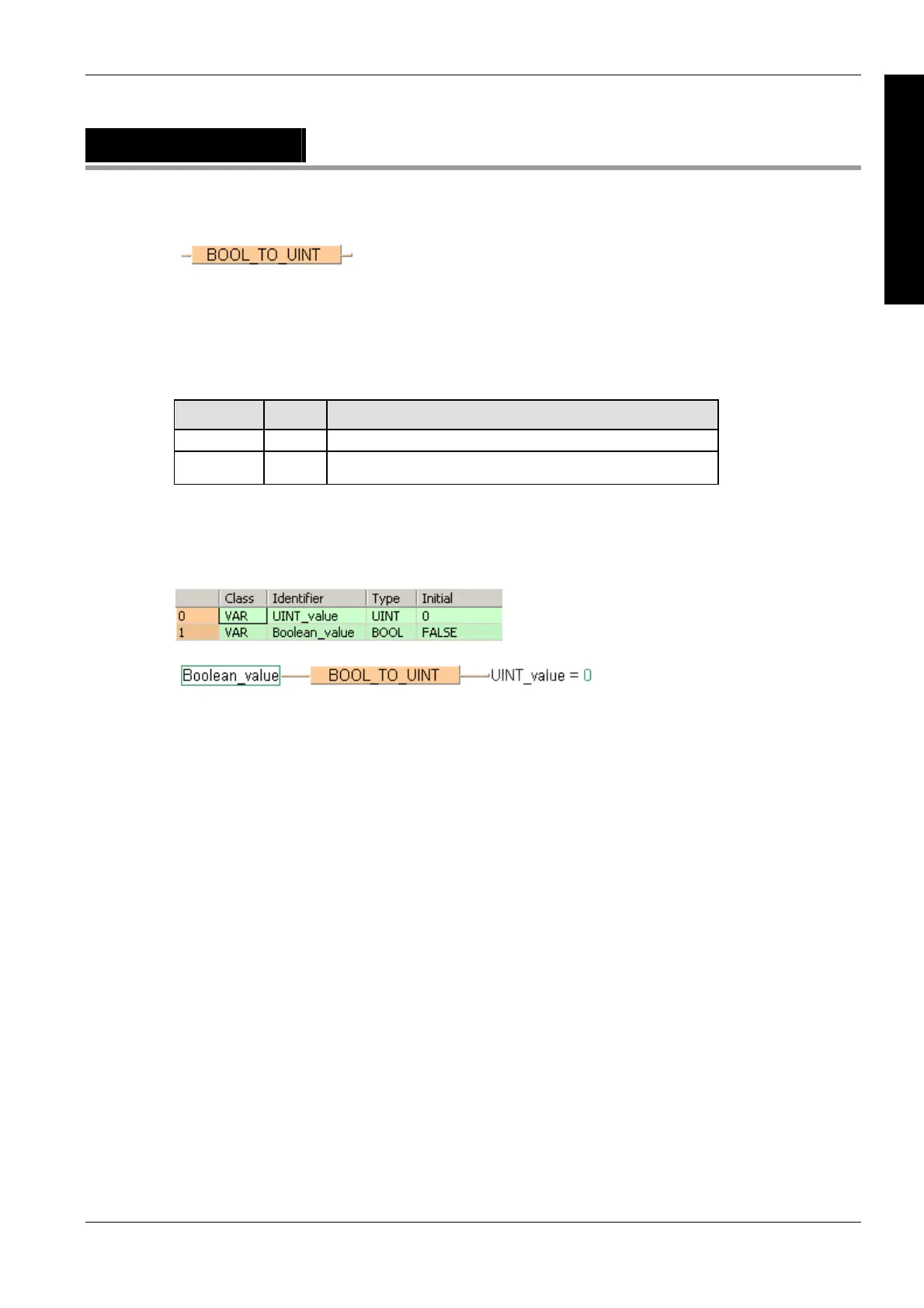

BOOL_TO_UINT
BOOL into Unsigned INTEGER
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
PLC types
Availability of BOOL_TO_UINT (see page 1318)
Data type I/O Function
BOOL Input input data type
UINT Output conversion result
Description
BOOL_TO_UINT converts a value of the data type BOOL into a value of the data type Unsigned
INTEGER.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
ST
UINT_value:= BOOL_TO_UINT(Boolean_value);
