Program execution control instructions
1016
Part III FP Instructions

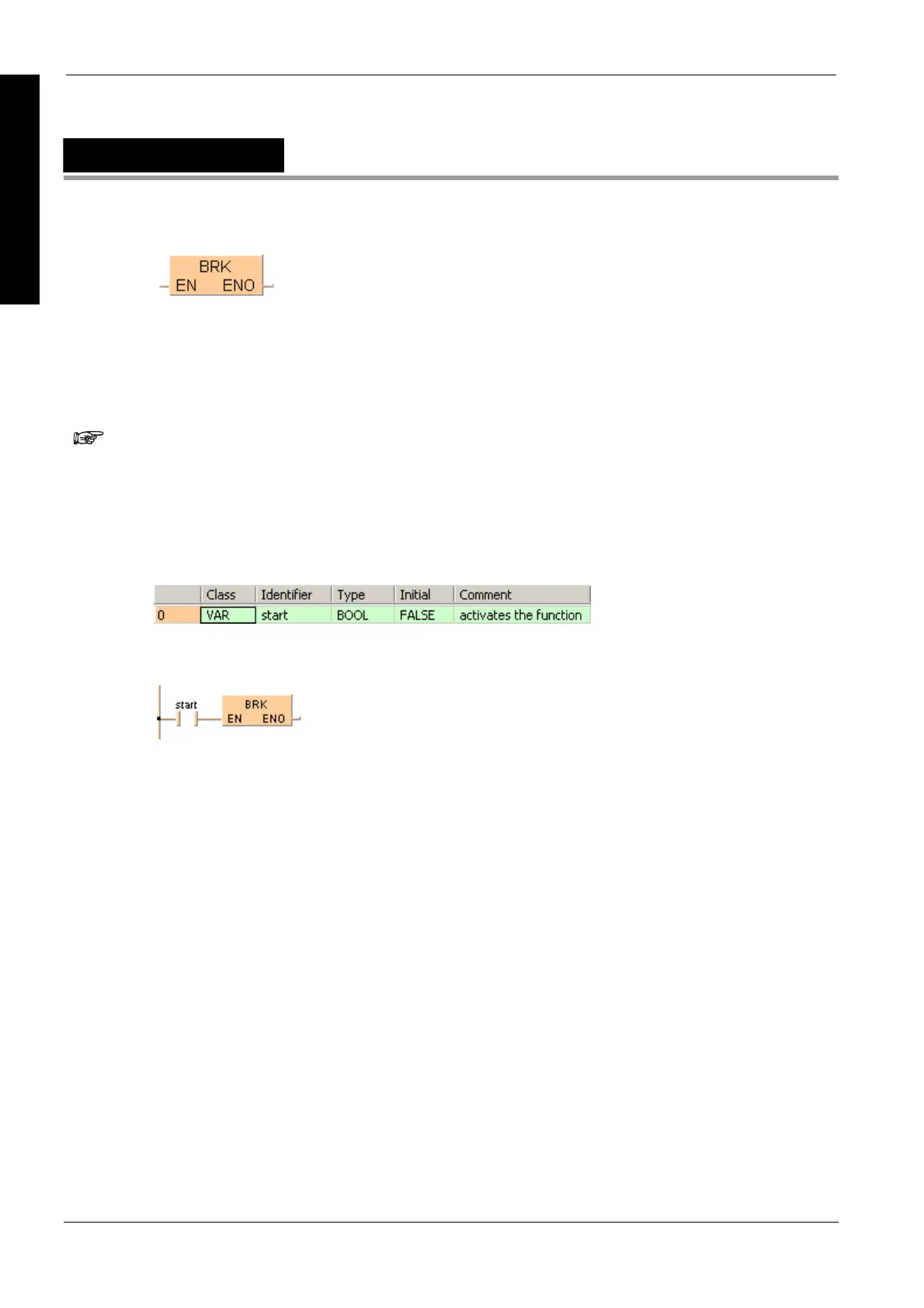

BRK
Break
Once this instruction is executed, the program halts. To continue the program, the mode in the test
run (continuous run / step run) should be selected. In the step run mode, the program is executed
instruction by instruction regardless of the instructions and in the continuous run mode, the
program is executed until it is stopped by the next break instruction (BRK) or the end of the
program (end instruction ED).
The test run mode is executed, when the mode selector switch on the PLC is
set to RUN mode with setting the INITIALIZE/TEST switch to the TEST mode.
Description
The BRK (Breakpoint) instruction stops the execution at the address of this instruction during the
test run mode if the trigger EN is in the ON-state.
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
When the variable start is set to TRUE, the function is carried out.
LD
ST
When programming with structured text, enter the following:
IF start THEN
BRK();
END_IF;

Panasonic FP Series Specifications

General

Mounting	DIN rail
Type	PLC
Communication Interface	RS-232, RS-485, Ethernet (depending on model)
Input Voltage	100-240V AC or 24V DC (depending on model)
Output Type	Relay, Transistor
I/O Points	Varies by model
Operating Temperature	0°C to 55°C
Dimensions	Varies by model
Weight	Varies by model
