Panasonic FP Series User Manual

Bit-shift instructions
578
Part III FP Instructions

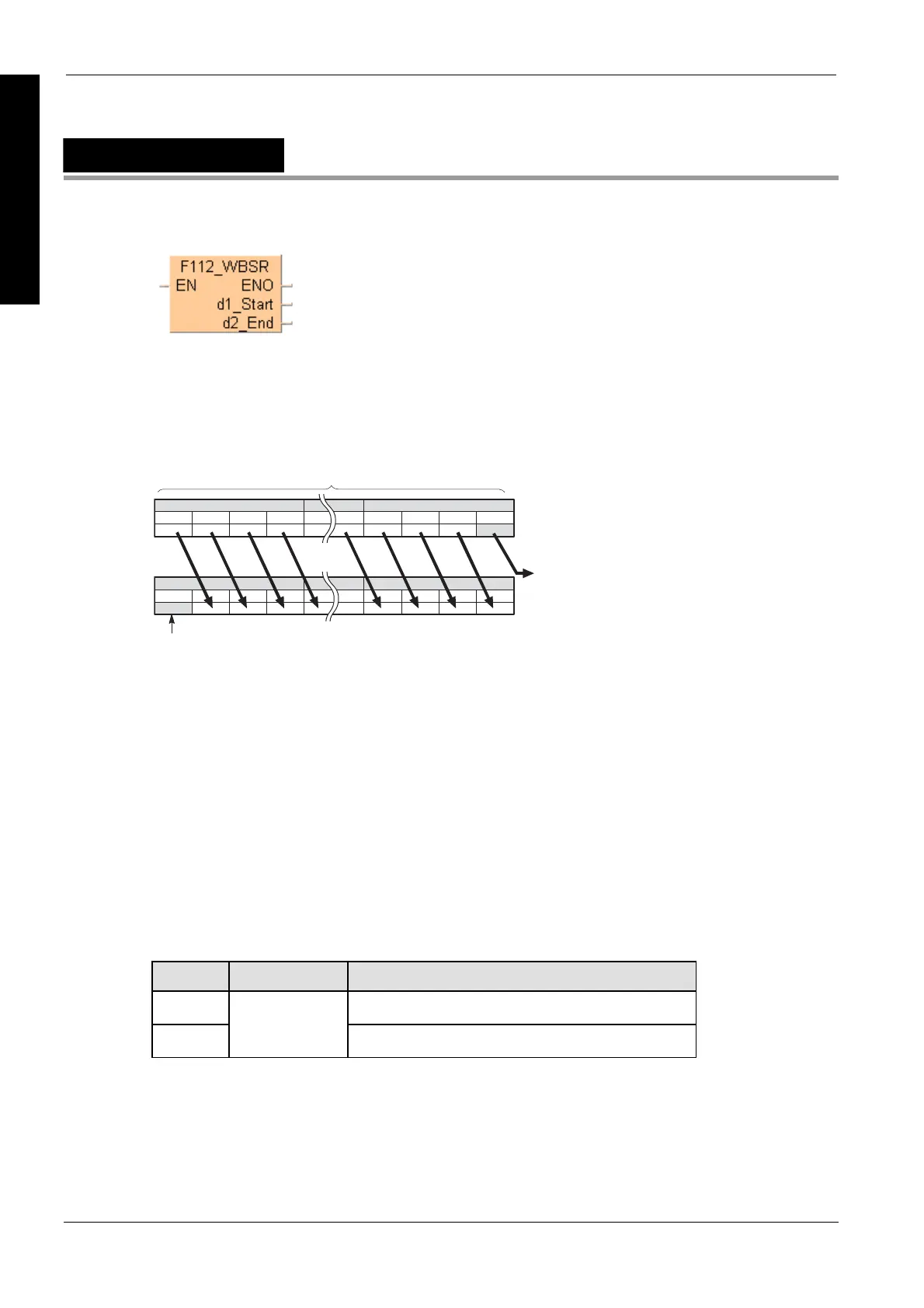

F112_WBSR
Right shift of one hex. digit (4 bits) of 16-bit 5 data range
When one hexadecimal digit (4 bits) is shifted to the right:
 the data in the lower hexadecimal digit (bit position 0 to 3) of the 16-bit data
specified by d1 is shifted out.
 the data in the higher hexadecimal digit (bit position 12 to 15) of the 16-bit data
specified by d2 becomes 0.
·· · · · · · ·
15 1211 8 7 4 3 0
d2
·· ·· ·· ··
15 1211 8 7 4 3 0
d1
0
·· · · · · · ·
15 1211 8 7 4 3 0
d2
·· ·· ·· ··
15 1211 8 7 4 3 0
d1
··
15
··
15
··
0
··
0
Specified data range
The higher hexadecimal
digit (bit positions 12 to
15) becomes 0
The data in the lower
hexadecimal digit (bit
positions 0 to 3) is
shifted out
d1 and d2 should be:
 the same type of operand
 d1  d2
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types Availability of F112_WBSR (see page 1320)
Variable Data type Function
d1 starting 16-bit area
d2
ANY16
ending 16-bit area
The variables d1 and d2 have to be of the same data type.
Description
Shifts one hexadecimal digit (4 bits) of the data range specified by d1 (starting) and d2 (ending) to
the right (to the lower digit position) if the trigger EN is in the ON-state.
Data types
