Conversion instructions
248
Part II IEC Instructions

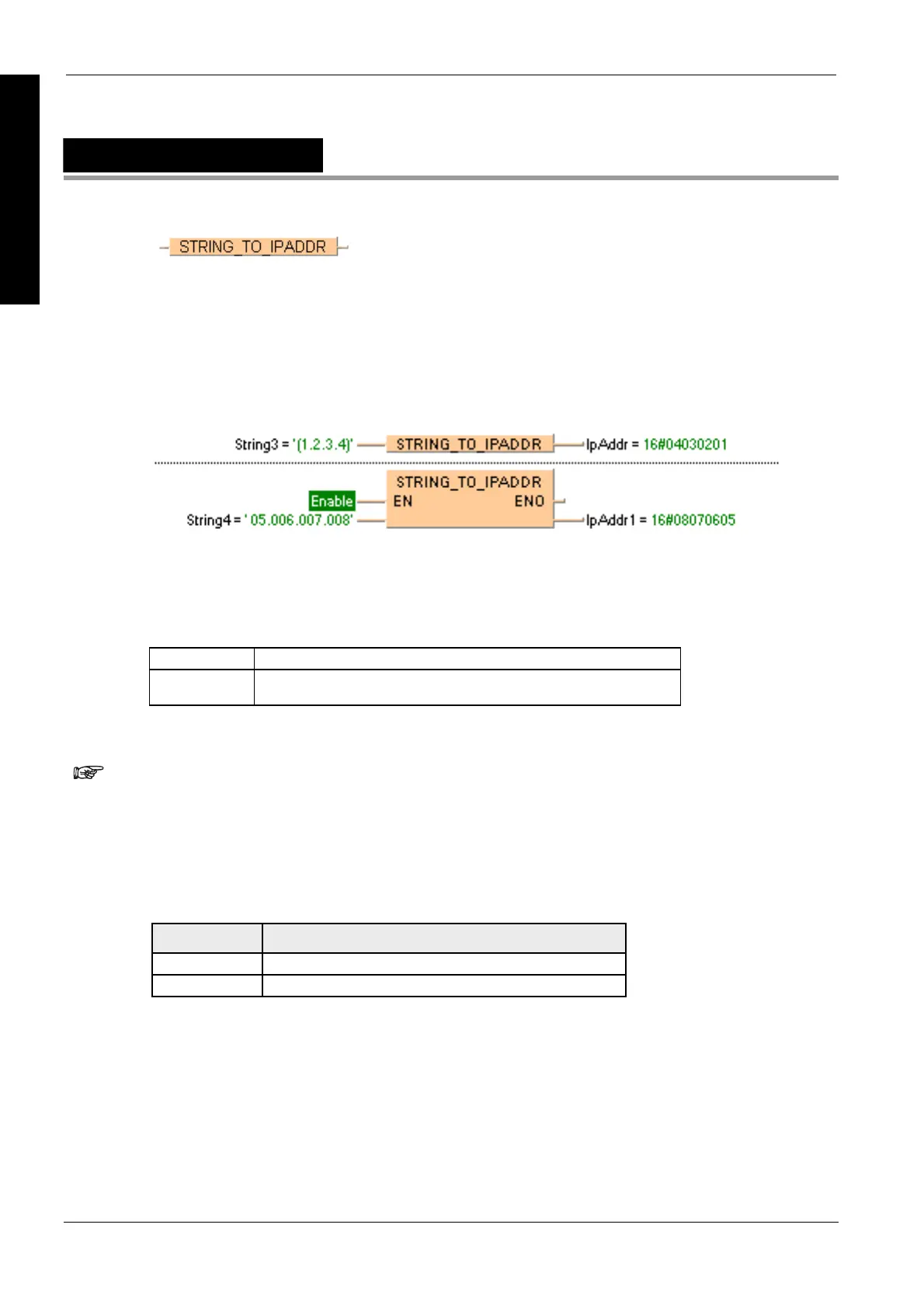

STRING_TO_IPADDR
STRING to IP Address
Thereby the attached string is first converted to a value of the data type STRING[32]. Finally this is
converted to a value of the data type DWORD via a sub-programm of approx. 330 steps that is also
used in the functions STRING_TO_IPADDR and STRING_TO_ETLANADDR.
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
See also: STRING_TO_IPADDR_STEPSAVER (see page 248)
Permissible forma
t:
'[Space]Octet
1.Octet2.Octet3.Octet4[Space]', e.g.: ' [192.168.206.4] '
Permissible characters:
Space All characters except for decimal numbers
Octets 1-4 Decimal numbers "0“-"9“, maximal 3 positions, with or without leading
zeros in the range 0-255
PLC types
Availability of STRING_TO_IPADDR (see page 1331)
The analysis ends with the first non-decimal number after the 4th octet
or in case of a format error.
If the format is wrong the result is 0.
The conversion is such that the first octet represents the lowest byte
of the IP address and the fourth octet the highest byte of the ET-LAN
address. The format corresponds to the standard format as used in
"Standard Socket Application Interfaces", for example.
Data type Comment
STRING input variable
DWORD output variable
Description
This function converts a STRING in IP address format into a value of the data type DWORD.
Example:
Data types
