Date and time instructions
866
Part III FP Instructions

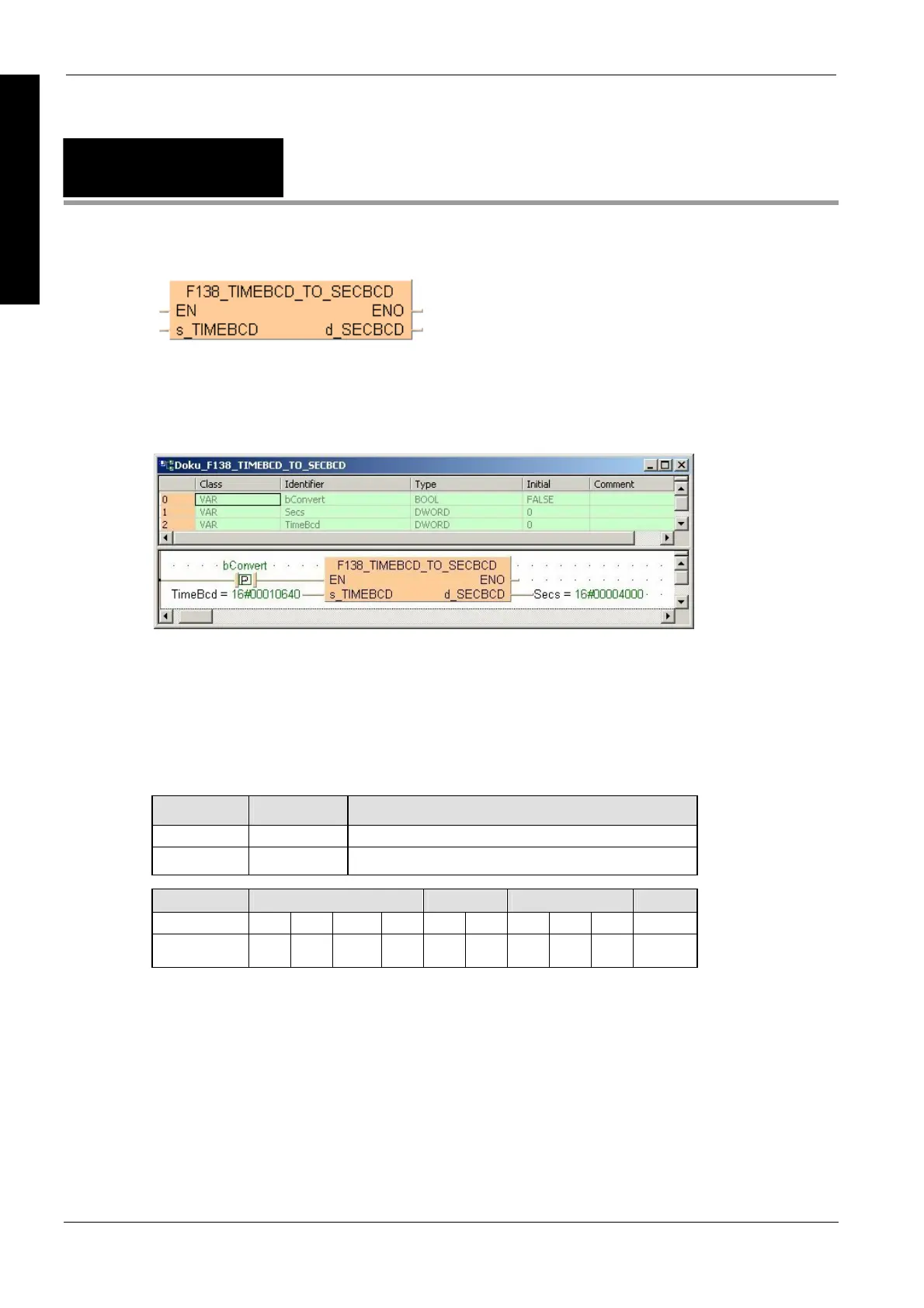

F138_TIMEBCD_TO
_SECBCD
h:min:s -> s conversion
The converted seconds data is stored in the 32-bit area specified by d_SECBCD. All hours,
minutes, and seconds data to convert and the converted seconds data is BCD. The max. data input
value is 9,999 hours, 59 minutes and 59 seconds, which will be converted to 35,999,999 seconds
in BCD format.
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F138_TIMEBCD_TO_SECBCD (see page 1321)
Variable Data type Function
s_TIMEBCD DWORD source area for storing hours, minutes and seconds data
d_SECBCD DWORD destination area for storing converted seconds data
For Relay T/C Register Const.
s_TIMEBCD DWX DWY DWR DWL DSV DEV DDT DLD DFL -
d_SECBCD - DWY DWR DWL DSV DEV DDT DLD DFL -
Description
Converts the hours, minutes, and seconds data stored in the 32-bit area specified by s_TIMEBCD
to seconds data if the trigger EN is in the ON-state.
Example
Data types
Operands
