Arithmetic instructions
354
Part III FP Instructions

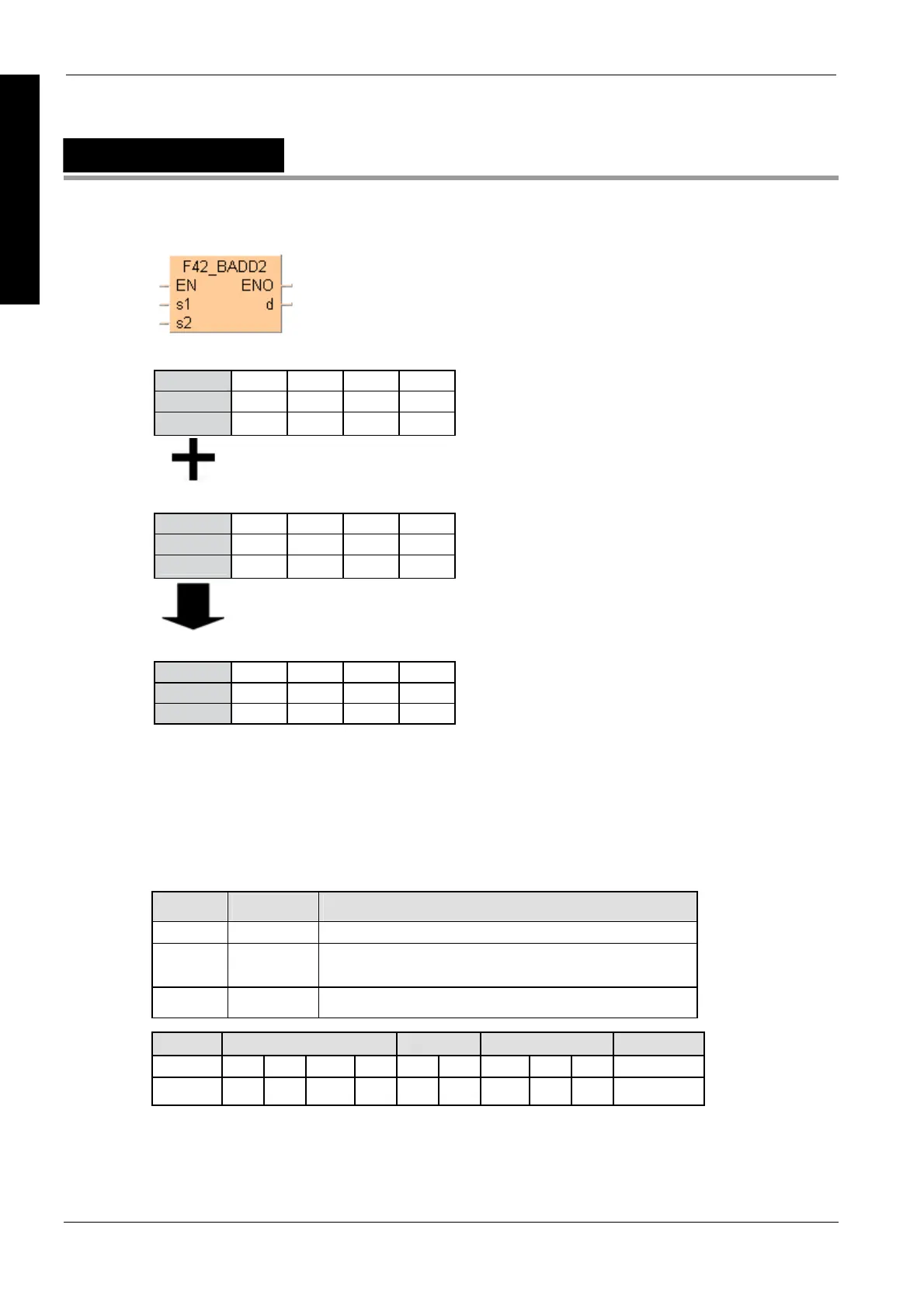

F42_BADD2
4-digit BCD addition, destination can be specified
15 . . 12 10 . . 8 7 . . 4 3 . . 0
s1
0 1 0 0 0 0 1 1 0 0 1 0 0 0 0 1
16# (BCD)
15 . . 12 10 . . 8 7 . . 4 3 . . 0
s2
0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0
16# (BCD)
15 . . 12 10 . . 8 7 . . 4 3 . . 0
d
0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
16# (BCD)
4 3 2 1
1 2 3 4
5 5 5 5
Bit
Example value 16#4321 (BCD)
Example value 16#1234 (BCD)
Result value 16#5555 (BCD) if trigger is ON
Bit
Bit
This instruction also exists as a P instruction (for FP2/2SH, FP3/5, FP10/10SH PLC types), which
is only executed at the rising edge of the EN trigger. Select [Insert P instruction] from the
"Instructions" pane if you require a P instruction. To facilitate reuse, the instruction then appears
under "Recently used" in the pop-up menu. Press <Ctrl>+<Shift>+<v> within the programming
area to open the list of recently used elements.
PLC types
Availability of F42_BADD2 (see page 1325)
Variable Data type Function
s1 WORD augend, 16-bit area for 4-digit BCD data or equivalent constant
s2 WORD addend, 16-bit area for 4-digit BCD data or equivalent constant
d WORD sum, 16-bit area for 4-digit BCD data
For Relay T/C Register Constant
s1, s2 WX WY WR WL SV EV DT LD FL dec. or hex.
d - WY WR WL SV EV DT LD FL -
Description
The 4-digit BCD equivalent constant or 16-bit area for 4-digit BCD data specified by s1 and s2 are
added together if the trigger EN is in the ON-state. The result is stored in d.
Data types
Operands
