Panasonic FP Series User Manual

Pulse output instructions
1229
Part IV Tool Instructions

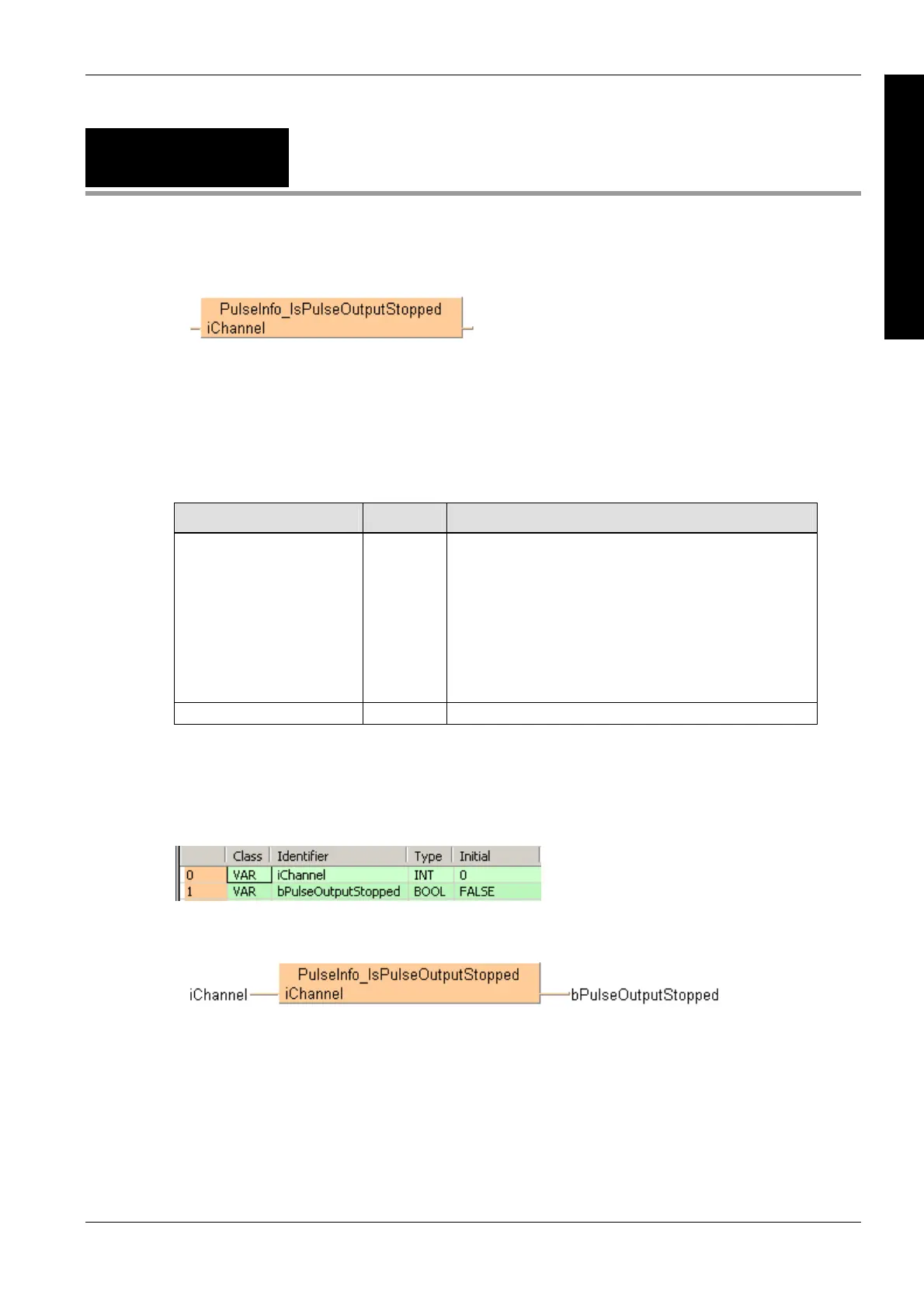

PulseInfo_IsPulse
OutputStopped
Check if pulse output has stopped
See also:
 Pulse output tool instructions in the online help
 Stopping pulse output
PLC types see page 1329
Variable Data type Function
iChannel INT Pulse output channel:
FP
: 0, 2
FP-X R: 0, 1
FP-X 16K C14T: 0, 1, 2
FP-X 32K C30T, C60T: 0, 1, 2, 3
FP0R: 0, 1, 2, 3
FP0: 0, 1
FP-e: 0, 1
Output variable BOOL TRUE if pulse output has been stopped
Description
This instruction returns TRUE if pulse output has been stopped, e.g. with
PulseControl_DeceleratedStop (see page 1202) or PulseControl_PulseOutputStop (see page
1213). Use PulseControl_PulseOutputContinue (see page 1211) to resume pulse output.
Data types
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
The same POU header is used for all programming languages.
POU header
All input and output variables used for programming this function have been declared in the POU
header.
Body
LD
ST
When programming with structured text, enter the following:
if (bPulseOutput_Check) then
bPulseOutputStopped := PulseInfo_IsPulseOutputStopped(iChannel :=
iChannel);
end_if;
