Panasonic FP Series User Manual

Basics
38
Example:

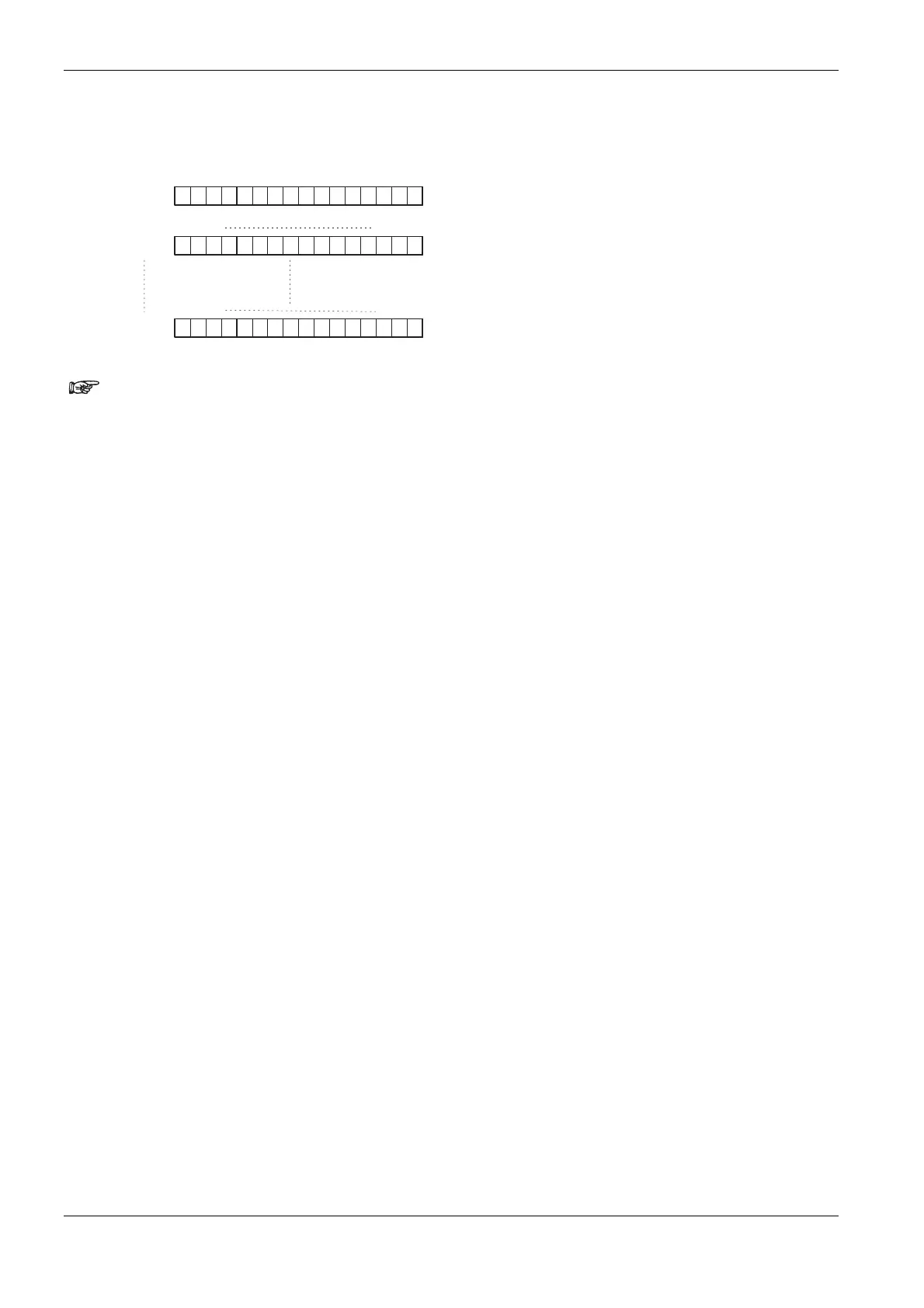

Configuration of word external input relay (WX)
XF XEXDXCXBXA X9X8 X7 X6 X5X4 X3X2 X1 X0
WX0
X1FX1EX1D
X12X11X10
WX1
X12FX12EX12D
X122X121X120
WX12
Since the contents of the word relay correspond to the state of its relays
(components), if some relays are turned ON, the contents of the word
change.

Panasonic FP Series Specifications

General

Mounting	DIN rail
Type	PLC
Communication Interface	RS-232, RS-485, Ethernet (depending on model)
Input Voltage	100-240V AC or 24V DC (depending on model)
Output Type	Relay, Transistor
I/O Points	Varies by model
Operating Temperature	0°C to 55°C
Dimensions	Varies by model
Weight	Varies by model
