Panasonic FP Series User Manual

Data transfer via communication ports
716
Part III FP Instructions
End code: CR

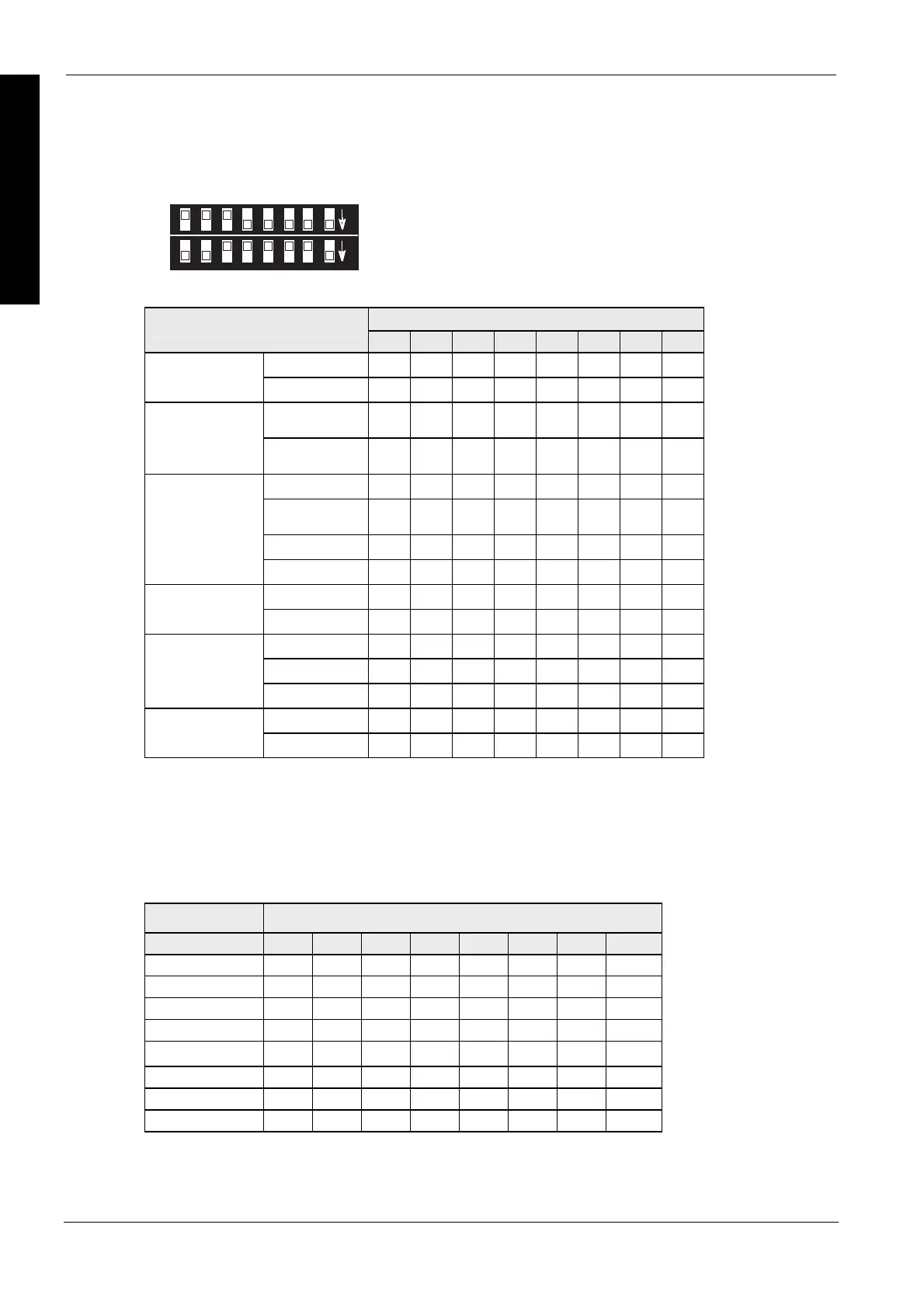

The setting must match the external device connected to the communication port. Use the upper
row of operation mode switches:
12345678
12345678
Upper DIP switches
Lower DIP switches
off
on
off
on
Operation mode switches (upper row)
Settings
Functions
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
Disabled off MODEM control
Enabled on
STX (16#02)
invalid
off Start code
STX (16#02)
valid
on
None off off
CR (16#0D) and
LF (16#0A)
on off
CR (16#0D) off on
End code
EXT (16#03) on on
2 bits off Stop bit
1 bit on
None off off
Even on off
Parity check
Odd on on
7 bits off Data length
(character bit)
8 bits on
2. Set the baud rate
The default baud rate is 9600bit/s.
The setting must match the external device connected to the communication port. Use the lower
row of operation mode switches:
Operation mode switches (lower row)
Functions Settings
Baud rate [bit/s] SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8
115200 - - - - - off off off
57600 - - - - - on off off
38400 - - - - - off on off
19200 - - - - - on on off
9600 - - - - - off off on
4800 - - - - - on off on
2400 - - - - - off on on
1200 - - - - - on on on
