Data transfer via communication ports
751
Part III FP Instructions

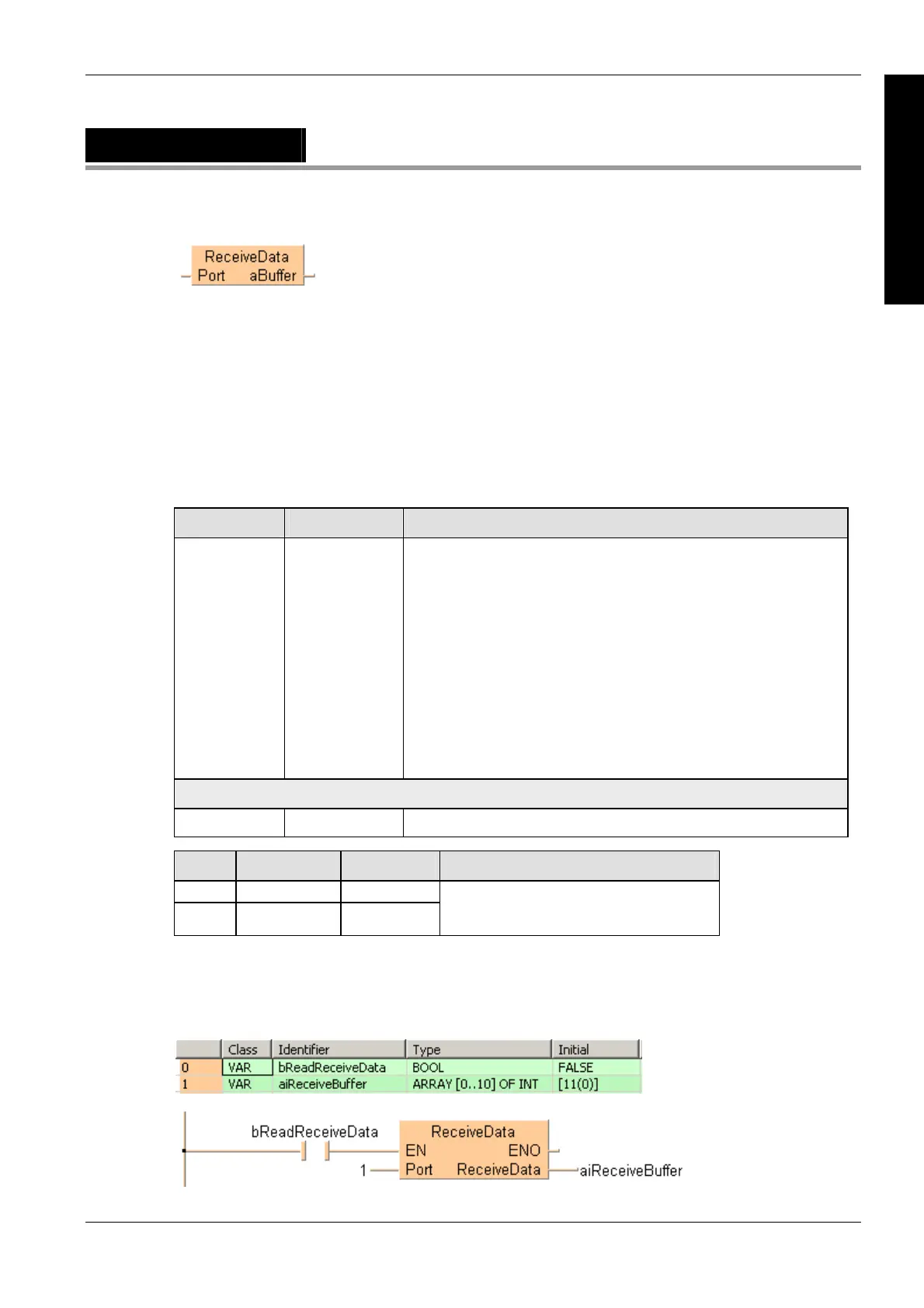

ReceiveData
Receive data from CPU or MCU port
To add an enable input and enable output to the instruction, select [With EN/ENO] from the
"Instructions" pane (LD, FBD or IL editor). To reuse an instruction select "Recently used" from the
context menu or press <Ctrl>+<Shift>+<v> in the programming window.
See also:
 ReceiveCharacters (see page 752)
 ClearRec
eiveBuffer (see page 753)
PLC types see see page 1330
Input variable Data type Function
Port
ANY16
 Communication port
 Must be a constant
FP-X, FP and FP2, FP2SH (V1.4 or later):
 PLC communication ports:
Value: SYS_COM1_PORT or SYS_COM2_PORT or SYS_TOOL_PORT
 MCU communication port:
Value: 16#xx01 (COM1), 16#xx02 (COM2)
xx = slot number (hexadecimal) of the MCU (e.g. 16#0001: COM1 in slot 0,
16#0A02: COM2 in slot 10, 16#1401: COM1 in slot 20)
Other PLCs:
The command will be compiled to F144_TRNS, which works on the COM port
of the CPU (the parameter d_Port will be ignored)
Output variable
aBuffer
ANY
stores the receive data
No. IEC address Set If
R9007 %MX0.900.7 permanently
R9008 %MX0.900.8 for an instant
 the MCU unit does not exist at the slot no.
specified by 'Port'.
Description
This instruction copies the received data of the port specified by the variable at Port into the data
applied at aBuffer.
Data types
Error flags
Example
In this example the function has been programmed in ladder diagram (LD) and structured text (ST).
POU header
All input and output variables used for programming this function have been declared in the POU
header.
LD
