High-speed counter instructions
905
Part III FP Instructions

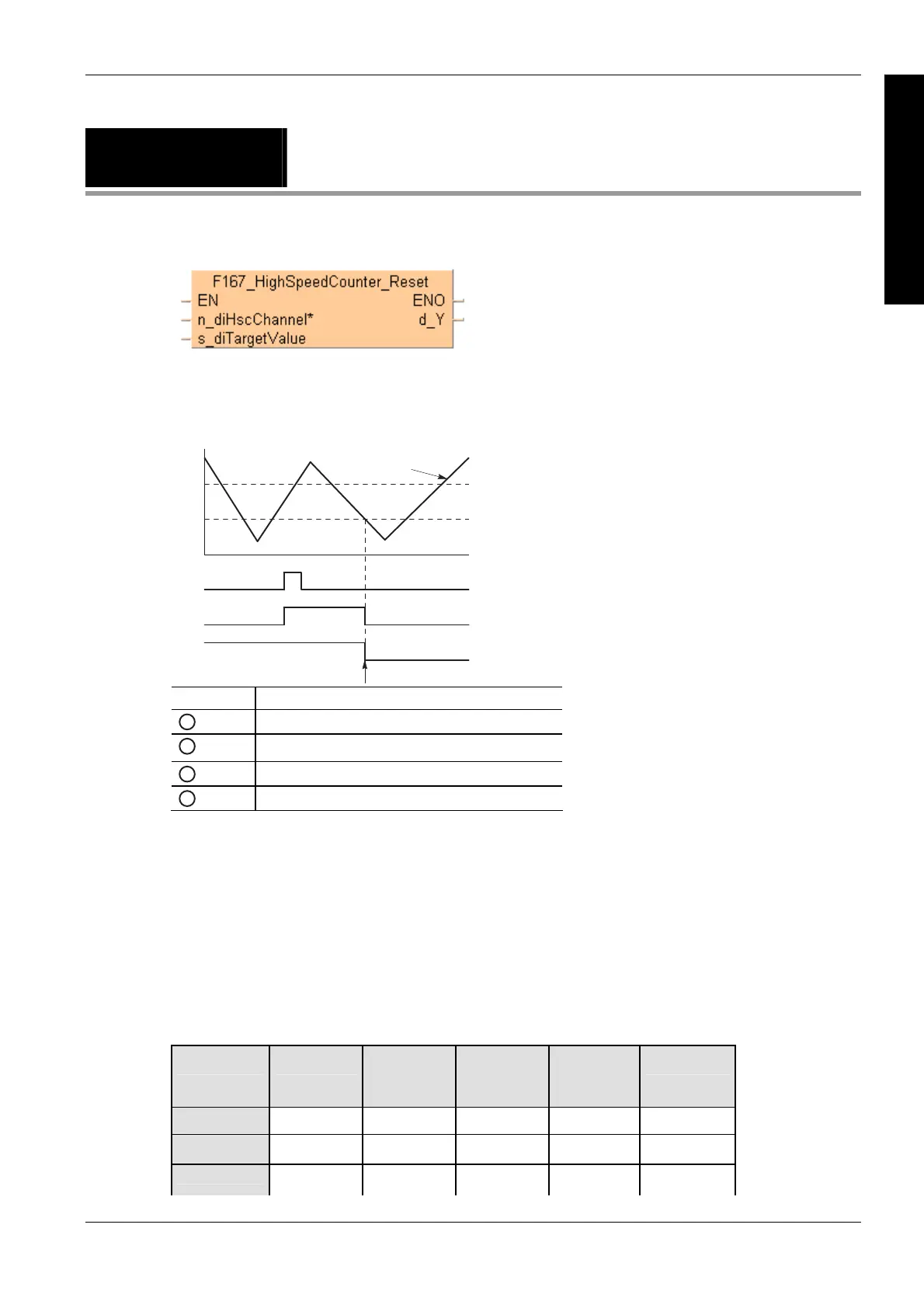

F167_HighSpeed
Counter_Reset
Target value match OFF (high-speed counter)
See also:
Hsc_TargetValueMatch_Reset (see page 1166)
Characteristics of target value match OFF control
1
2
4
3
0
-200
-200 Target value
1
Elapsed value of high-speed counter
2
Execution condition
3
High-speed counter control flag
4
PLC output
The PLC output turns to FALSE when the elapsed value matches the target value. In addition, the
high-speed counter control flag turns to FALSE and the instruction is deactivated.
If an output is specified that has not been implemented, only the internal memory of the
corresponding WY address is set or reset.
Interrupt operation
The interrupt program will be executed when the elapsed value matches the target value. Any
interrupt that has been entered into the Tasks list is automatically enabled. A special interrupt
program number is assigned to each channel number.
Channels used by interrupt programs:
PLC type FP0, FP-e
FP
FP-X (Relay
types)
FP-X
(Transistor
types)
FP0R
Interrupt 0 Channel 0 Channel 0 Channel 0 Channel 0 Channel 0
Interrupt 1 Channel 1 Channel 1 Channel 1 Channel 1 Channel 1
Interrupt 2 Channel 2 Channel 2
Description
If the elapsed value of the high-speed counter matches the target value, an interrupt process
immediately turns the specified output to FALSE.
