Chapter 3: FRU Removal and Replacement Procedures
Opening and Closing the Node
80 Quantum DXi6900 G1 User’s Guide

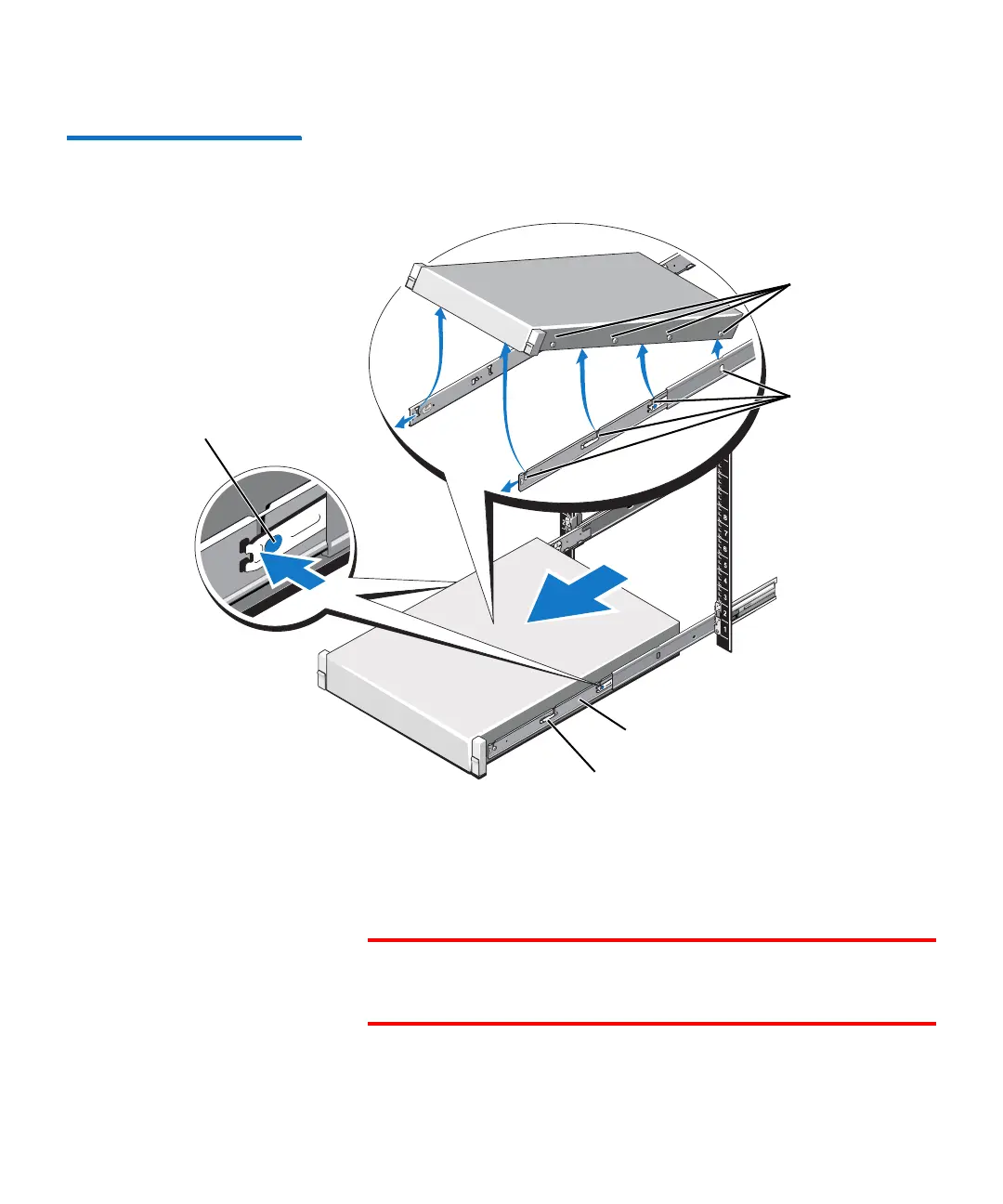

Figure 37 Removing the
DXi6900 G1 Node from the
Rack
6 Grasp the sides of the Node firmly and pull it forward until the rail
standoffs are at the front of the J-slots.
7 Lift the Node up and away from the rack and place it on a level
surface.
WARNING: The DXi6900 G1 Node (including hard drives) weighs
53.0 pounds (24.0 kg). A minimum of two people are
required to lift the chassis.
Inner slide rails
Rear rail standoffs
Rear rail J-slots
Slide-release lock button
Lock lever
