Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing a Node Processor and Heatsink
Quantum DXi6900 G1 User’s Guide 157
Note: After removing the processor, place it in an antistatic
container for reuse, return, or temporary storage. Do not
touch the bottom of the processor. Touch only the side
edges of the processor.

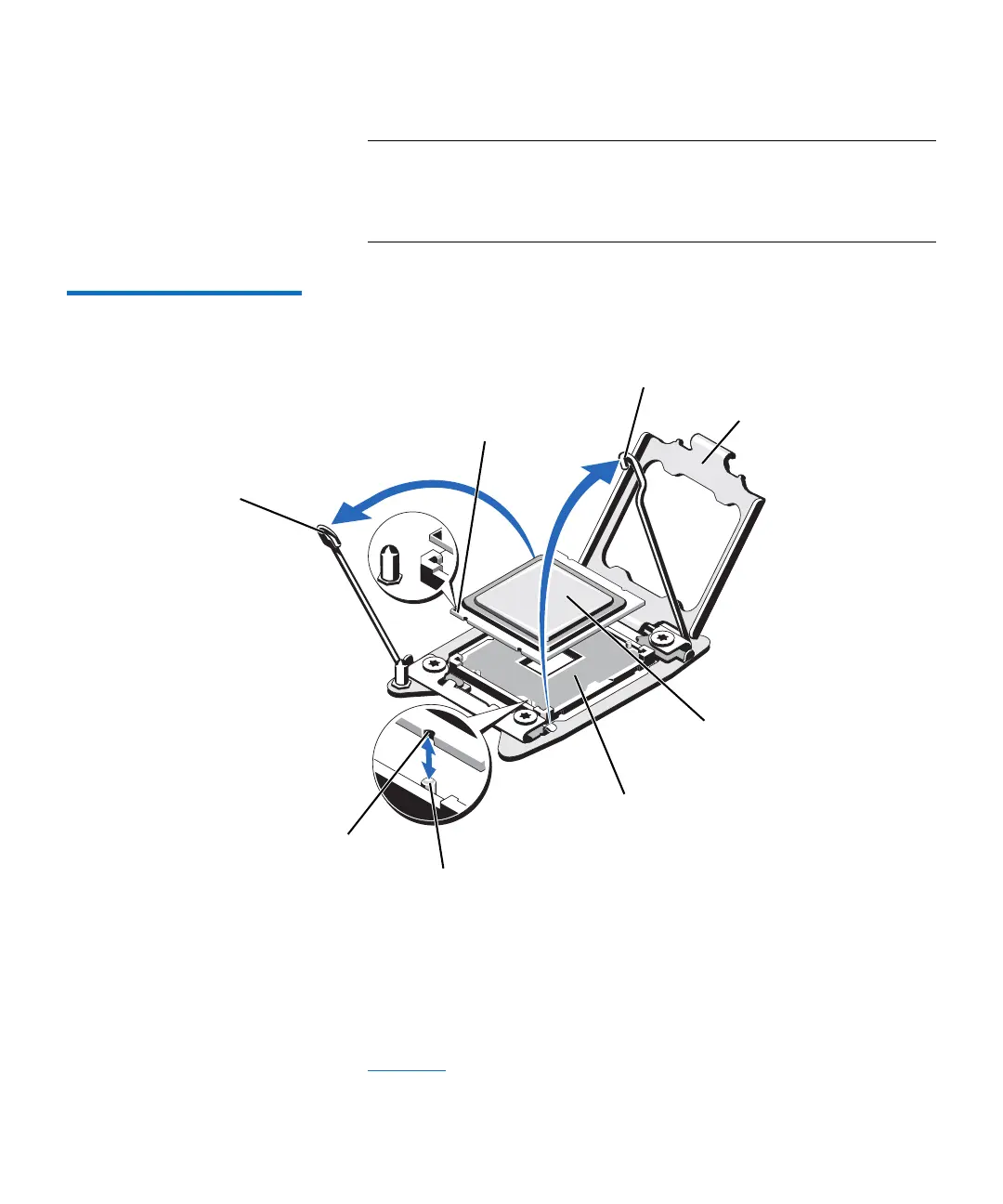

Figure 96 Removing and
Installing a Processor
Installing a Replacement Processor and Heatsink
To install the replacement processor and heatsink in the DXi6900 G1
Node:
1 Align the processor with the socket keys on the ZIF socket (see
Figure 96).
Processor socket
release lever
Pin 1 indicator
Processor socket
release lever
Processor shield
Processor
ZIF socket
Socket keys
Notches in processor
