Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
Quantum DXi6900 G1 User’s Guide 115

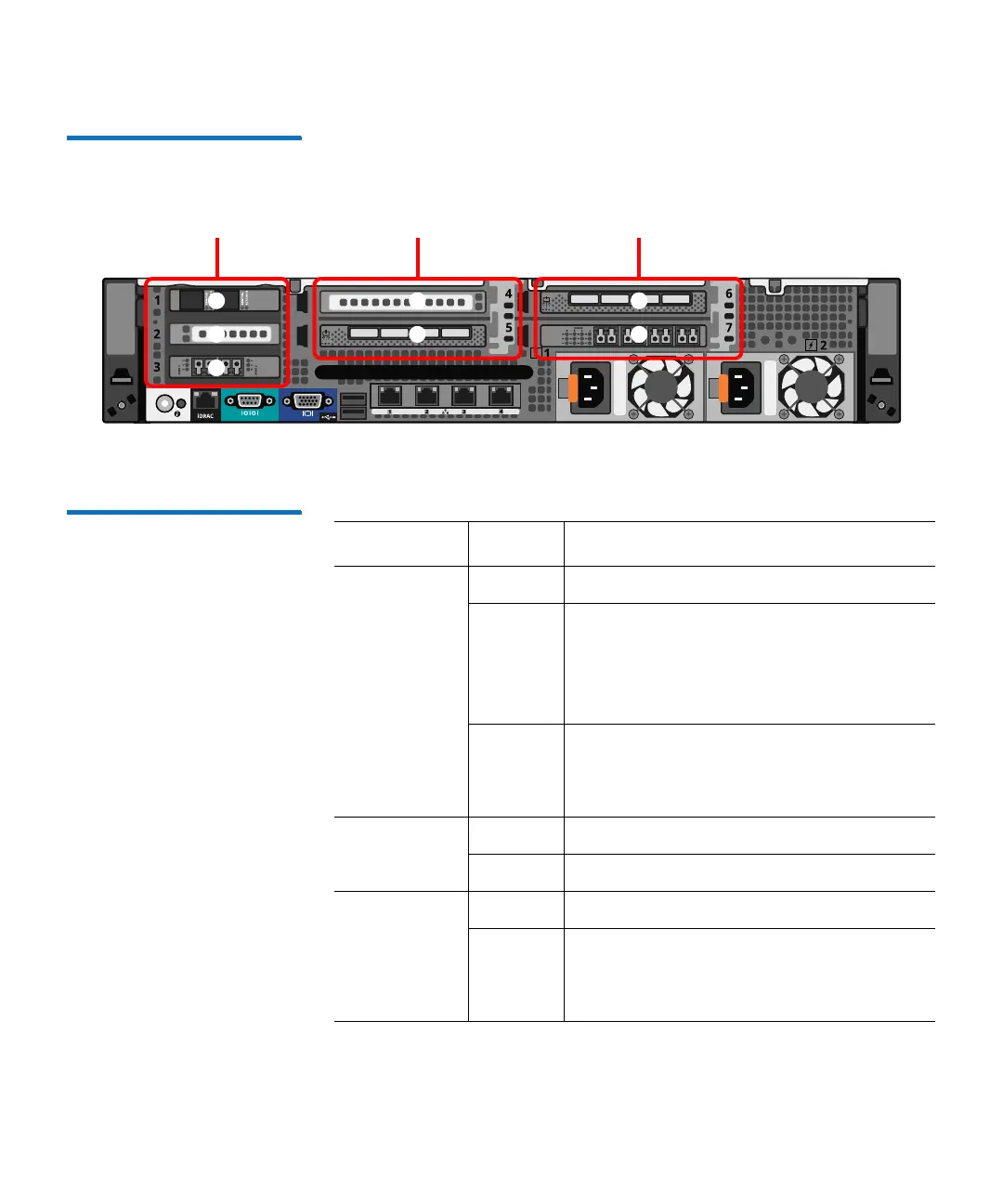

Figure 64 DXi6900 G1 Node
Expansion Card Locations
Table 14 DXi6900 G1 Node
Expansion Card Locations
Expansion card riser 1 Expansion card riser 2 Expansion card riser 3
Node rear
1
2
3
4
5
6
7
Riser Slot Expansion Card
1 1 Dual port 10 GbE card
2 One of the following options:
•No card
• Dual port 10 GbE card
• Quad port 1 GbE card
3 One of the following options:
• Dual port 8 Gb Fibre Channel card
• Dual port 16 Gb Fibre Channel card
2 4 Optional dual port 10 GBase-T card
5 Quad port 6 Gb SAS card
3 6 Quad port 6 Gb SAS card
7 One of the following options:
• Quad port 8 Gb Fibre Channel card
• Dual port 16 Gb Fibre Channel card
