Chapter 1: Basic Operations
DXi6900 G1 Node
Quantum DXi6900 G1 User’s Guide 7
optical switch/SFP documentation for additional information on
optical cable requirements.
• 10 GbE Twinax cable - Quantum recommends using the approved
5 meter Twinax cable type that is shipped with the DXi6900 G1
system. This cable is compatible with Cisco 5000 Series Data Center
Class switches.
Note: The 10 GbE Copper (Twinax) cable options that Quantum
provides do not support all switches. Please note the
supported switches during the purchase-configuration
process, and if the Twinax cables supplied by Quantum are
not compatible with your switch, then you will need to
provide your own compatible Twinax cables from your
switch vendor. Be sure to have these available before the
system installation takes place.

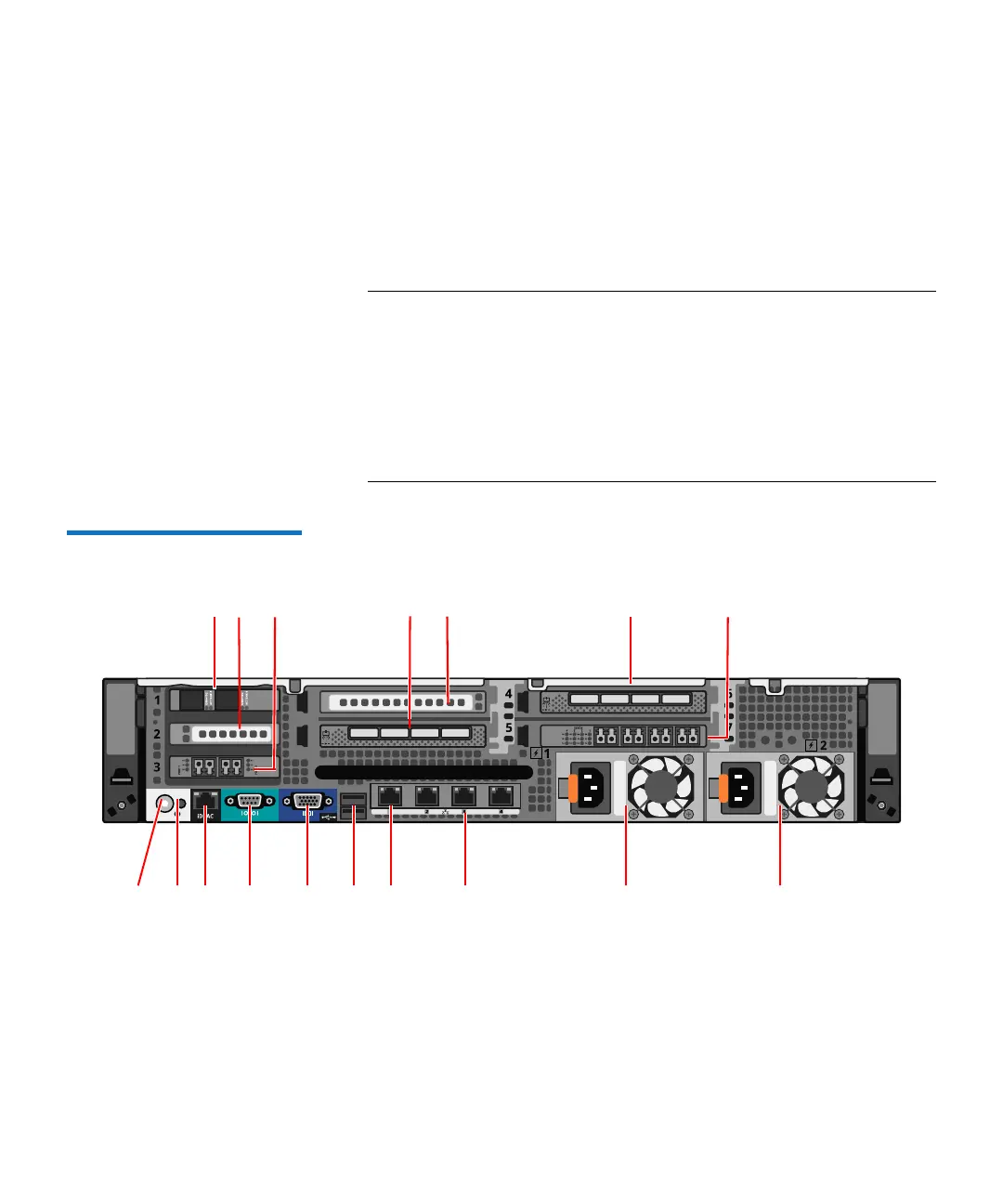

Figure 5 Node Rear View -
DXi6900 G1
13 4 6
10
98 11 12 13 16 171514
7
2 5
