Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
124 Quantum DXi6900 G1 User’s Guide

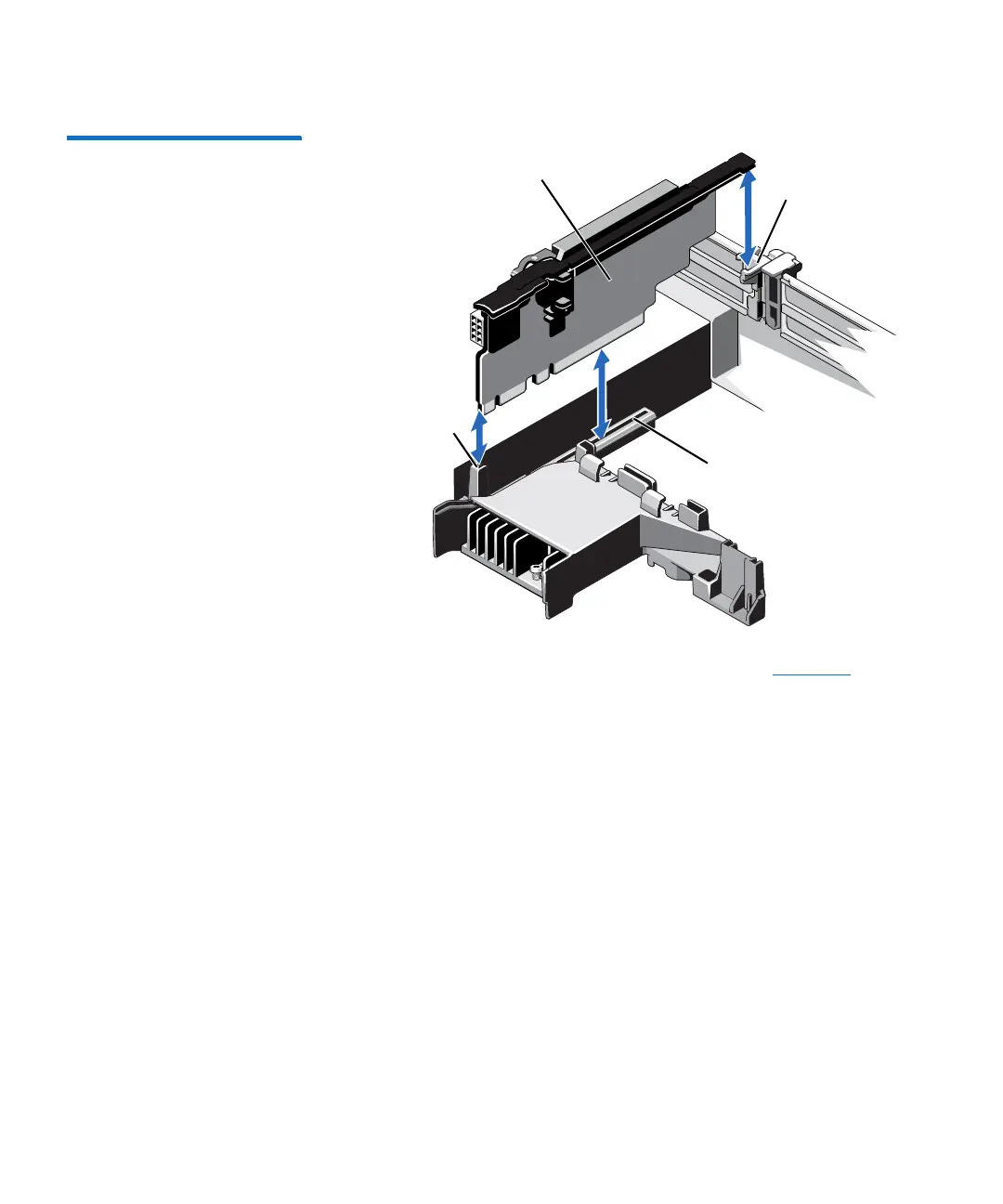

Figure 69 Removing and
Installing the Expansion Card
Riser 3
5 Lift the expansion card latch out of the slot (see Figure 70).
6 Grasp the expansion card by its edges, and remove it from the
expansion card connector.
Expansion card riser 3
Back riser guide
Front riser guide
Expansion card riser 3
connector
