Chapter 3: FRU Removal and Replacement Procedures
Replacing an Array Module BBU
Quantum DXi6900 G1 User’s Guide 211

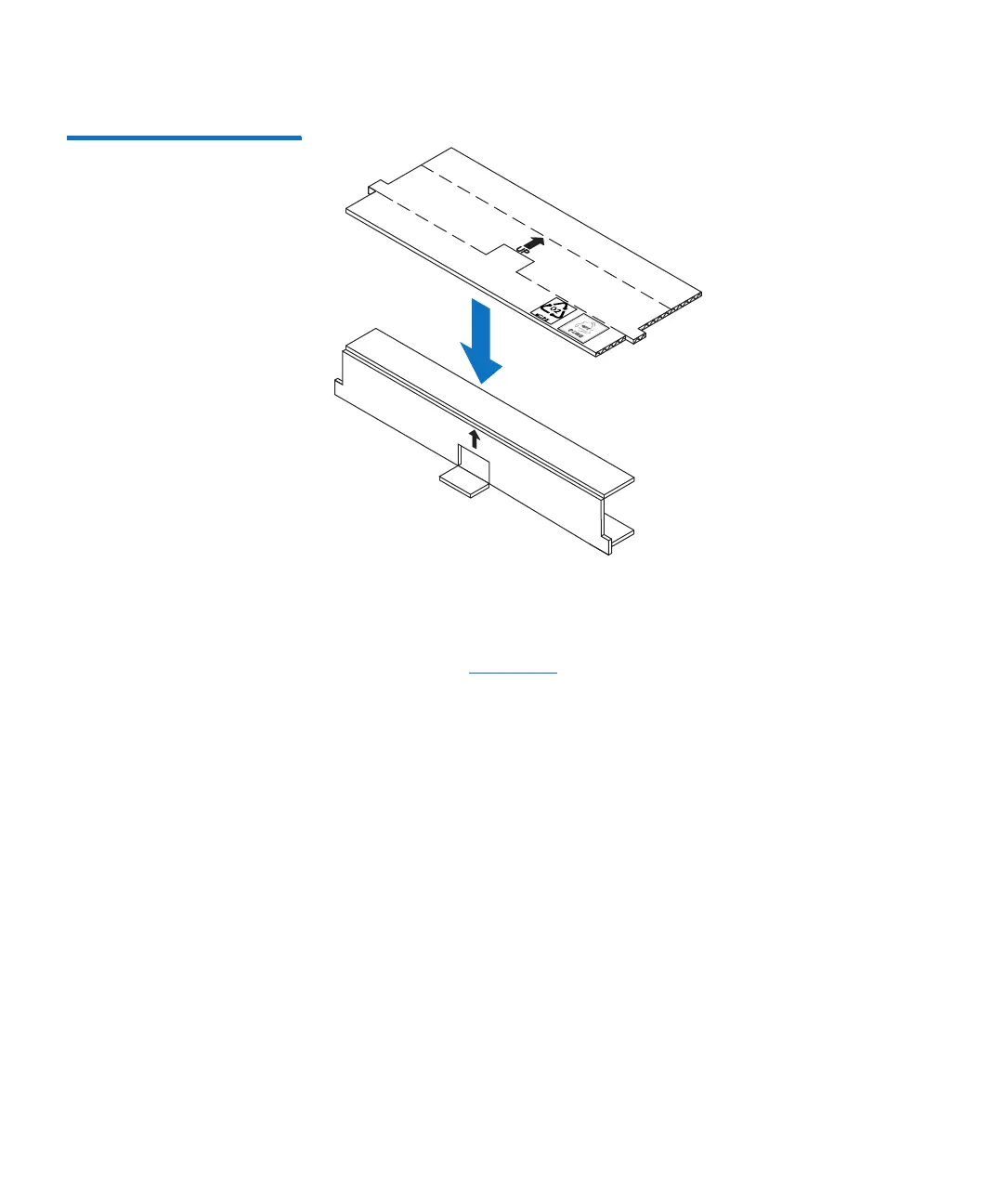

Figure 133 Controller Air
Blocker
2 Disconnect the SAS cables from the controller with the failed BBU.
3 Pull the handles out and toward the sides of the controller canister,
and pull the Array module controller out of the Array module
chassis (see
Figure 134).
