Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
120 Quantum DXi6900 G1 User’s Guide

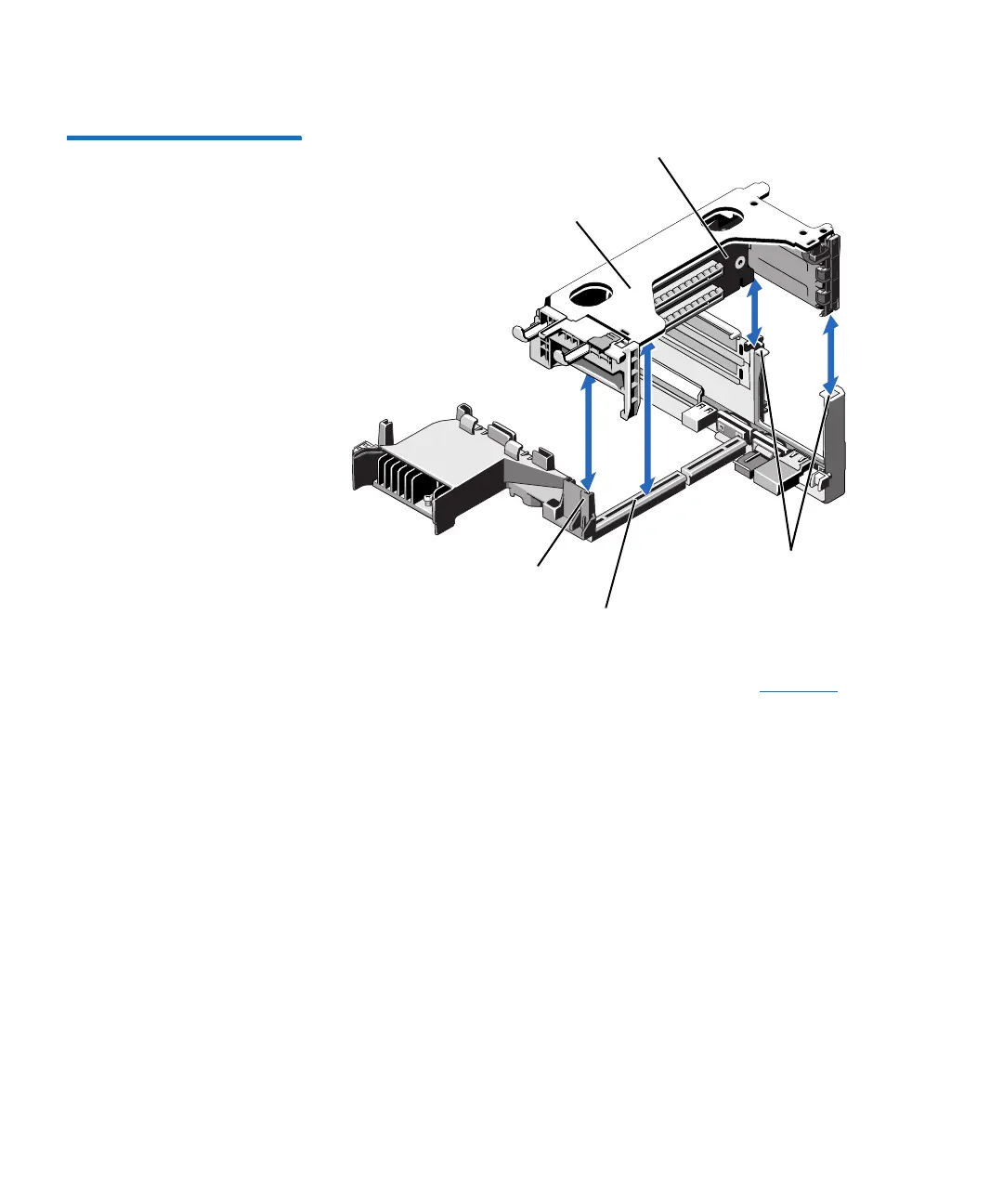

Figure 66 Removing and
Installing the Expansion Card
Riser 1
5 Press tab A and rotate the latch clockwise (see Figure 67).
6 Press tab B and rotate the latch down.
7 Remove the expansion card from the expansion card riser.
Expansion card riser 1 cage
Expansion card riser 1
Back riser guides
Front riser guide
Expansion card riser 1
connector
