Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing the Node Hard Drive Backplane
Quantum DXi6900 G1 User’s Guide 161
4 Remove all hard drives (see Replacing a Node Hard Drive on
page 90).
Caution: To prevent damage to the drives and backplane, you
must remove the hard drives from the system before
removing the backplane.
Caution: You must note the number of each hard drive and
temporarily label them before removal so that you can
replace them in the same locations.
5 Disconnect the SAS data, signal, and power cables from the
backplane (see
Figure 98 and Figure 99).
6 Press the release tabs and slide the backplane upward.

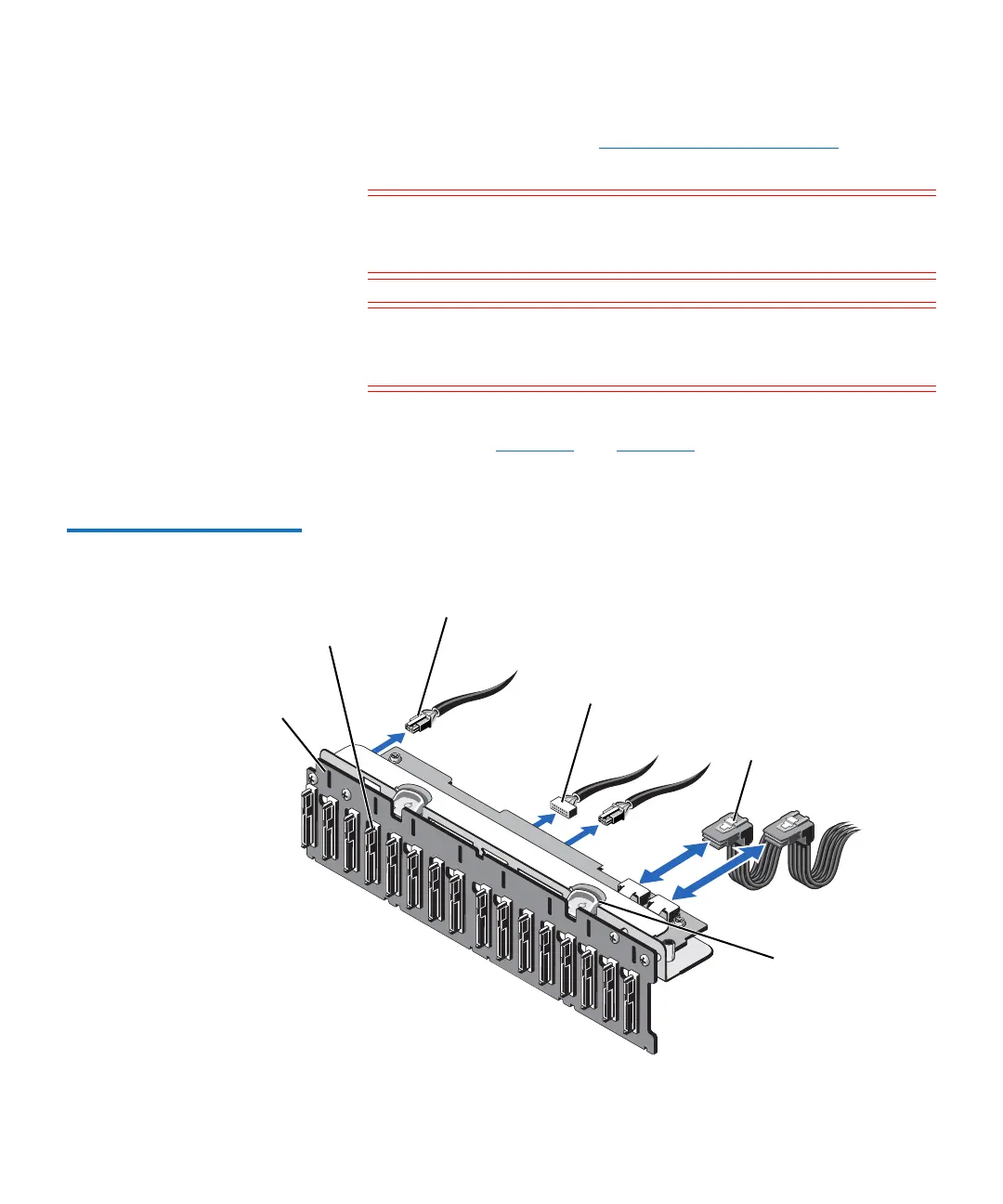

Figure 98 Removing and
Installing the Hard Drive
Backplane
Hard drive backplane
Hard drive backplane
connectors
Backplane power cables
Backplane signal cable
SAS Cables
Release tabs
